For other models with the same name, see AC50 (disambiguation).

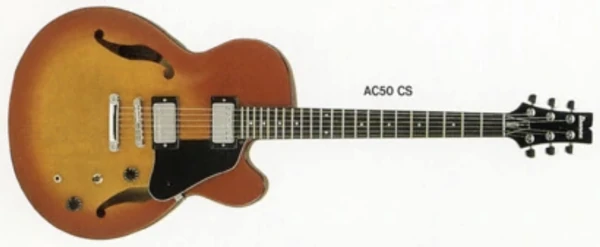

1993 AC50 CS
AC50 Cherry Sunburst (more images) Red copyright sprite

The AC50 is a hollow body electric guitar model introduced by Ibanez for 1990. It was made in South Korea by Yoojin as part of the Artstar series.

The AC50 features a full-size, full-hollow body with a single Venetian cutaway. It has an arched, maple top with ƒ holes and ivory binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and pearloid dot position markers. Components include a pair of Ibanez standard humbucking pickups with chrome covers, black plastic pickup rings, a Tune-o-matic style bridge, a stop tailpiece, a plastic nut, speed knobs, a black pickguard, and Ibanez tuning machines.

The AM80 is a related semi-hollow, double cutaway model.

The AC50 was discontinued after 1993. The model name was later used for a couple of acoustic guitar models.

Specifications

Specifications for AC50 (1990–1993)
Year(s) produced: 1990–1993
Sold in: Europe
Made in: South Korea
Finish(es): Black (BK) / Cherry Sunburst (CS)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15⅝"
  Depth: 65mm / 2.6"
Top:

  Material: Maple (laminated)
  Binding: Ivory

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
Standard Tune-o-matic
Tailpiece:
Stop tailpiece
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
Artstar AM
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearloid dot
Frets:
22 / medium
Nut:
Plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Standard humbucker (H)
Neck pickup:
Ibanez Standard humbucker (H)
Controls:
Master volume / master tone / 3-way toggle
Output jack:
¼" mono (face mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

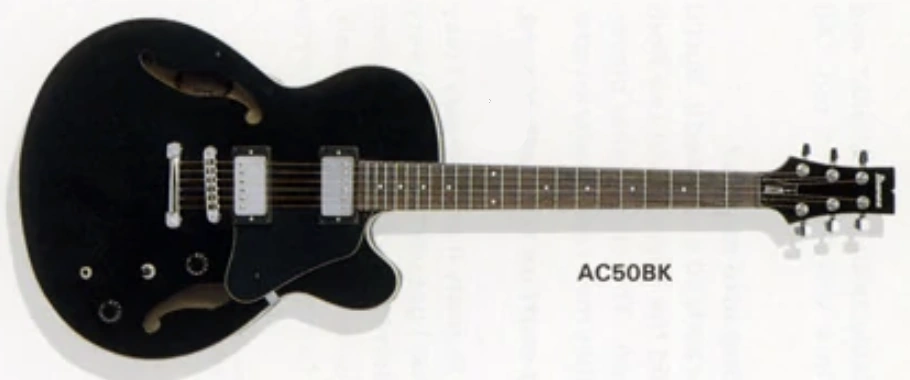

1992 AC50 BK
Black
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
