2014 AC400 DVS 1X 01
AC400 Dark Violin Sunburst High Gloss (more images) Red copyright sprite

The AC400 is an Artwood series acoustic guitar model introduced by Ibanez for 2014. It was made in China and was sold only in the USA.

The AC400 features a grand concert body shape with a soft Venetian cutaway constructed of a a solid Sitka spruce top with tortoise shell binding and gloss finish on mahogany back and sides with a satin finish. The soundhole is round with an simple black and white acrylic rosette and a red tortoise pickguard. It has a mahogany neck with a 20-fret rosewood fingerboard with small white dot position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut, and chrome Grover open gear tuning machines with ivory buttons.

The AC400CE is an acoustic-electric version with a cutaway body. The AW400 is a related model with a dreadnought body.

The AC400 was discontinued in 2016.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AC400
Name: AC400
Year(s) offered: 2014–2016
Sold in: USA
Made in: China
Price: MSRP: US$449.99 (2014)
Finishes: Dark Violin Sunburst High Gloss (DVS) / Light Violin Sunburst High Gloss (LVS) 2014–2015
Body
Body type:
Acoustic
Body shape:
Grand concert w/ soft Venetian cutaway
Dimensions:
  Length: 495mm/ 19½"
  Width: 387mm/ 15¼"
  Depth: 108mm/ 4¼"
Top:
  Material: Solid Sitka spruce
  Finish: Gloss
  Binding: Tortoise shell
Back/sides:
  Material: Mahogany
  Finish: Satin
Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
AC
Neck material:
1-piece mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
580mm/ 22.8"
Fingerboard:
Rosewood
Inlays:
Small white dot
Frets:
20
Nut:
Bone
Machine heads:
Grover open gear w/ ivory (plastic) buttons
Components
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dots)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Red tortoise
Strings (factory):
.010/.014/.022/.032 (D'Addario J-66 80/20 bronze)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finish

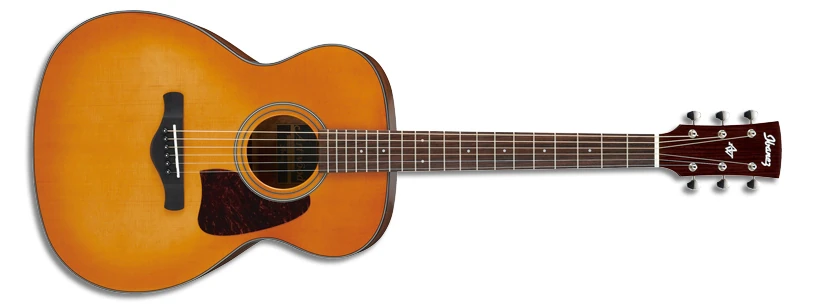

2014 AC400 LVS 1X 01
Light Violin Sunburst
