2015 AC3400JP NT 1X 01

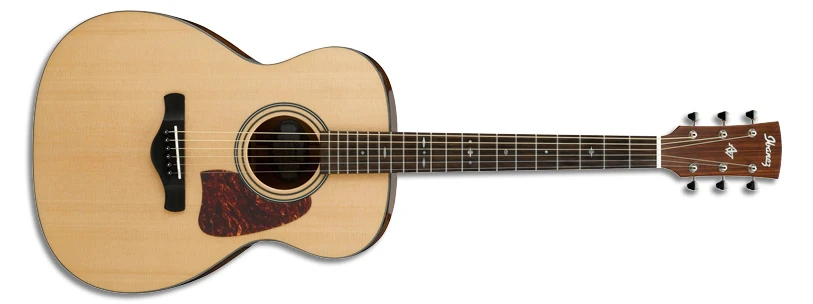

AC3400JP Natural High Gloss Red copyright sprite

The AC3400JP is an Artwood series acoustic guitar model introduced by Ibanez in mid-2015. It was produced in China and was solid exclusively in Japan.

The AC3400JP features a grand concert body shape with a solid Sitka spruce top with tortoiseshell binding on solid mahogany sides and two-piece back with a tortoiseshell backstrip inlay. The guitar is finished with a natural gloss. The soundhole is round with a simple black and white acrylic rosette and a tortoiseshell pickguard. It has a mahogany neck with a satin finish and a 20-fret rosewood fingerboard with special mother of pearl position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut, and chrome Grover open gear tuning machines with butterbean buttons.

The AC3440JP is a similar model with solid mahogany top. The AW3400 is a related model with a dreadnought body.

The AC3400JP was discontinued in 2016.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AC3400JP
Name: AC3400JP
Year(s) offered: 2015–2016
Sold in: Japan
Made in: China
Price: MSRP: ¥86,000 (2015) • SMAP: ¥64,500 (2015)
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Grand concert
Dimensions:
  Body length: 489mm/ 19¼"
  Width: 387mm/ 15¼"
  Depth: 108mm/ 4¼"
Top:
  Material: Solid Sitka spruce
  Finish: Gloss
  Binding: Tortoiseshell
Back/sides:
  Material: Solid mahogany
  Strip inlay: Tortoiseshell
  Finish: Gloss
Soundhole shape:
Round
Soundhole rosette:
Black & white acrylic
Neck
Neck profile:
AC
Neck material:
1-piece mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
635mm / 25"
Fingerboard:
Rosewood
Inlays:
Mother of pearl special design
Frets:
20
Nut:
Bone
Machine heads:
Grover open gear w/ butterbean buttons
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Components
Bridge:
Rosewood
Bridge pins:
Ibanez Advantage (black)
Saddle:
Bone compensated (11mm string spacing)
Hardware color:
Chrome
Pickguard:
Tortoiseshell
