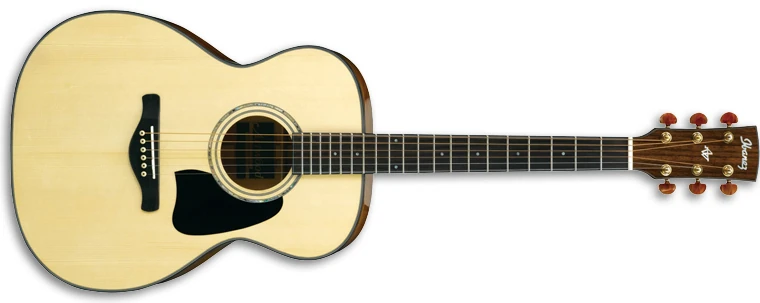

2010 AC3000 NT 41 01
AC3000 Natural High Gloss 2010 Red copyright sprite

The AC3000 is an Artwood series acoustic guitar model introduced by Ibanez in mid-2010. It was produced in China. It was also sold in a package with a lightweight acoustic case as the AC3000WC.

The AC3000 features a grand concert body shape with a solid Engelmann spruce top with rosewood binding on solid mahogany sides and two-piece back with a rosewood backstrip inlay and a natural high gloss finish. The soundhole is round with an abalone rosette and a black pickguard. It has a mahogany neck with a 20-fret rosewood fingerboard with rosewood binding and abalone dot position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut, and gold Grover tuning machines with brown pearl buttons.

For 2013 the body dimensions were altered slightly.

The AC2040 is a similar model with a solid mahogany top. The AW3000 is a similar model with a dreadnought body.

The AC3000 was discontinued after 2014.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AC3000 / AC3000WC
Name: AC3000 / AC3000WC
Year(s) offered: 2010–2014
Sold in: Americas & Oceania 2013 / Europe 2010–2013 / Japan 2011–2014 / USA 2010–2013
Made in: China
Price: MSRP: US$749.99 w/ case (2010[1]–2011[2]) / US$899.99 w/ case (2012[3]–2013[4]) / JP¥63,000 (2011[5]–2013[6][7]) / JP¥73,000 (2014[8]
 • SMAP: €409.00 (2010 - Italy)[9] / €469.00 (2011)[10] / US$599.99 w/ case (2013)[4]
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 2010–2012: 470–489mm/ 18½–19¼"
                2013–2014: 495mm/ 19½"
  Width: 2010–2012: 375–381mm/ 14¾–15"
                2013–2014: 387mm/ 15¼"
  Depth: 2010–2012: 102–114mm/ 4–4½"
                2013–2014: 108mm/ 4¼"
Top:
  Material: Solid Engelmann spruce
  Finish: High gloss
  Binding: Rosewood
Back/sides:
  Material: Solid mahogany (two-piece)
  Strip inlay: Rosewood
  Finish: High gloss
Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
AW
Neck material:
1-piece mahogany
Neck joint:
Dovetail
Scale length:
634mm/ 25"
Fingerboard:
Rosewood w/ Rosewood binding
Inlays:
Abalone dot
Frets:
20
Nut:
Bone
Machine heads:
Grover w/ brown pearl buttons
Components
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage bridge pins (white w/ black dot)
Saddle:
Bone compensated
Hardware color:
Gold
Pickguard:
Black
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP16)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

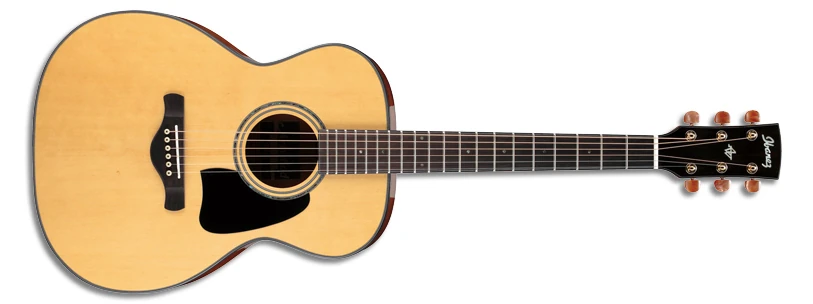

2013 AC3000 NT 41 02
AC3000 NT 2013
2010 AC3000WC NT
AC3000WC with lightweight gig bag
2010 AW3000NT back sides
Mahogany back and sides with rosewood binding
2013 AW3050 LG dovetail joint
Dovetail joint and rosewood binding and back strip
