2017 AC240L OPN 1X 02

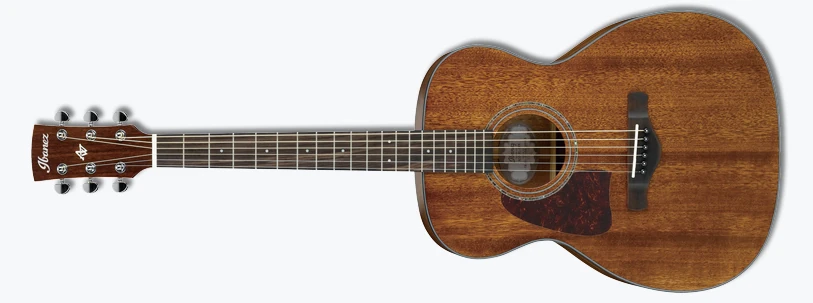

AC240L Open Pore Natural Red copyright sprite

The AC240L is a left-handed Artwood series acoustic guitar model introduced by Ibanez in 2012. It was made in China.

The AC240L features a grand concert body shape with a solid mahogany top on mahogany back and sides with an open pore finish. The soundhole is round with an abalone rosette. It has a mahogany neck with a 20-fret rosewood fingerboard with small white dot position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut, a red tortoise pickguard and chrome Grover die-cast tuning machines with half moon buttons.

The AC240 is a right-handed version. The AC340L is a related model with a Thermo Aged bridge, Ibanez tuners are different rosette.

The AC240L was first offered in 2012, but was shelved after one year in production. It was revived for 2016 and was again discontinued after 2017.

Specifications

Specifications for AC240L
Years: 2012, 2016–2017
Areas: Japan / USA
Made in: China
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Grand concert
Dimensions:
  Length: 489mm/ 19¼"
  Width: 387mm/ 15¼"
  Depth: 108mm/ 4¼"
Top:

  Material: Solid mahogany
  Finish: Open pore
  Binding: Black multi

Back/sides:

  Material: Mahogany
  Finish: Open pore

Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
AC
Neck material:
Mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm / 25⅝"
Fingerboard:
Rosewood
Inlays:
Small white dot
Frets:
20
Nut:
Bone
Machine heads:
Grover die-cast w/ half-moon buttons
Components
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (black)
Saddle:
Bone (compensated)
Hardware color:
Chrome
Pickguard:
Red tortoise
Strings (factory):
.012–.053 (D'Addario EXP16)
