2017 AC240E OPN 1X 03
AC240E Open Pore Natural Red copyright sprite

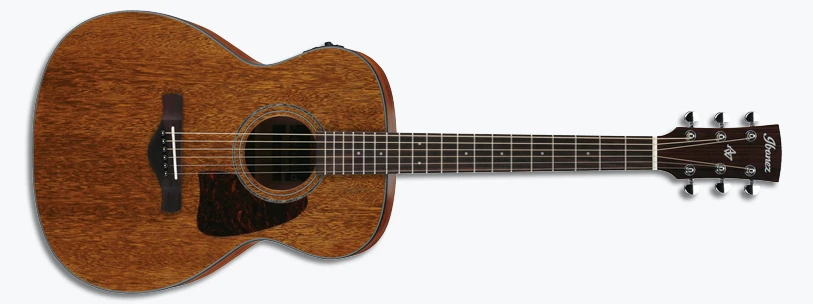

The AC240E is an Artwood series acoustic/electric guitar model introduced by Ibanez in late 2011. It was made in China.

The AC240E features a grand concert body shape with a solid mahogany top on mahogany back and sides with an open pore finish. The soundhole is round with an abalone rosette. It has a mahogany neck with a 20-fret rosewood fingerboard with small white dot position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut, a red tortoise pickguard and chrome Grover die-cast tuning machines with half moon buttons. Electronics consist of a Fishman Sonicore undersaddle pickup, Ibanez SST ShapeShifter preamp with onboard tuner, 9V battery and balanced XLR and ¼" outputs.

For 2016 the preamp was replaced with the Ibanez AEQ-SP2.

The AC240 is a traditional acoustic version.

The AC240E was discontinued in 2017.

Specifications

Specifications for AC240E
Years: 2011–2017
Areas: USA
Made in: China
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Grand concert
Dimensions:
  Length: 489mm/ 19¼"
  Width: 387mm/ 15¼"
  Depth: 108mm/ 4¼"
Top:

  Material: Solid mahogany
  Finish: Open pore
  Binding: Black multi

Back/sides:

  Material: Mahogany
  Finish: Open pore

Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
AC
Neck material:
Mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm / 25⅝"
Fingerboard:
Rosewood
Inlays:
Small white dot
Frets:
20
Nut:
Bone
Machine heads:
Grover die-cast w/ half-moon buttons
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
2011–2015: Ibanez SST ShapeShifter w/ onboard tuner
2016–2017: Ibanez AEQ-SP2 w/ onboard tuner
Output jack(s):
Balanced XLR and ¼"
Battery:
9V
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (black)
Saddle:
Bone (compensated)
Hardware color:
Chrome
Pickguard:
Red tortoise
Strings (factory):
.012–.053 (D'Addario EXP16)
