| A304 Transparent Blue (more images) |
|

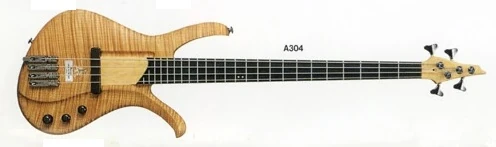

The A304 is a four string Affirma series solid body electric bass model introduced by Ibanez for 1992. It was produced in Japan.

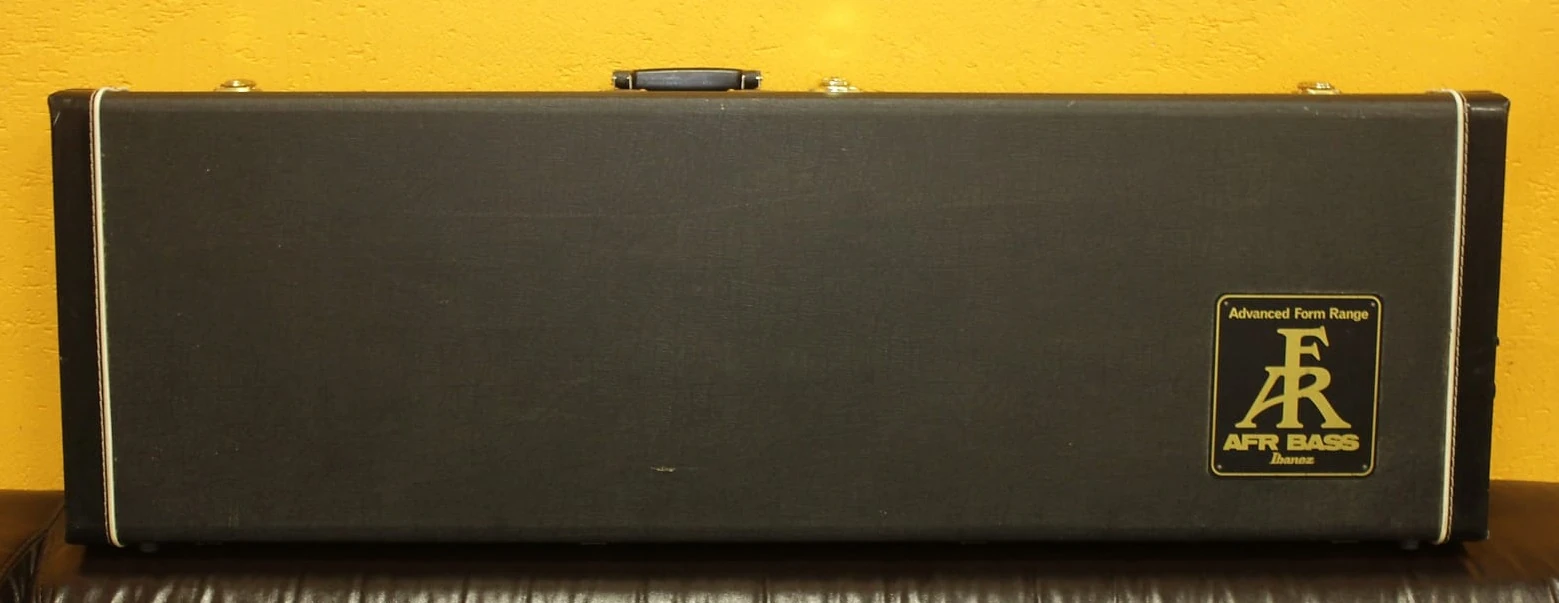

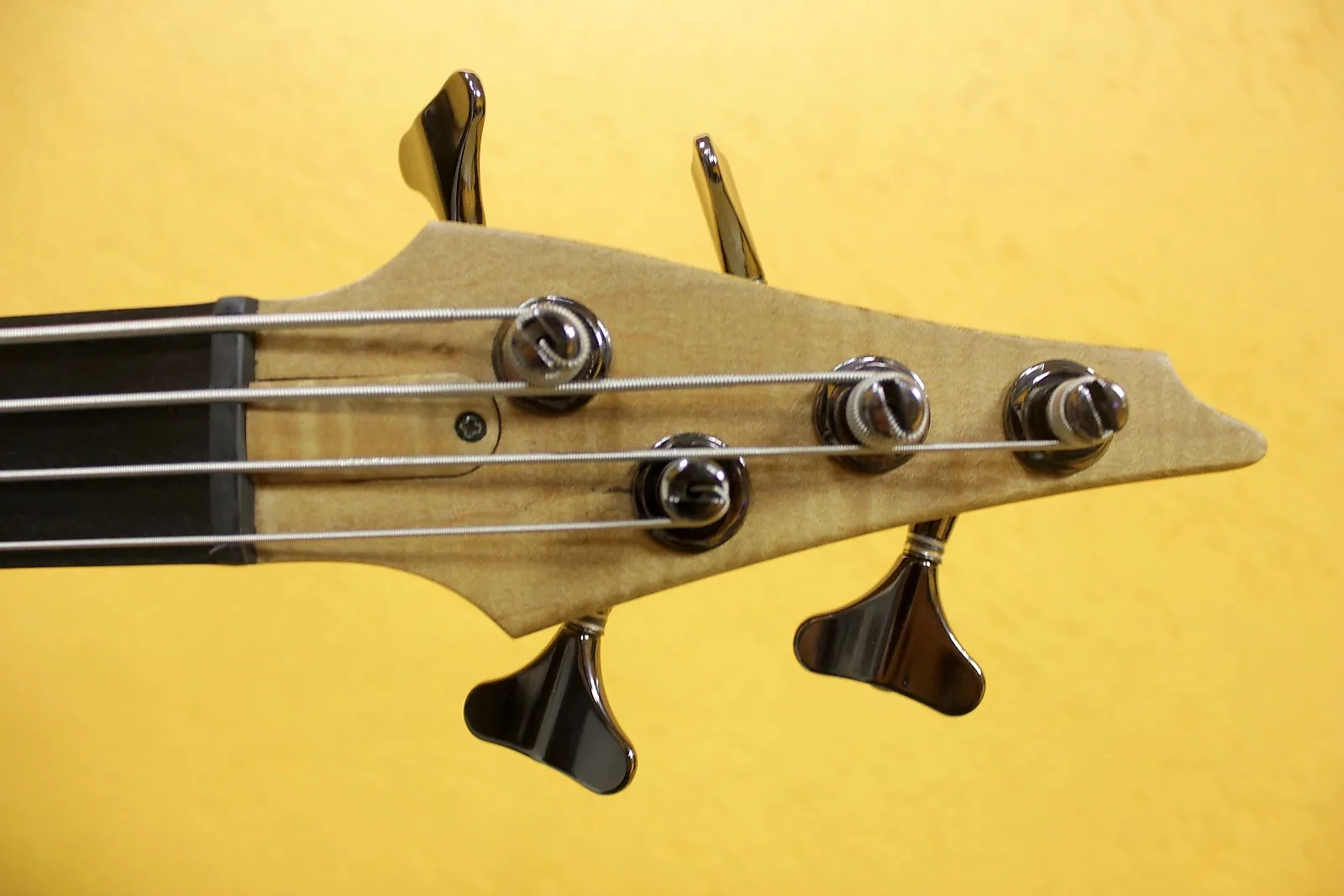

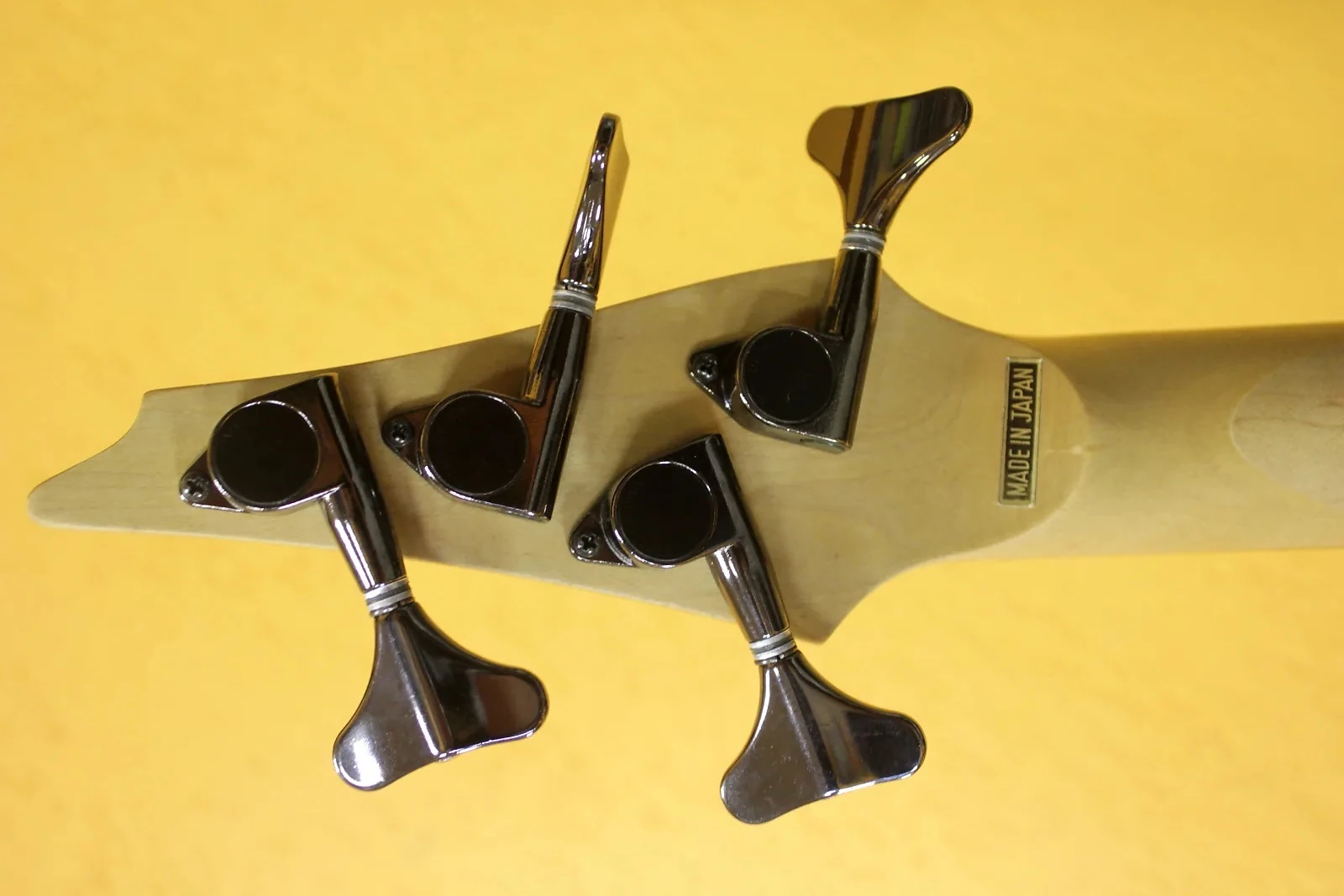

The A304 features half through neck construction with a flamed maple body attached to a maple neck with a 24-fret ebony fingerboard with offset abalone dot position markers at the twelfth fret. The body has a sculpted, asymmetrical double cutaway design by swiss luthier Rolf Spuler with distinctive, narrow, curving horns; the AFR logo is inlaid into the guitar top between the pickup and bridge. Components include a single AFR 4 special single-coil pickup mounted halfway between the bridge, an AFR 2-band EQ w/ piezo active tone control, a Mono-rail IV bridge with a D tuner and individual volume adjustable polyphonic piezo saddle pickups and 19mm string spacing, a barrel-style stereo output jack, a plastic nut and gotoh tuning machines. Comes with AFR hard case.

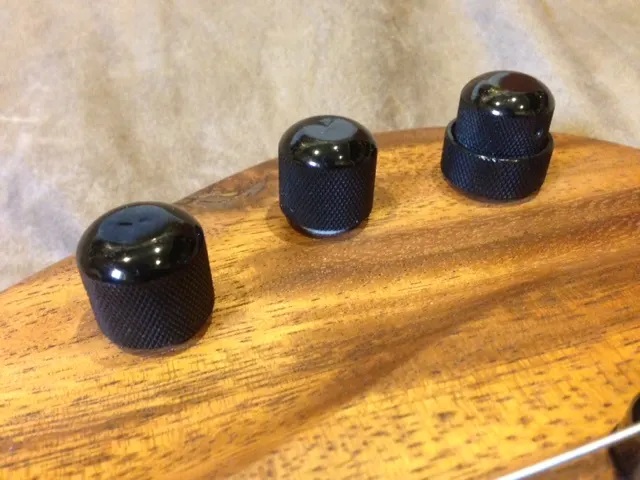

Controls consist of individual volumes for the magnetic and piezo pickups, a stacked 2-band EQ for the magnetic pick and an active tone control for the piezos. The gain of each individual piezo can be adjusted via trimpots accessible from the back of the instrument.
The A304F is a similar fret-less version. The A305 is a similar five string version.
The A304 was discontinued after 1994.
Specifications[]
| |||||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||
Images[]
Sources[]
- 1992 Japan catalog (p.16-17)
- 1992 Series catalog (p.7)
- 1993 Europe catalog (p.11)
- 1993 Japan catalog (p.5)
- 1994 Europe catalog (p.38)
- 1994 Japan catalog (p.24)
 |
An image for this article is missing! An image of the A304 Transparent Red (TR) is wanted for this article. You can help by finding, uploading and adding it! |
