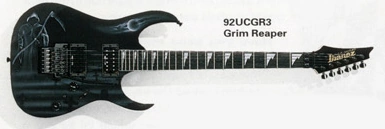

92UCGR3 Grim Reaper
92UCGR3 Grim Reaper Red copyright sprite

The 92UCGR3 is an RG series solid body electric guitar model introduced by Ibanez in 1992. It was produced in the United States as part of the Custom Graphics series of the USA Custom line. The Custom Graphics models feature bodies which are handpainted in California by American artist Dan Lawrence with a variety of images.

The 92UCGR3 features a basswood body bolted to a maple neck with a reverse headstock and a 24-fret bound rosewood fingerboard with sharktooth position markers. Components include dual DiMarzio made IBZ/USA humbucking pickups, a Lo-Pro Edge double locking tremolo bridge, a locking nut and Gotoh tuning machines.

This represents only the "stock" configuration, as customers could customize the guitar to their own desires. The customer could select the pickup configuration and pickups, the fretboard material and inlays, the headstock, the hardware color and more.

The 92UCGR3 was discontinued after 1992 along with the rest of the USA Custom line.

Specifications

Specifications for 92UCGR3
Model name: 92UCGR3
Year(s) produced: 1992
Sold in: Europe / USA
Made in: USA
Finish(es): Grim Reaper
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo
Hardware color:
Cosmo black
Neck
Neck type:
UCGR
Neck material:
1-piece quartersawn maple
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HH
Bridge pickup:
IBZ/USA F2 (H)
Neck pickup:
IBZ/USA F4 (H)
Controls:
Master volume / master tone / 5-way lever
