1974 752-12 BK

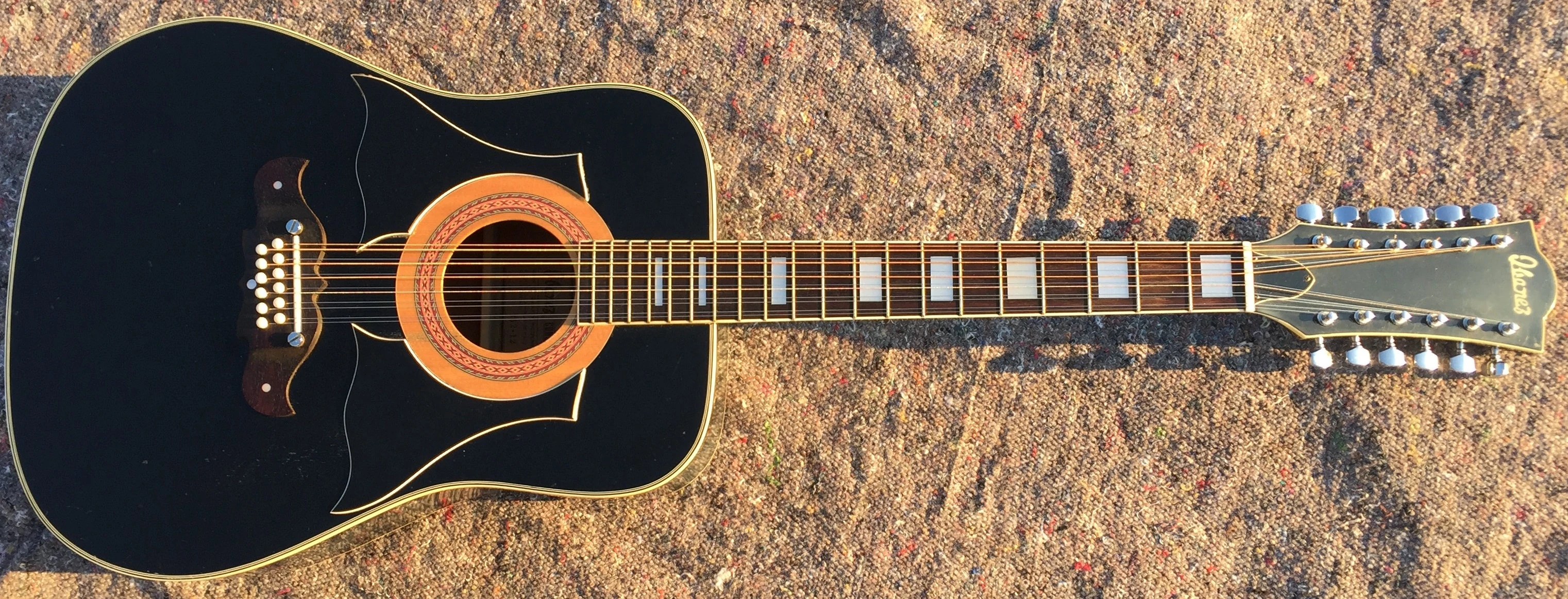

752/12 Jet Black (more images) Red copyright sprite

The 752/12 is a 12-string Concord series acoustic guitar model introduced by Ibanez in 1974. It was crafted in Japan.

The 752/12 features a dreadnought body shape with a fine grained spruce top with binding on mahogany sides and back with a gloss finish. The soundhole is round with a Multi-Stripe rosette with a black pickguard. It has a satin finished mahogany neck with a 21-fret rosewood fingerboard with pearloid block position markers with black side dots and matching headstock. Components include a rosewood bridge with adjustable saddle and white bridge pins, a plastic nut, and Ibanez closed gear chrome tuning machines.

The 752 is a similar six-string model.

The 752/12 was discontinued after 1978.

Specifications[]

Related content: Concord series | Models-icon
Specifications for 752/12
Name: 752/12
Year(s) offered: 1974-1978
Sold in: Europe / USA
Made in: Japan
Finishes: Jet Black
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 20"
  Width: 15 ⅝"
  Depth: 4 ⅞"
Top:
  Material: Spruce (fine grained)
  Finish: High gloss
  Binding: Black and white
Back/sides:
  Material: Mahogany (laminated)
  Finish: Gloss
Soundhole shape:
Round
Soundhole rosette:
Multi-Stripe
Neck
Neck material:
1-piece mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
Rosewood
Inlays:
Pearloid blocks w/ black side dots
Frets:
21
Nut:
Ivory plastic (43,5 mm)
Machine heads:
Ibanez Closed Gear
Strings (factory):
12-53
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Components
Bridge:
Rosewood w/ adjustable saddle
Bridge pins:
(white w/ black dots)
Saddle:
72mm x 2.9mm plastic (11mm string spacing)
Hardware color:
Chrome
Pickguard:
Black

Images[]

Additional details

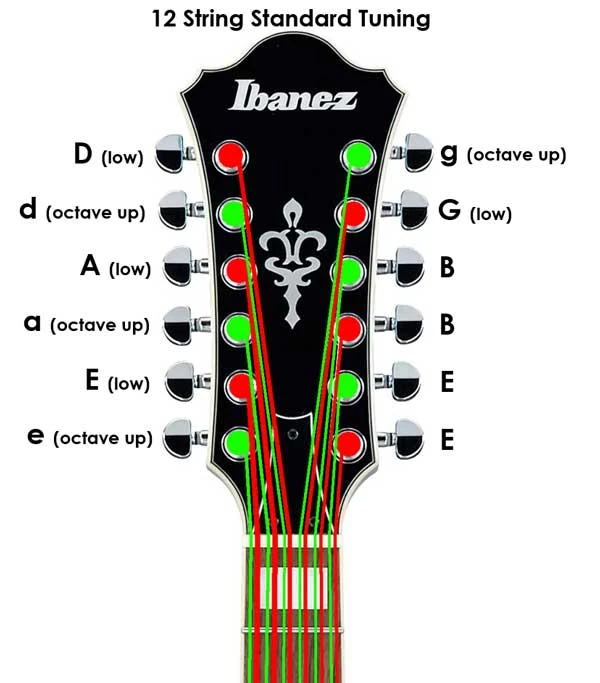

12-string-guitar-tuning-standard
Tuning
