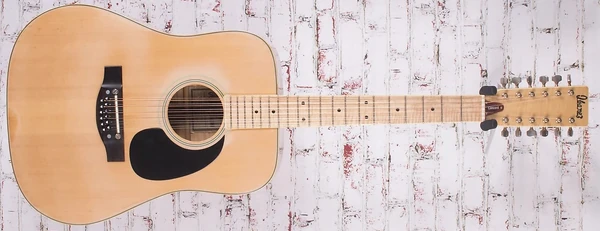

1978 699-12 NT
699/12 Natural (more images) Red copyright sprite

The 699/12 is a 12-string Concord series acoustic guitar model introduced by Ibanez for 1976. It was crafted in Japan.

The 699/12 features a dreadnought body with a fine grained spruce top on selected maple back and sides. The round soundhole is trimmed with black and white marquetry rosette and a black pickguard. The maple neck has a 21-fret rock maple fingerboard, black dot position markers with black side dots and a matching headstock. Components include a plastic saddle in an adjustable rosewood bridge, a plastic nut, and gold plated machine heads.

The 699 is a similar six-string model.

The 699/12 was discontinued after 1978.

Specifications[]

Related content: Concord series | Models-icon
Specifications for 693/12
Name: 693/12
Year(s) offered: 1976-1978
Sold in: Europe
Made in: Japan
Price: MSRP: US$:215.00 (1976)
Finishes: Natural (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 20"
  Width: 15 ⅝"
  Depth: 4 ⅞"
Top:
  Material: Spruce (fine grained)
  Finish: High gloss
  Binding: 5-ply black and white
Back/sides:
  Material: Maple (selected)
  Strip inlay: Fancy trimmed wood marquetry
  Finish: High gloss
Soundhole shape:
Round
Soundhole rosette:
Black and white
Neck
Neck material:
3-piece maple
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
Rock maple w/ Ivory binding
Inlays:
Black dot w/ black side dots
Frets:
21
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast
Components
Bridge:
Rosewood (adjustable) (11mm string spacing)
Bridge pins:
Black w/ white dots
Saddle:
72mm x 2.9mm plastic
Hardware color:
Gold plated
Pickguard:
Black
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

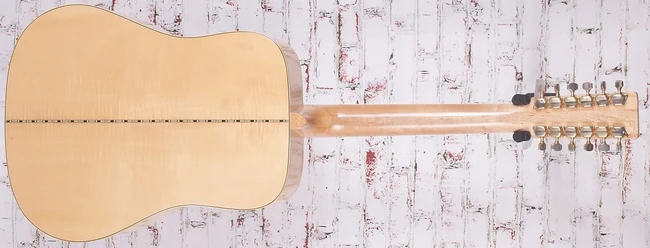

1978 699-12 NT rear
Ibanez 699/12-NT ( Rear: Selected Maple with fancy trimmed wood marquetry, a 3-piece maple neck and gold plated machine heads ) Red copyright sprite
Additional details

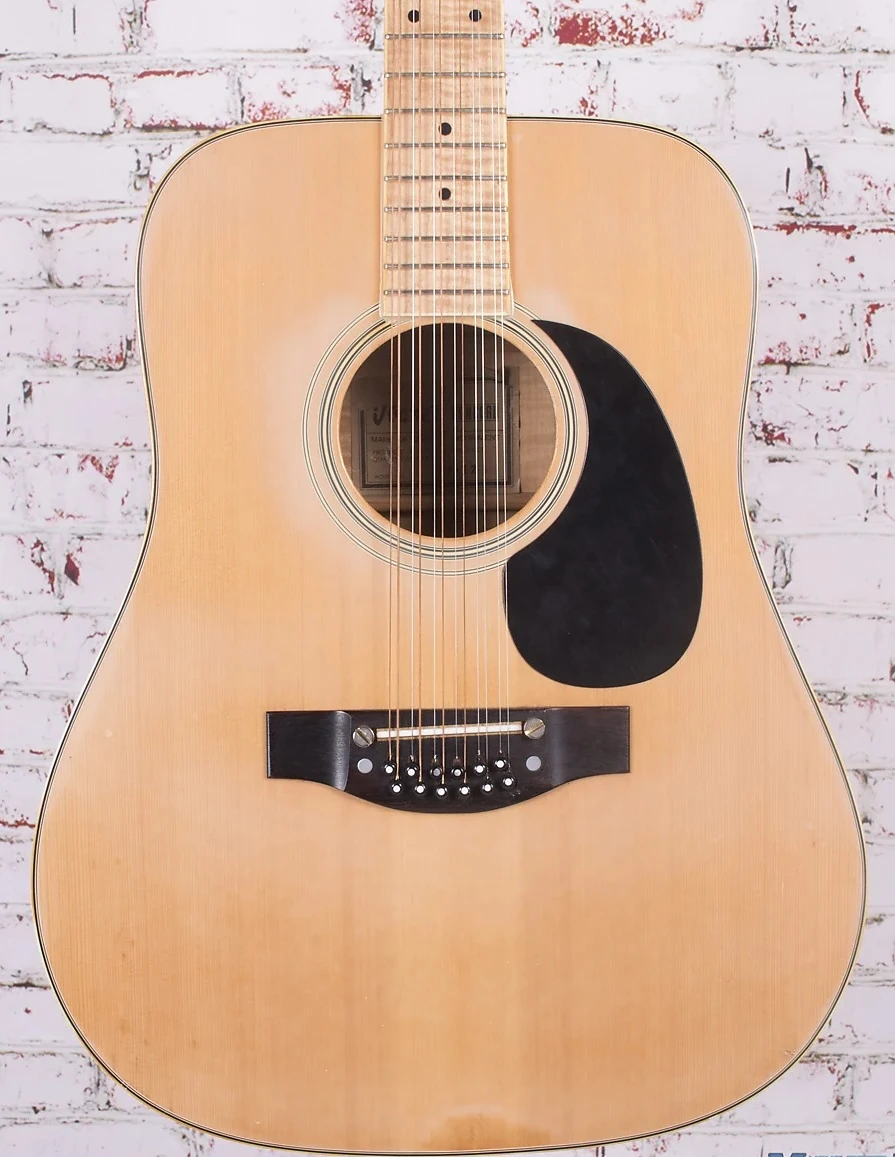

1978 699-12 NT front
Front of body
12-string-guitar-tuning-standard
Tuning
