The 540P is a Power series solid body electric guitar model introduced by Ibanez in 1987. It was part of the Roadstar Pro series which also included the 540R Radius and 540S Saber models. It is also referred to as the PRO540P.

The Power or P body is an offset double-cutaway shape with thin horns. It is reminiscent of the RG body, but the sides are tilted toward the top, making the top smaller than the back.

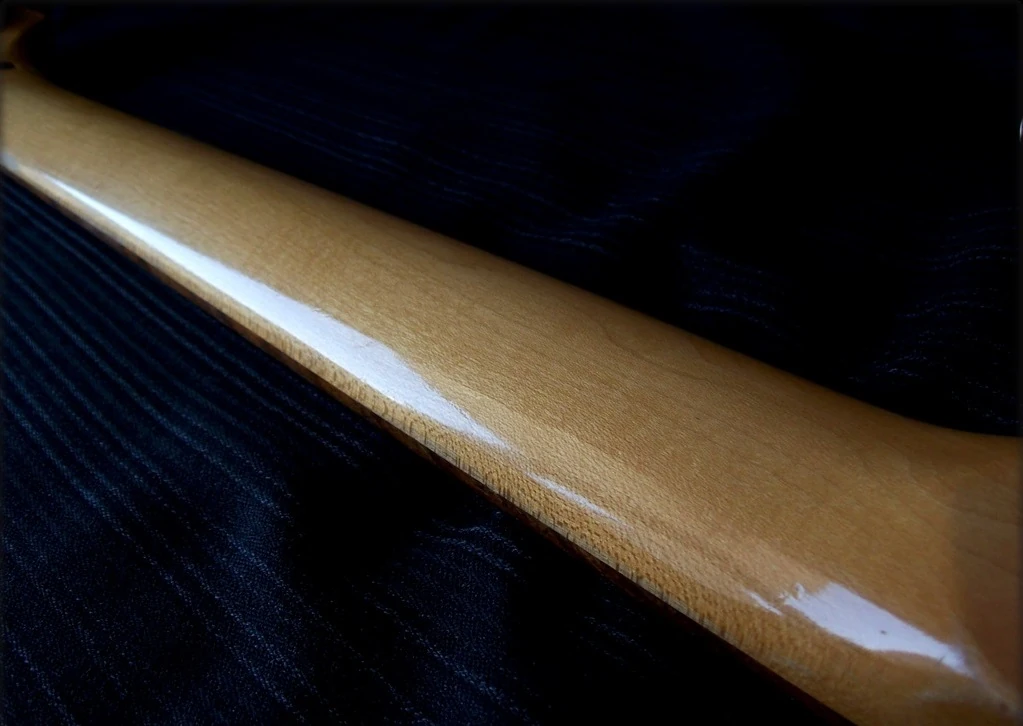

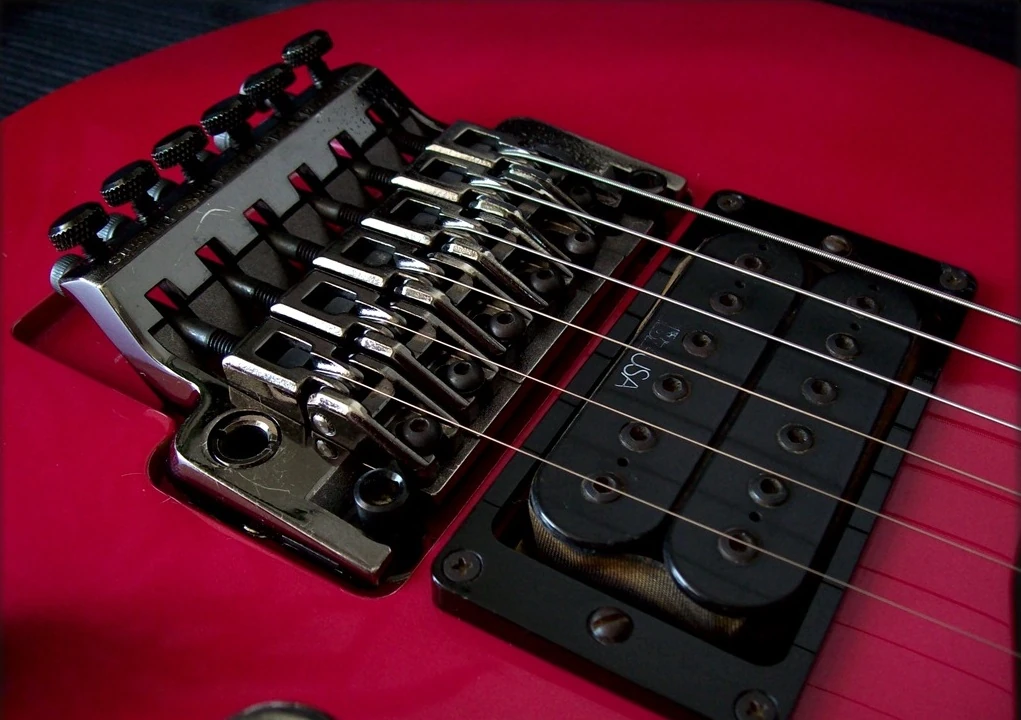

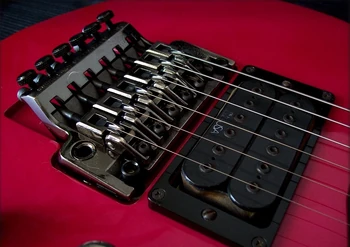

The 540P features an alder body bolted to a maple Wizard neck with a 22-fret rosewood fretboard with dot position markers. Components include DiMarzio built IBZ/USA pickups with a humbucker at the bridge and single-coils at the neck and middle positions, an Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

Instead of a typical 3-way or 5-way lever selector for the pickups, there is a mini-toggle to activate each pickup. In addition the bridge humbucker can be coil-tapped to get a single-coil tone. The 1988 model lacks a tone control.

The 540P is based on the first of two body shapes designed for the Power series. The 'reverse RG' styled Power body style was introduced in 1988 with the 540PⅡ-HH and 540PII-SH. The 540P was discontinued after 1988 in favor of these new models.


Specifications for 540P
Model name: 540P / PRO540P
Year(s) produced: 1987–1989
Sold in: Worldwide
Made in: Japan
Finish(es): BK (Black) / CK (Cosmo Black) 1987 / CO (Carotene Orange) 1988 / DG (Dark Grey) 1988 / MG (Magenta) 1987–1988 / VP (Violet Pearl) 1988 / WH (White) 1987–1988
Body type:
Solid body
Body material:
Neck joint:
Tilt Joint
Edge tremolo
Hardware color:
Cosmo black
Neck type:
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Fingerboard inlays:
Pearl dot
22 / jumbo

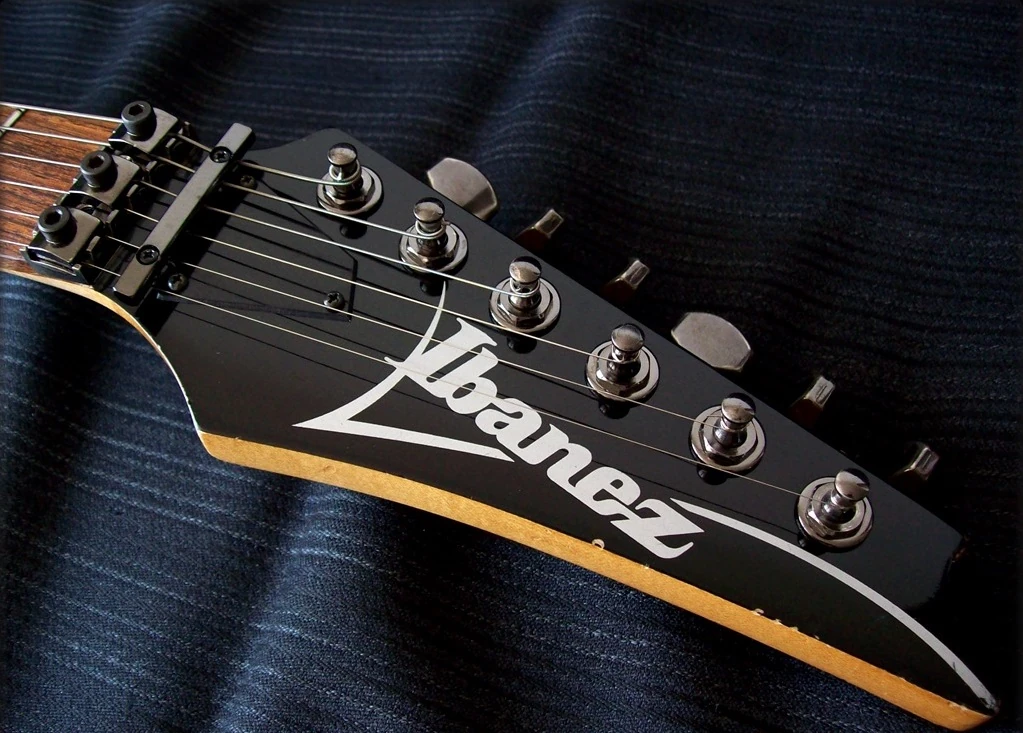

Top-Lok III
Machine heads:

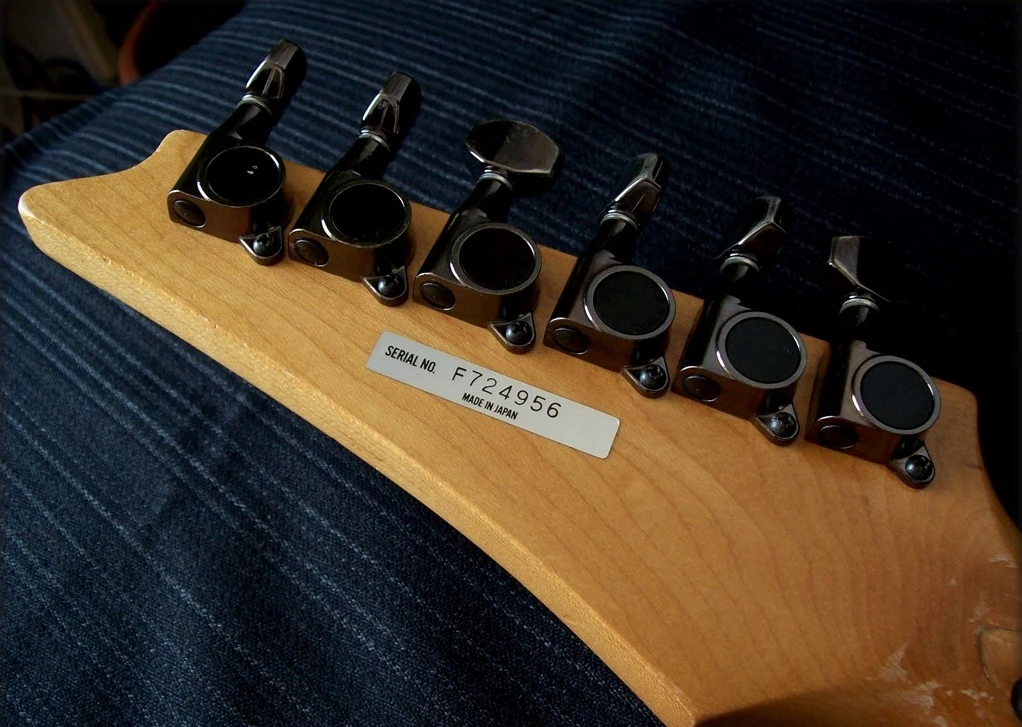

Gotoh SG38
Pickup configuration:
Bridge pickup:
Middle pickup:
Neck pickup:
1987, 1989: 1 volume / 1 tone (w/ push/pull coil-tap) / 3 pickup mini-toggles (on/off)
1988: 1 volume / 2 mini-toggles (on/off) for single coils / 3-way mini-toggle for humbucker (off/coil-tap/humbucking)


Other available finishes

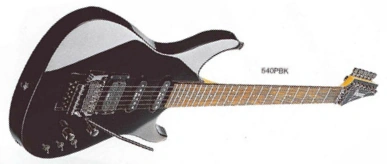

1989 540P BK.png
Cosmo Black
Carotene Orange
Dark Grey

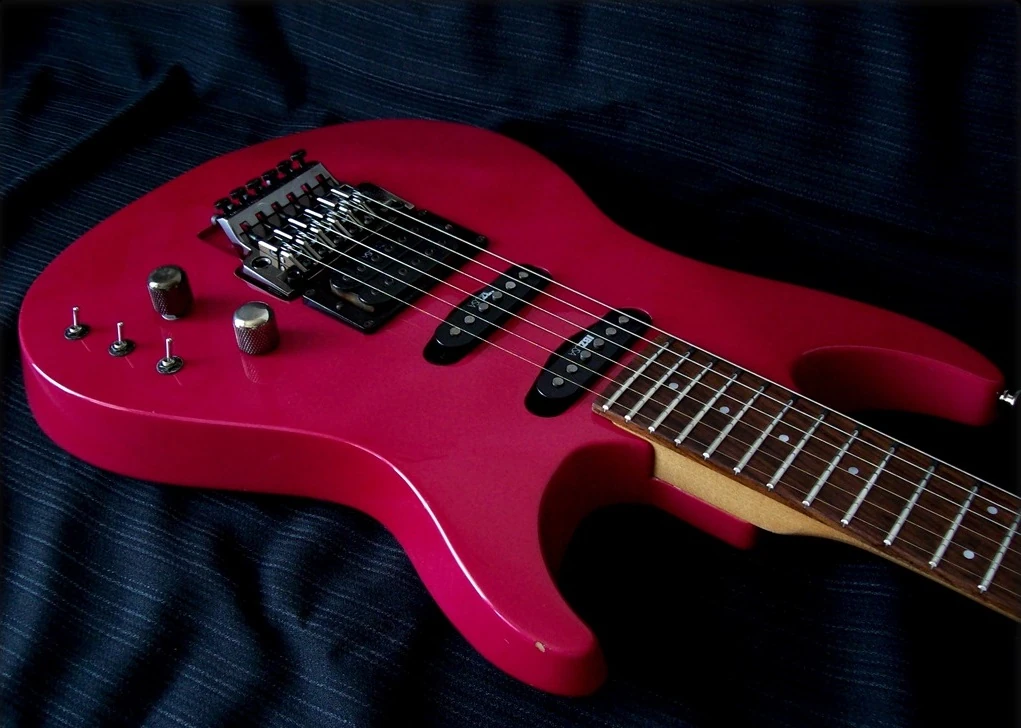

540P MG.jpg
Wimage.jpg An image for this article is missing!
An image of the 540P Cosmo Black (CK), Carotene Orange (CO), Dark Grey (DG) and White (WH) is wanted for this article. You can help by finding, uploading and adding it!
