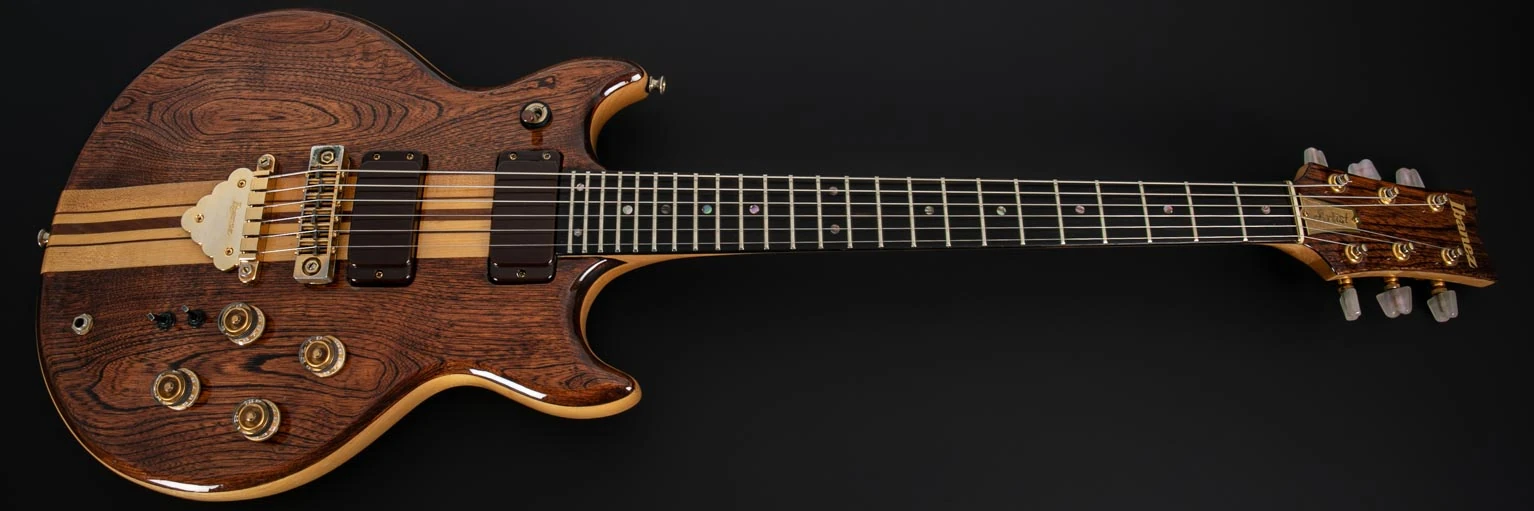

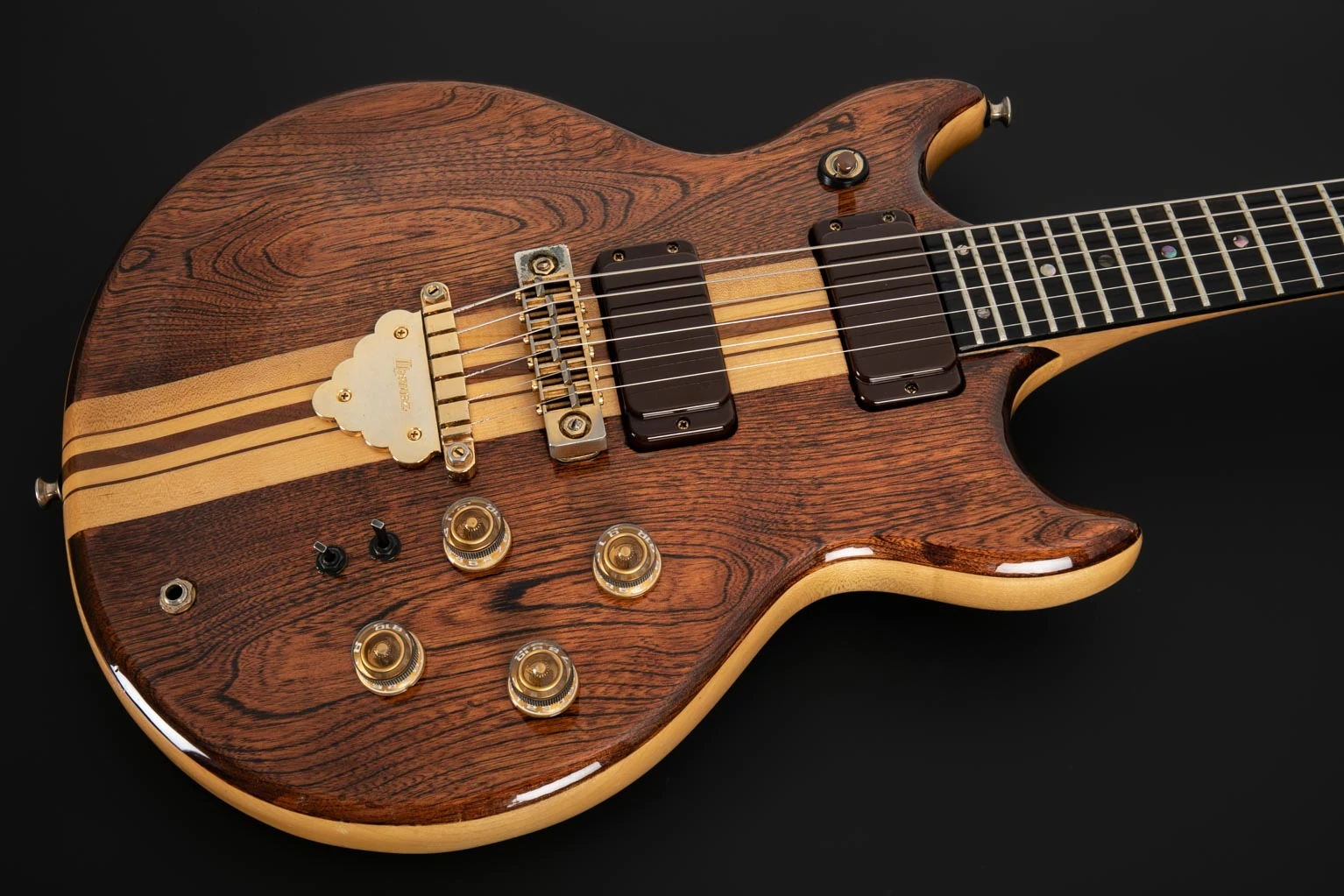

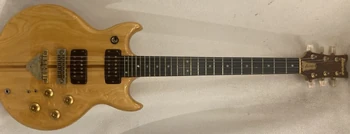

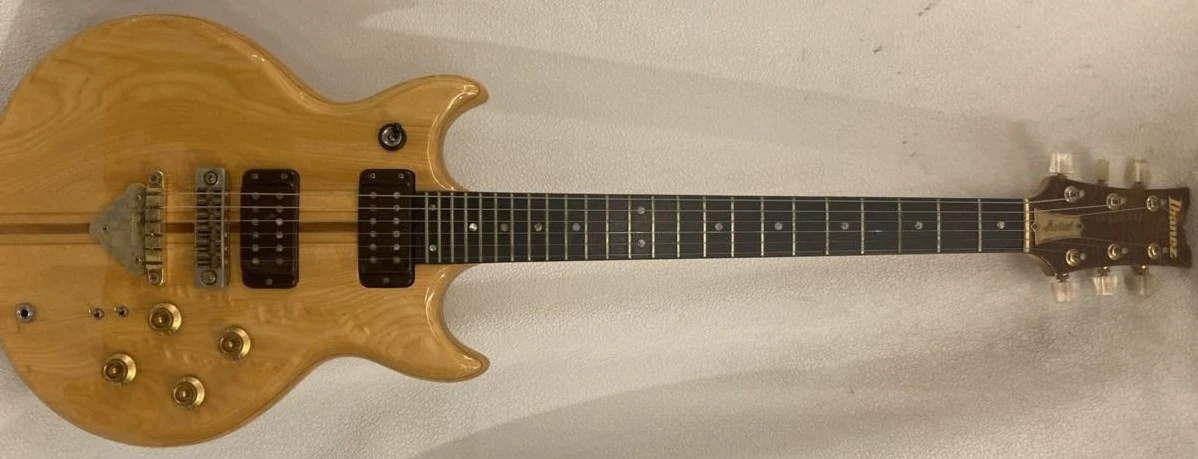

The 2710 is an Artist series solid body electric guitar model introduced by Ibanez for 1978. It was made in Japan by FujiGen.

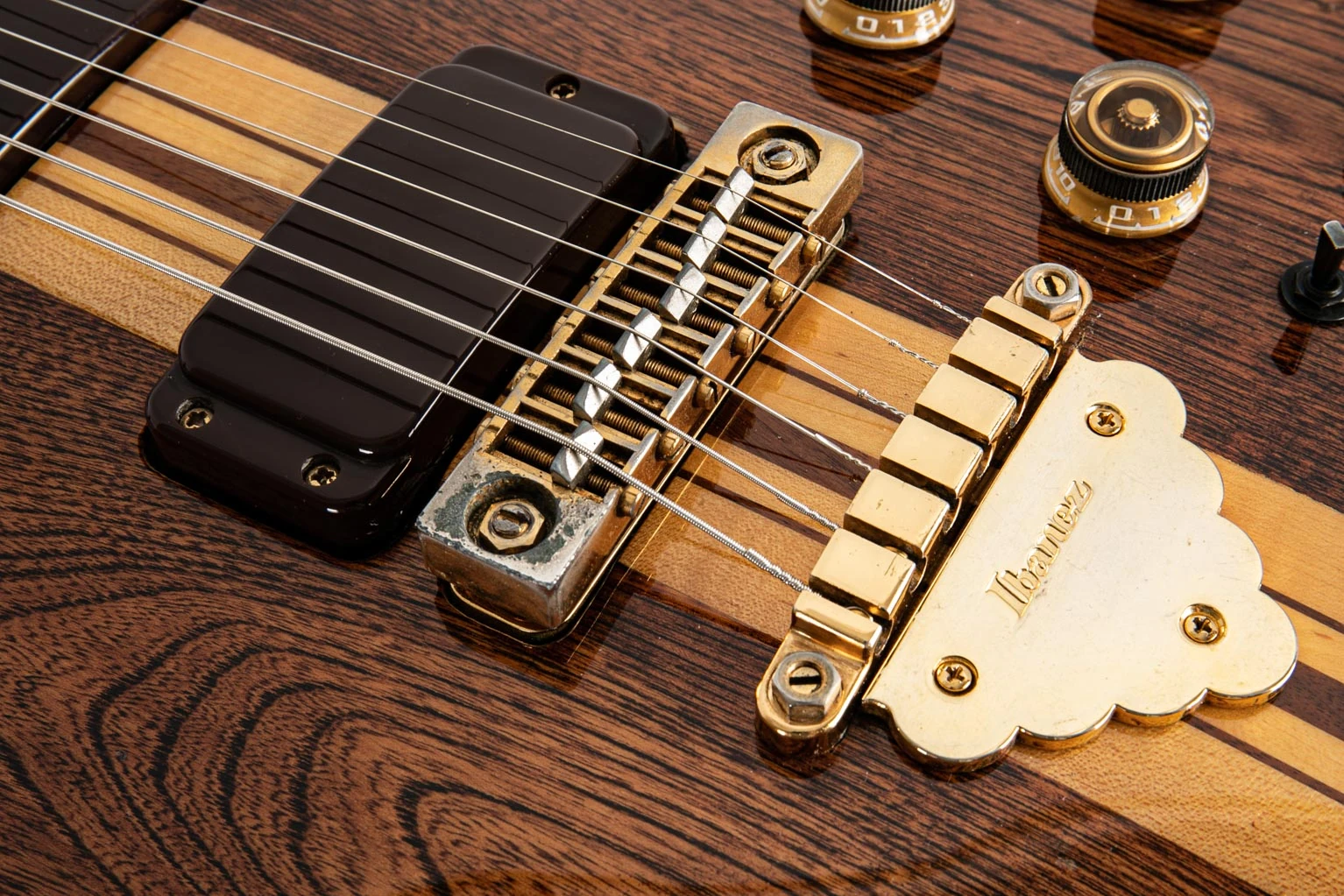

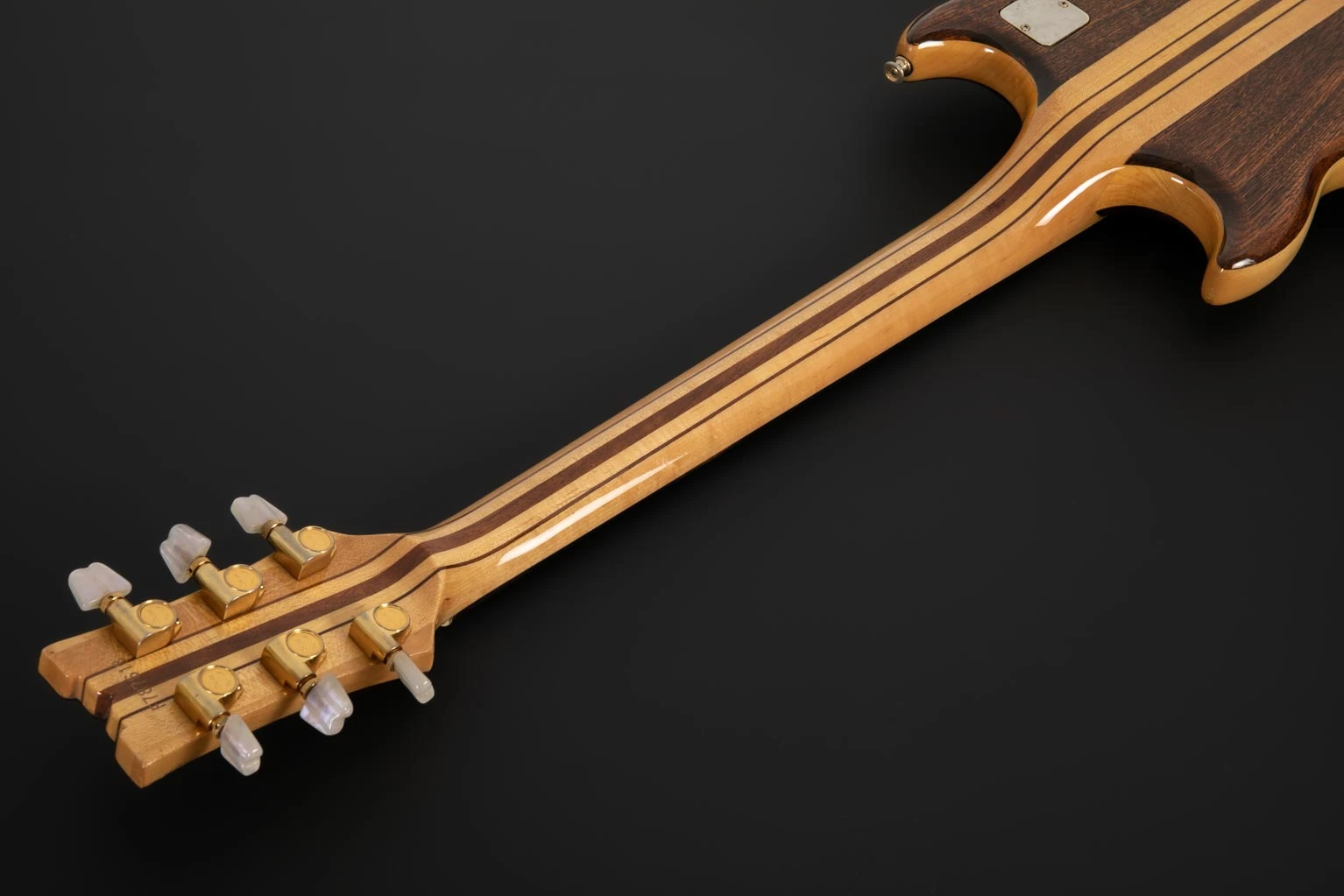

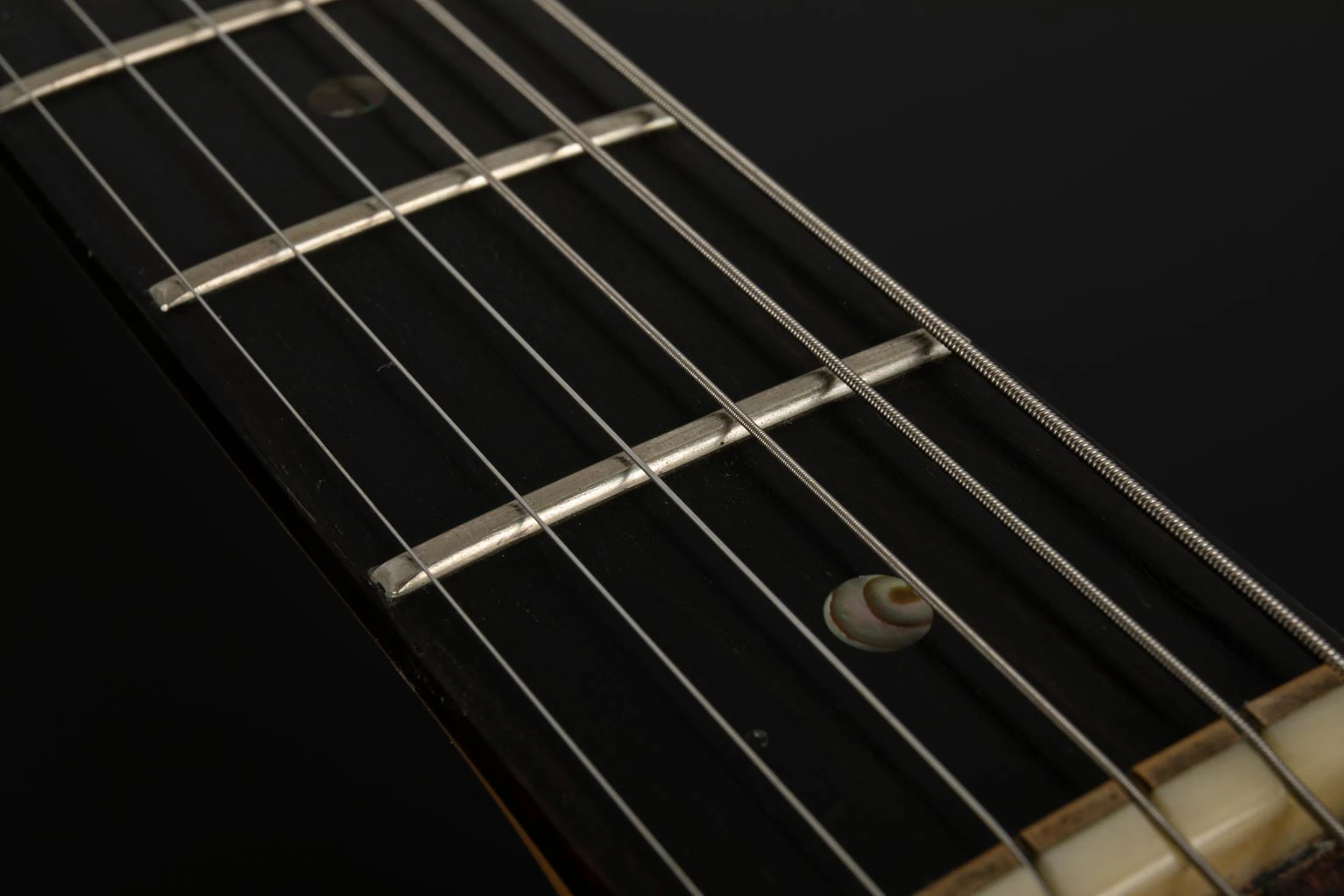

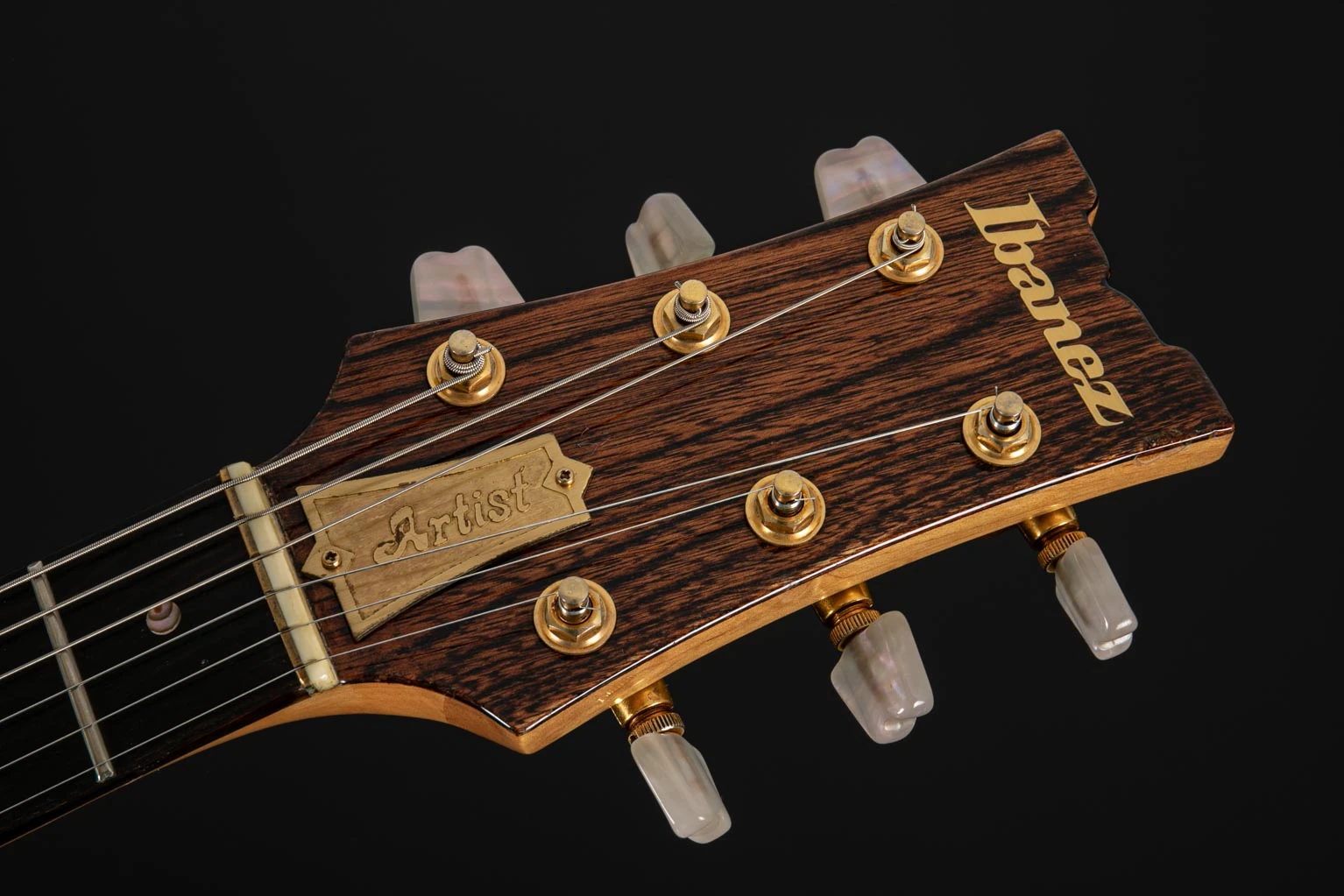

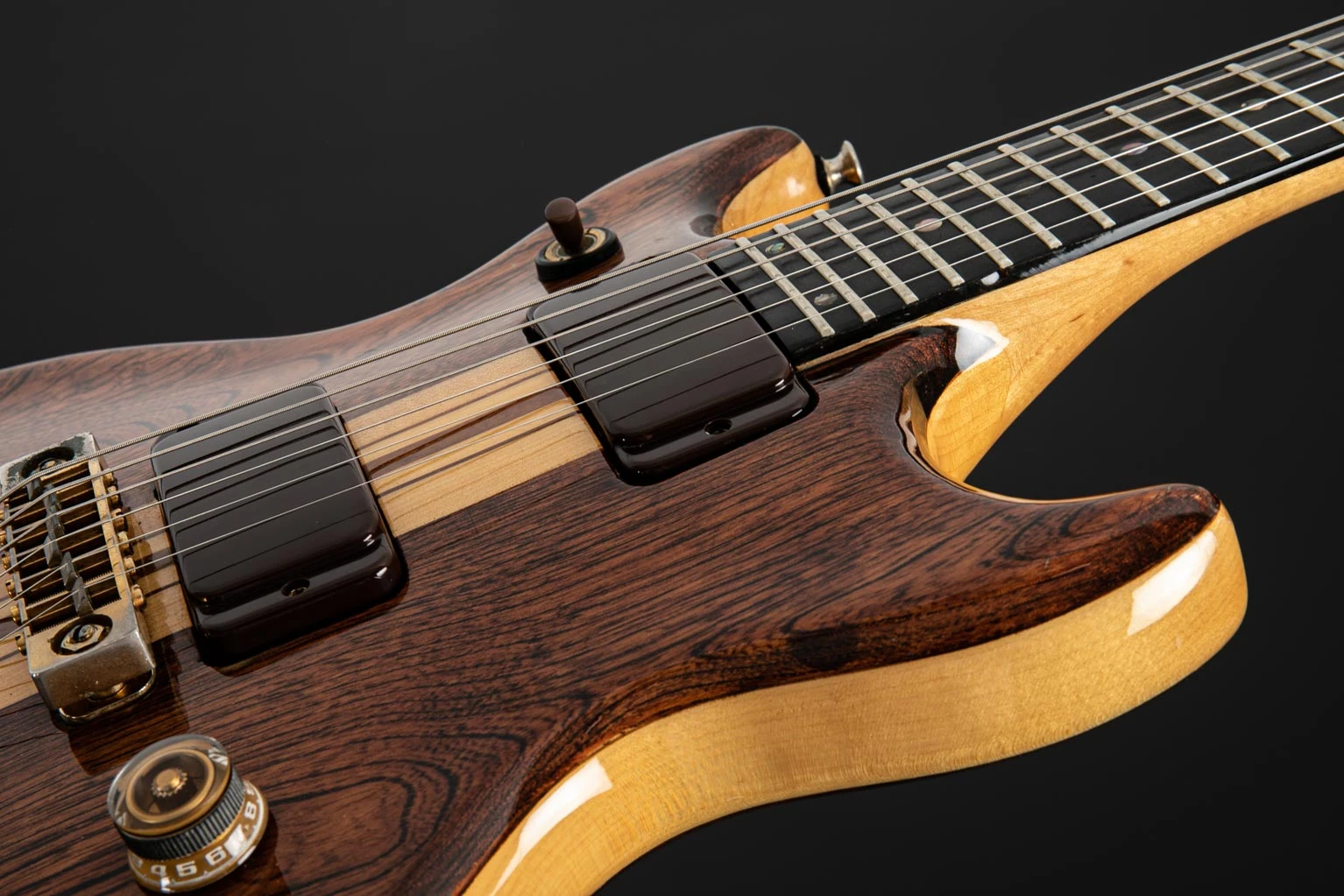

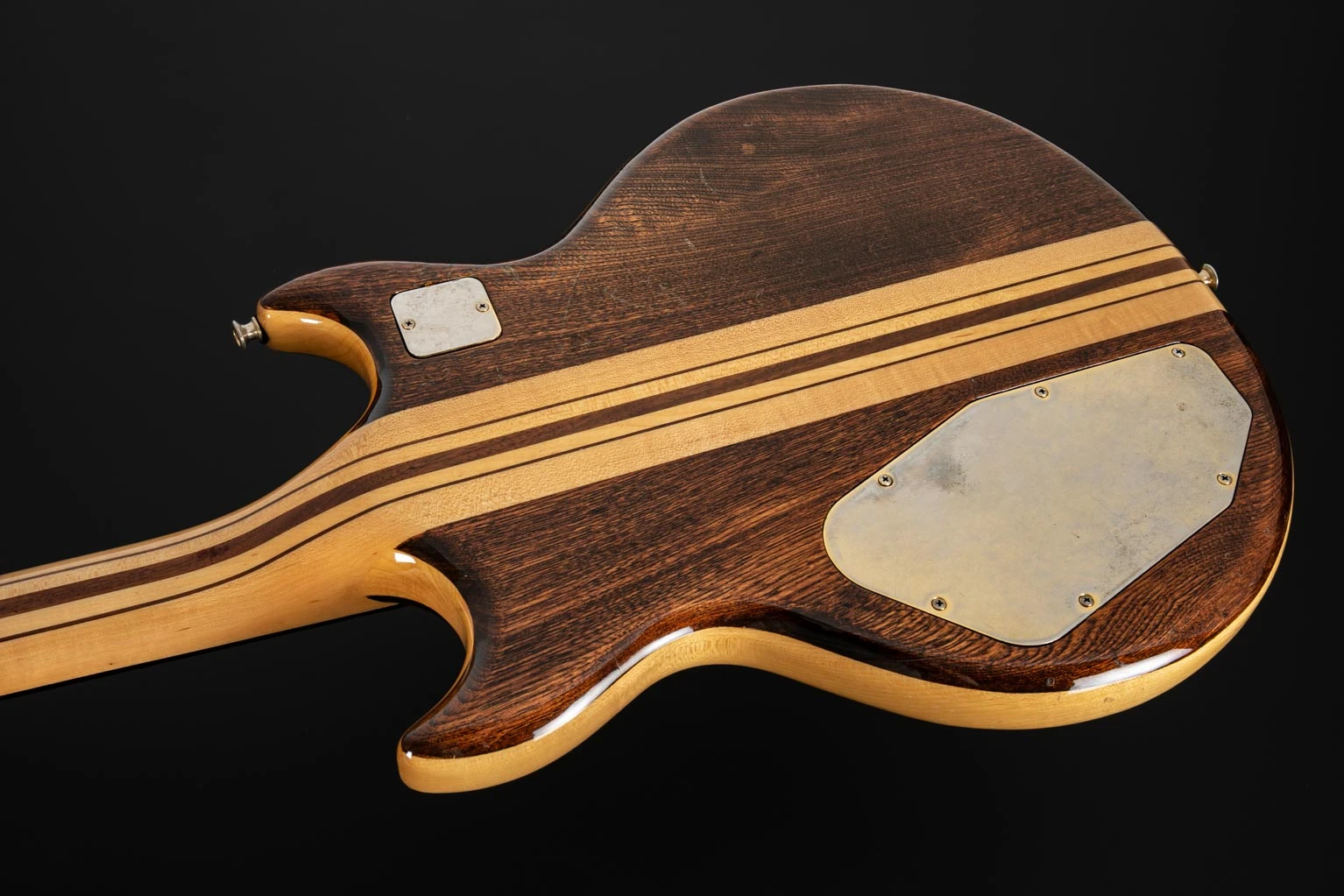

The 2710 is a cross between a 2618 and a Musician MC300 mixing the Artist body and headstock shape with the neck-through-body "sandwich" construction and pickups of the Musician. It features body wings of laminated ash (top and back), maple and zebra wood mated to a seven piece maple and walnut neck running the full length of the guitar. The neck has a 24-fret ebony fingerboard with abalone dot position markers. Components include a pair of Ibanez Super 88 humbucking pickups mounted in integrated plastic covers each controlled with a Tri-sound switch, a Tune-o-matic style Gibraltar bridge mounted in a sustain block recessed into the neck, a Gibraltar slotted tailpiece with scalloped "cloud" ornament, a bone and brass nut, rubberized Sure Grip control knobs and VelveTune machine heads.

The 2700 is a related model with an active EQ system.

The 2710 was discontinued after 1978.

Specifications

Specifications for 2710
Model name: 2710
Year(s) produced: 1978
Sold in: Europe / USA
Made in: Japan
Finish(es): Dark Stain (DS)
Body
Body type:
Solid body
Body material:
Ash, maple and zebra "sandwich" wings
Neck joint:
Neck-thru
Bridge:
Gibraltar (w/ sustain block)
Tailpiece:
Quik Change
Knob style:
Sure Grip
Hardware color:
Gold
Neck
Neck type:
2710
Neck material:
7-piece maple/ walnut
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony
Fingerboard inlays:
Abalone dot
Frets:
24 / jumbo
Nut:
Half-bone/ half-brass
Machine heads:
Ibanez VelveTune
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 88 (H)
Neck pickup:
Ibanez Super 88 (H)
Controls:

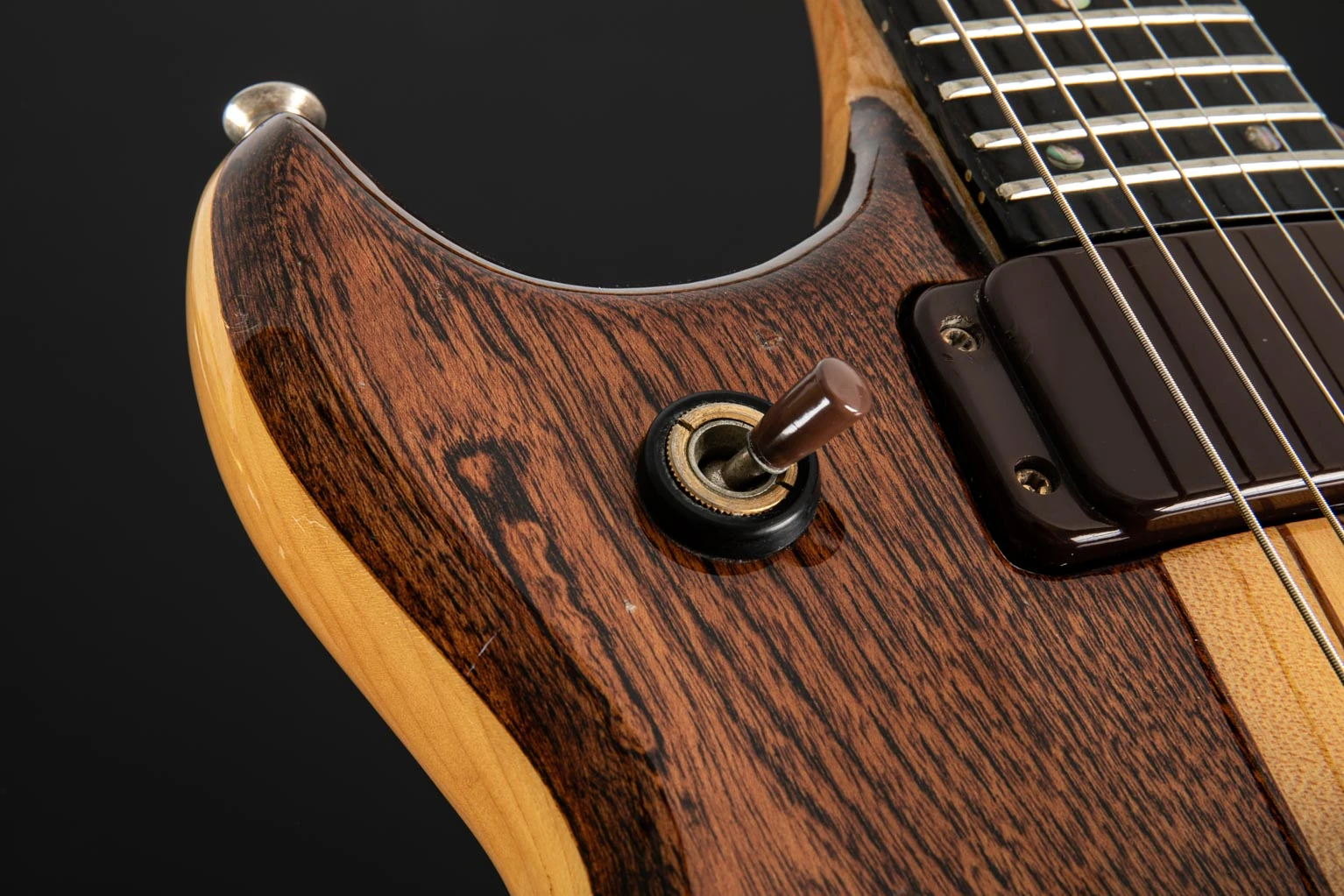

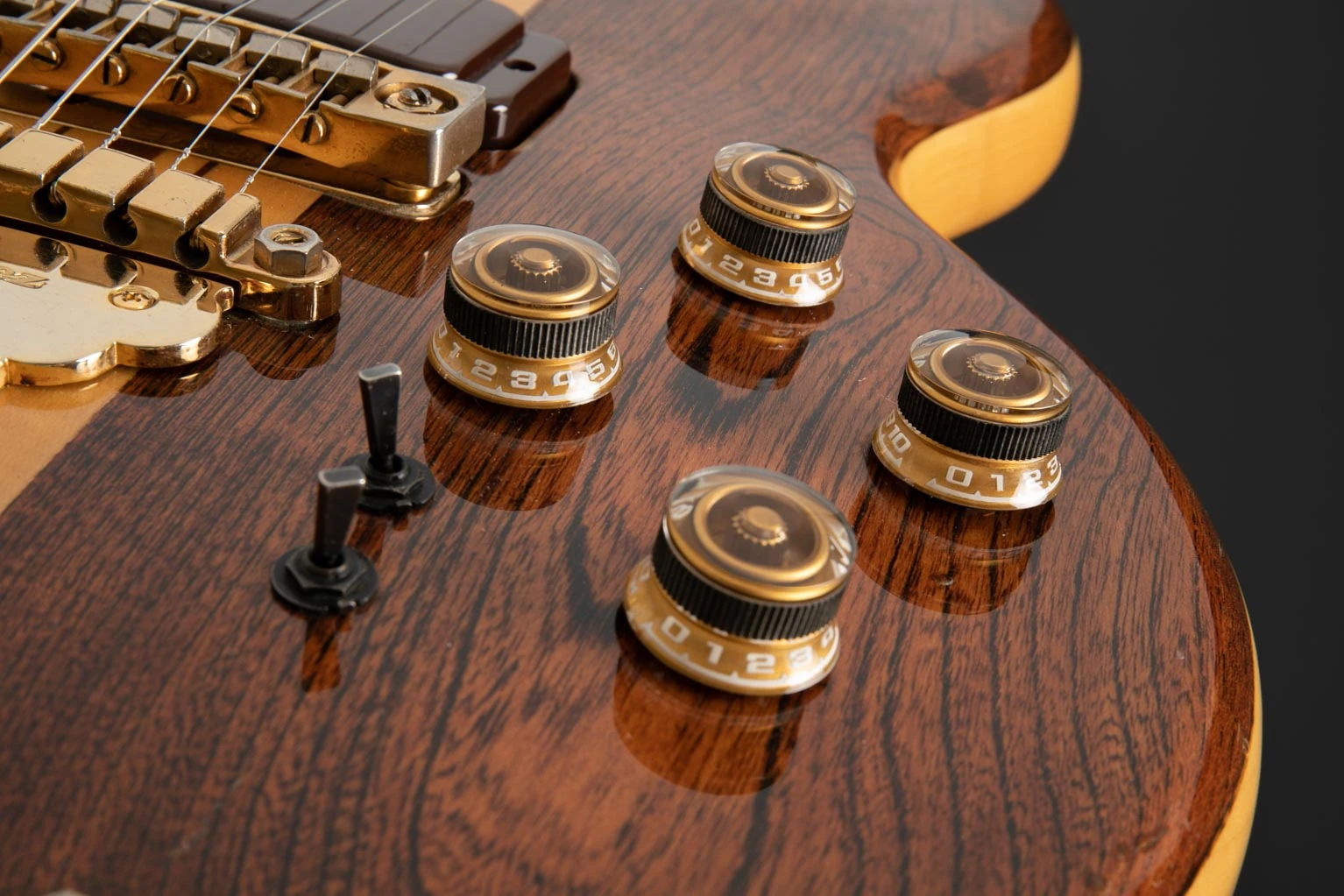

Two volumes / two tones / 3-way toggle pickup selector / 2 Tri-sound switches
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way tri-sound.png
Pickup switching diagram
Controls 2V2T 3-way tri-sound.png
Control layout
