2672 Natural

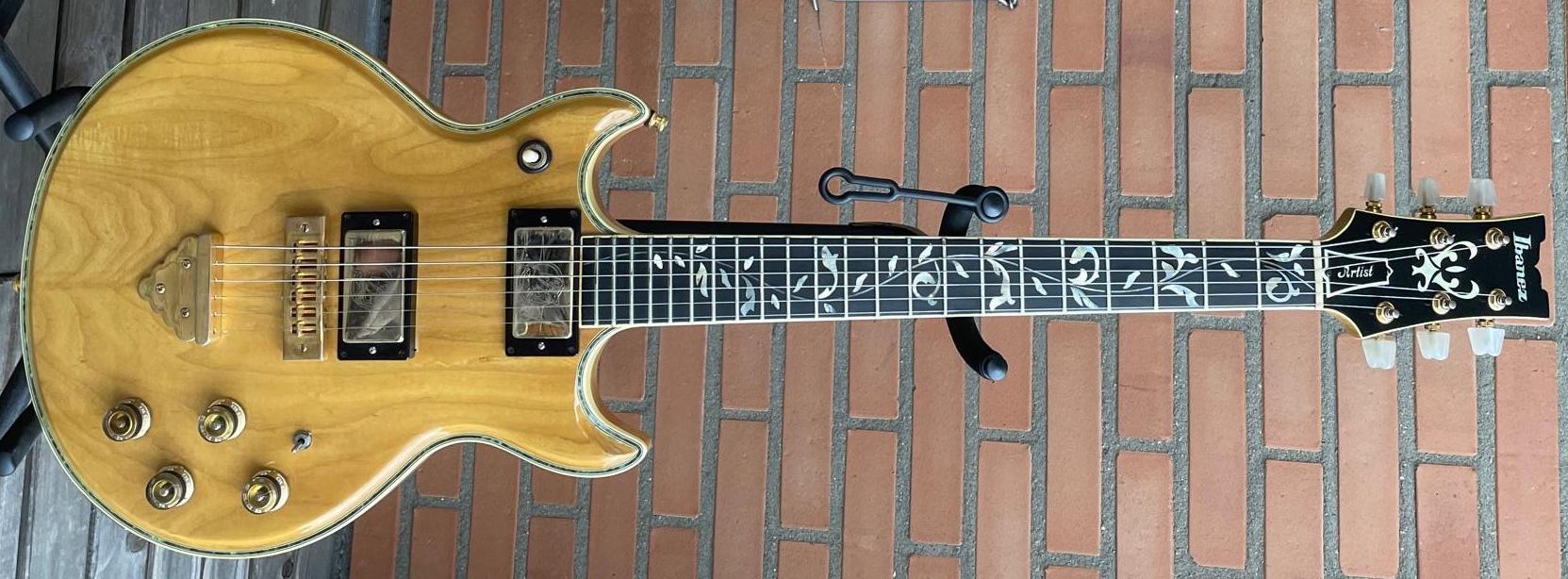

The 2672 is an Artist series solid body electric guitar model introduced by Ibanez around 1975. It was made in Japan by FujiGen. It was a limited spot model which never appeared in a catalog.

The 2672 features a double-cutaway ash body with German carve edges, abalone purfling and cream binding mated to a set-in maple neck with a 22-fret ebony fingerboard with binding and mother of pearl vintage vine inlays and a "castle" style headstock. Components include a pair of Super 70 humbucking pickups with embossed Ibanez script logo mounted in black pickup rings with individual volume and tone controls and a phase toggle for the neck pickup, a Tune-o-matic style bridge and fancy stop tailpiece, speed knobs with pointers and Smooth Tuner machine heads.

The initial models from 1975 (or early 1976) had an Ibanez script logo on the headstock and lacked serial numbers. The first examples with serial numbers were produced in June 1976 (serial number starts with "F76") and have the Ibanez logo in the block font. Early models (prior to mid-1976) had a standard TOM-style bridge and a fancy stop tailpiece. Later models had a larger Harmonic-o-matic bridge and a standard stop tailpiece with a cloud ornament. For 1977 the Super 70 pickups were replaced with the new Super 80s with "flying fingers" covers. It's possible that the phase toggle was swapped out for a Tri-sound switch at that time, but that detail remains unconfirmed.

The 2671 "Randy Scruggs" is a similar model with a single-cut body and a scroll headstock. The 2681 Bob Weir is a related model with a double-cutaway body with truncated horns. The 2617 is a related Artist model with split block fretboard inlays.

The 2672 is fairly rare with fewer than a dozen examples having been accounted for among the collector community.[1]

Specifications[]

Related content: Artist series |
Specifications for 2672
Model name: 2672
Year(s) offered: 1975–1977
Sold in: ??
Made in: Japan
Finish(es): Natural (NT)
Body
Body type:
Solid body
Body material:
Ash w/ carved solid ash top w/ abalone purfling and cream binding
Neck joint:
Set-in
Bridge:
1975–1976: Standard Tune-o-matic
1976–1977: Harmonic-o-matic fixed
Tailpiece:
1975–1976: Deluxe tailpiece
1976-1977: Standard stop tailpiece w/ cloud ornament
Knob style:
Speed (gold) w/ pointer
Hardware color:
Gold
Neck
Neck type:
2672
Neck material:
3-piece rock maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Mother of pearl vintage vine
Frets:
22 nickel silver
Nut:
Bone
Machine heads:
Ibanez Smooth Tuner
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
1975–1976: Super 70 (H) gold cover w/ embossed logo
1977: Super 80 (H) gold cover w/ flying fingers logo
Neck pickup:
1975–1976: Super 70 (H) gold cover w/ embossed logo
1977: Super 80 (H) gold cover w/ flying fingers logo
Controls:
Two volumes / two tones / 3-way toggle pickup selector / Phase toggle for neck pickup
Output jack:
¼" mono (side mounted)

Images[]

Additional details
Pickup switching

Sources[]

  1. 1975 Ibanez 2672 on Reverb!, Ibanez Collectors World forum
