1975 Ibanez Artist 2663
2663 Brown Sunburst (more images) Red copyright sprite

The 2663 is an Artist series solid body electric guitar model introduced by Ibanez for 1975. It was made in Japan by FujiGen. It was also referred to as The Flash or the Iceman Std.[1]

Although these were grouped with the Artist series, they have a very different body shape than the typical Artist guitar. This shape was developed by Hoshino Gakki in partnership with Greco (whose version was called the Mirage), Daiwa and FujiGen. The Iceman name was not used until 1978, but these 2663 models are considered part of the Iceman lineage.

The 2663 features a mahogany top on a mahogany body mated to a set-in 3-ply mahogany neck with a 22-fret ebonized rosewood fingerboard with binding and pearloid parallelogram position markers. Components include a Tune-o-matic style fixed bridge, a stop tailpiece with stylized chrome "ashtray" cover, a pair Ibanez Super 70 humbucking pickups with special covers and individual volume and tone controls, a bone nut, speed knobs, and Smooth Tuner machine heads. The output jack is mounted on the face of the guitar.

The 2663TC is a related model with a single triple-coil pickup mounted at the bridge. The 2663SL is a similar model with a sliding triple coil pickup.

The 2663 was discontinued after 1977 and replaced for 1978 with the similar IC200.

Specifications[]

Related content: Iceman series | Artist series | Models-icon
Specifications for 2663
Year(s) offered: 1975–1977
Sold in: USA
Made in: Japan
Finish(es): Brown Sunburst (BS)
Body
Body type:
Solid body
Body material:
Mahogany w/ cream binding
Neck joint:
Set-in
Bridge:
Tune-o-matic fixed
Tailpiece:
Stop tailpiece w/ stylized "ashtray" cover
Pickguard:
None
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
2663
Neck material:
3-piece rock maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebonized rosewood w/ binding
Fingerboard inlays:
Pearloid parallelogram
Frets:
22
Nut:
Bone
Machine heads:
Smooth Tuner
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 70 (H)
Neck pickup:
Ibanez Super 70 (H)
Controls:
Two volumes / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (top mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

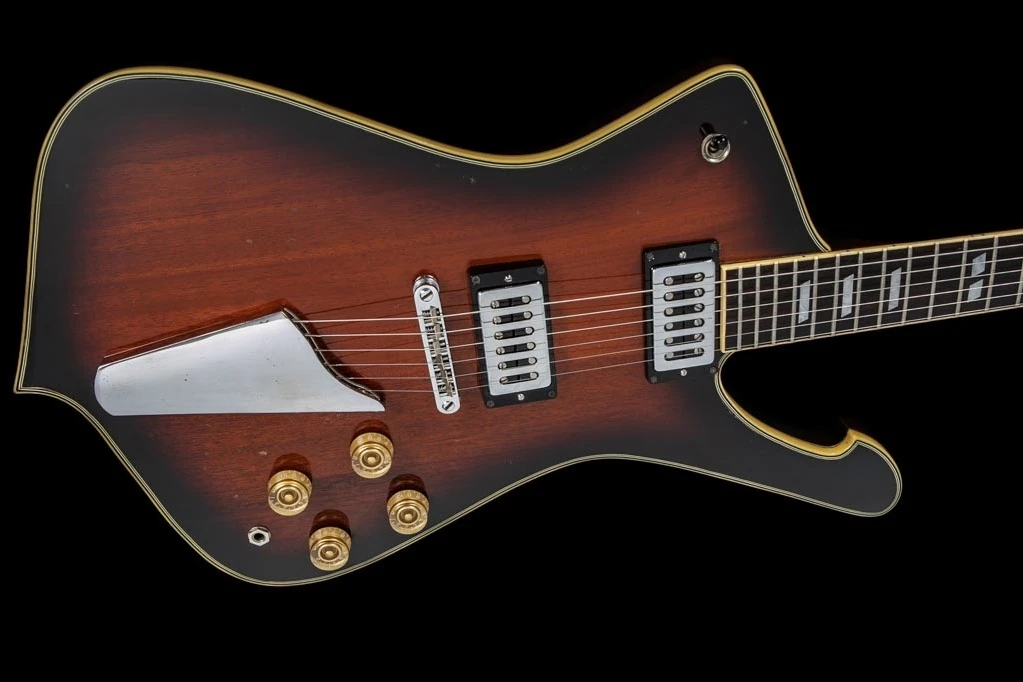

2663 front
Front of body
HH 3-way toggle
Pickup switching

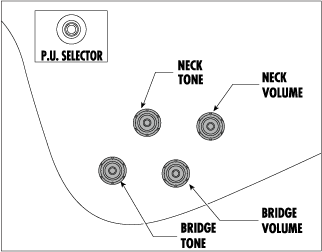

Controls 2V2T3-way Iceman
Controls layout

Sources[]

  1. Bacon, Tony (2013). The Ibanez Electric Guitar Book : a complete history of Ibanez electric guitars (1st ed.). Milwaukee, WI: Backbeat Books. p. 138. ISBN 978-1-61713-453-1.
