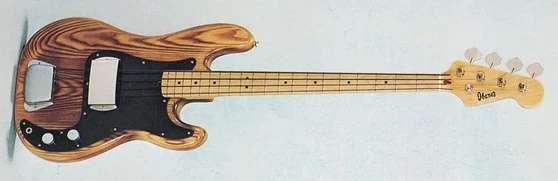

1976 Ibanez 2657ZB
2657 Zebra Red copyright sprite

The 2657 is a solid electric bass guitar model introduced by Ibanez in 1976. It was produced in Japan. It's visually similar to Fender's Jazz Bass model.

The 2657 (also referred to as the 2657ZB) features a solid burned ash body bolted to a hard rock maple neck with a 20-fret maple fingerboard with black dot position markers and a matching headstock. Components include a pair of Hi-power bass pickup's, a black pickguard with a wooden tug bar, a plastic nut, a standard bridge with chrome plated tailpiece and cover, chrome plated individual machines heads.

The 2656 is a related model with a pair of jazz pickup's and pearl block fingerboard inlays.

The 2657 was offered only in 1976.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2657 / 2657ZB
Model name: 2657 / 2657ZB
Year(s) offered: 1976
Sold in: Europe / USA
Made in: Japan
Finish(es): Zebra (ZB)
Body
Body type:
Solid body
Body material:
Burned Ash
Body dimensions:
  Length: 508mm/ 20"
  Width: 356mm/ 14"
Neck joint:
Bolt-on
Bridge:
Standard w/ tailpiece and cover (19mm string spacing)
Pickguard:
Black
Knob style:
Chrome plated
Hardware color:
Chrome
Neck
Neck type:
medium C
Neck material:
3-piece rock maple
Scale length:
851mm/ 33.5"
Fingerboard material:
Maple
Fingerboard inlays:
Black dots
Frets:
20
Nut:
plastic (39mm)
Machine heads:
Chrome plated
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Pickup configuration:
P
Bridge pickup:
Hi-Power (P) alnico
Controls:
Two volumes / Master tone
Output jack:
¼" mono (top mounted)
