1976 Ibanez 2654-WN

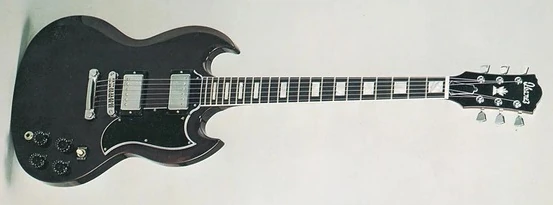

2654 Walnut Red copyright sprite

The 2654 is a solid body electric guitar model introduced by Ibanez for 1976. It was crafted in Japan. It's visually similar to Gibson's SG model.

The 2654 features a double cutaway with selected mahogany body mated to a set-in hard selected mahogany neck with a medium C profile and a 22-fret ebonized rosewood fingerboard with mother of pearl block position markers, white side dots and an black headstock with the Ibanez logo. Components include a set of "Maxon" Super 70 humbucker pickup's, individual volume and tone controls and a three-way toggle selector, a Tune-o-matic bridge with stop-bar tailpiece, and chrome plated Smooth tuner machine heads.

The 2441 is an almost similar model with gold plated hardware and detachable neck.

The 2654 was offered only in 1976.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2654
Model name: 2654
Year(s) offered: 1976
Sold in: Europe / USA
Made in: Japan
Price: MSRP: DM: 990 (1976)
Finish(es): Walnut (WN)
Body
Body type:
Solid body
Body material:
Selected Mahogany
Body dimensions:
  Length: 16"
  Width: 12¾"
  Depth: 1⅜"
Neck joint:
Set-in
Bridge:
Tune-o-matic w/ stop-bar
Pickguard:
black
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
Medium C profile
Neck material:
1-piece mahogany (hard selected)
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebonized rosewood
Fingerboard inlays:
Pearl blocks w/ white side dots
Frets:
22 / medium
Nut:
plastic (42mm)
Machine heads:
Smooth tuner
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
"Maxon" Super 70 chrome plated (H)
Neck pickup:
"Maxon" Super 70 chrome plated (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (top-mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
