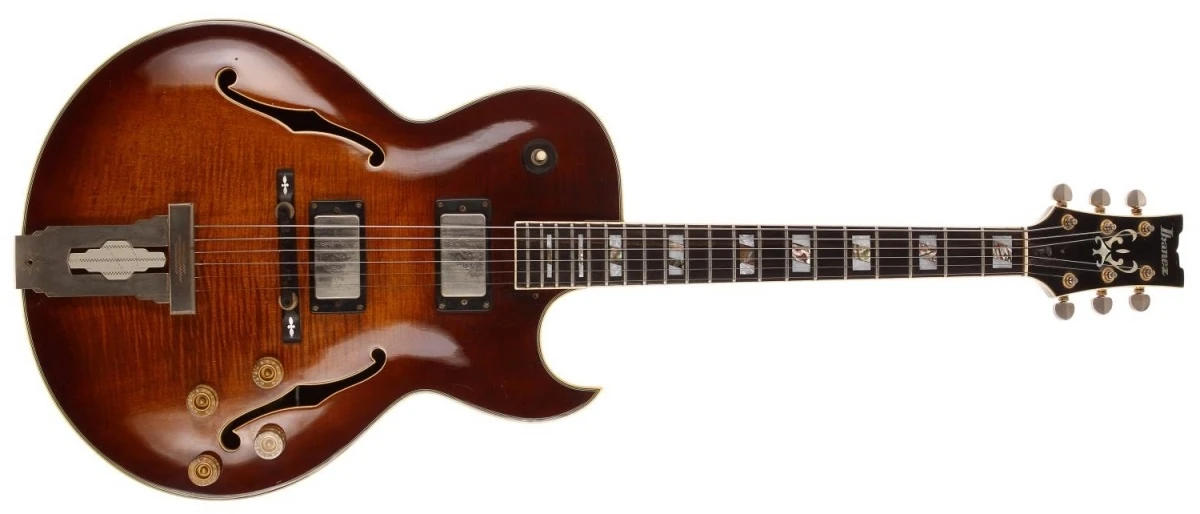

1977 2635 AV.jpg
2635 Antique Violin Red copyright sprite.png

The 2635 is an Artist series hollow body electric guitar model introduced by Ibanez for 1977. It was made in Japan by FujiGen.

The 2635 features a full-sized, full-hollow body with a Florentine cutaway which is reminiscent of a Gibson ES-175. It has a maple top with ƒ holes and ivory multi-binding on maple back and sides mated to a set-in rock maple neck with a 20-fret ebony fingerboard with ivory binding and pearl and abalone split block position markers. Components include a pair of Ibanez Super 80 humbucking pickups with gold covers and individual volume and tone controls, black pickup rings, an ebony bridge with ebony saddle, a custom trapeze tailpiece, a bone and brass nut, speed knobs with pointers, and VelveTune tuning machines with half moon buttons.

For 1978 the knobs were replaced with the new rubberized Sure Grips.

The 2635 was discontinued after 1978.

Specifications

Specifications for 2635
Model name: 2635
Year(s) produced: 1977–1978
Sold in: Europe / USA
Made in: Japan
Finish(es): Antique Violin (AV)
Body
Body type:
Hollow body
Top:

  Material: Maple
  Binding: Ivory (5-ply)

Back/sides:

  Material: Maple

Neck joint:
Set-in
Bridge:
Ebony w/ ebony saddle (?)
Tailpiece:
Custom trapeze
Pickguard:
Tortoise shell
Knob style:
1977: Speed (gold)
1978: Sure Grip (gold)
Hardware color:
Gold
Neck
Neck type:
2635
Neck material:
One-piece rock maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ ivory binding
Fingerboard inlays:
Pearl & abalone split block
Frets:
20
Nut:
Half & Half nut (bone/ brass)
Machine heads:
VelveTune w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 80 (H) passive/alnico
Neck pickup:
Ibanez Super 80 (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle.png
Pickup switching
Controls 2V2T3 Artist.png
Controls layout
