1976 Artist 2625B-MH

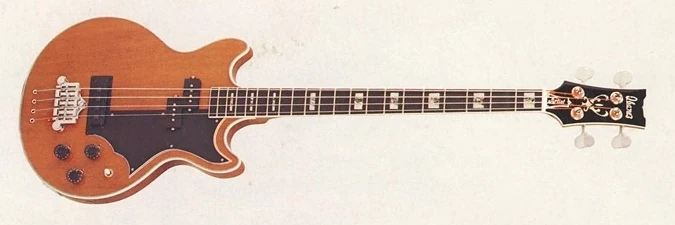

2625B Mahogany (more images) Red copyright sprite

The 2625B is a solid body electric bass model introduced by Ibanez for 1976. It was produced in Japan.

The 2625B features a double cutaway solid mahogany body with mahogany finish bolted to a hard laminated maple neck with adjustable truss rod a 20-fret ebonized rosewood fingerboard with fancy mother ofpearl position markers and a black headstock with truss rod cover. Components include a Super-Bass precision pickup on the neck position and a Super-Bass jazz pickup in the bridge position, individual volume and tone controls, a three-way toggle selector, black pickguard, a 3 point adjustable chrome plated fixed bridge, a plastic nut and chrome plated Deluxe machines heads.

The strings enter throught the body for incresed sustain.

The 2615B is a related with a pair of Super-Bass humburcker pickup's. The 2626B is a related model.

The 2625B was offered only in 1976.

Specifications[]

Related content: Artist series | Models-icon
Specifications for 2625B
Model name: 2625B
Year(s) offered: 1976
Sold in: Europe / USA
Made in: Japan
Finish(es): Mahogany (MH)
Body
Body type:
Solid body
Body material:
Mahogany w/ binding
Body dimensions:
  Length: 16¼"
  Width: 13¾"
  Depth: 2"
Neck joint:
Bolt-on
Bridge:
3 point fixed/ adjustable chrome plated (19mm string spacing)
Pickguard:
black
Knob style:
Speed (black)
Hardware color:
chrome plated
Neck
Neck material:
3-piece maple hard laminated w/ adjustable truss rod
Scale length:
33.5" inches
Fingerboard material:
Ebonized rosewood
Fingerboard inlays:
fancy pearl
Frets:
20 / medium
Nut:
plastic (42mm)
Machine heads:
Deluxe (chrome plated)
Electronics/ Strings
Pickup configuration:
PJ
Bridge pickup:
Super-Bass (J)
Neck pickup:
Super-Bass (P)
Controls:
Master volume / Two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side-mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details

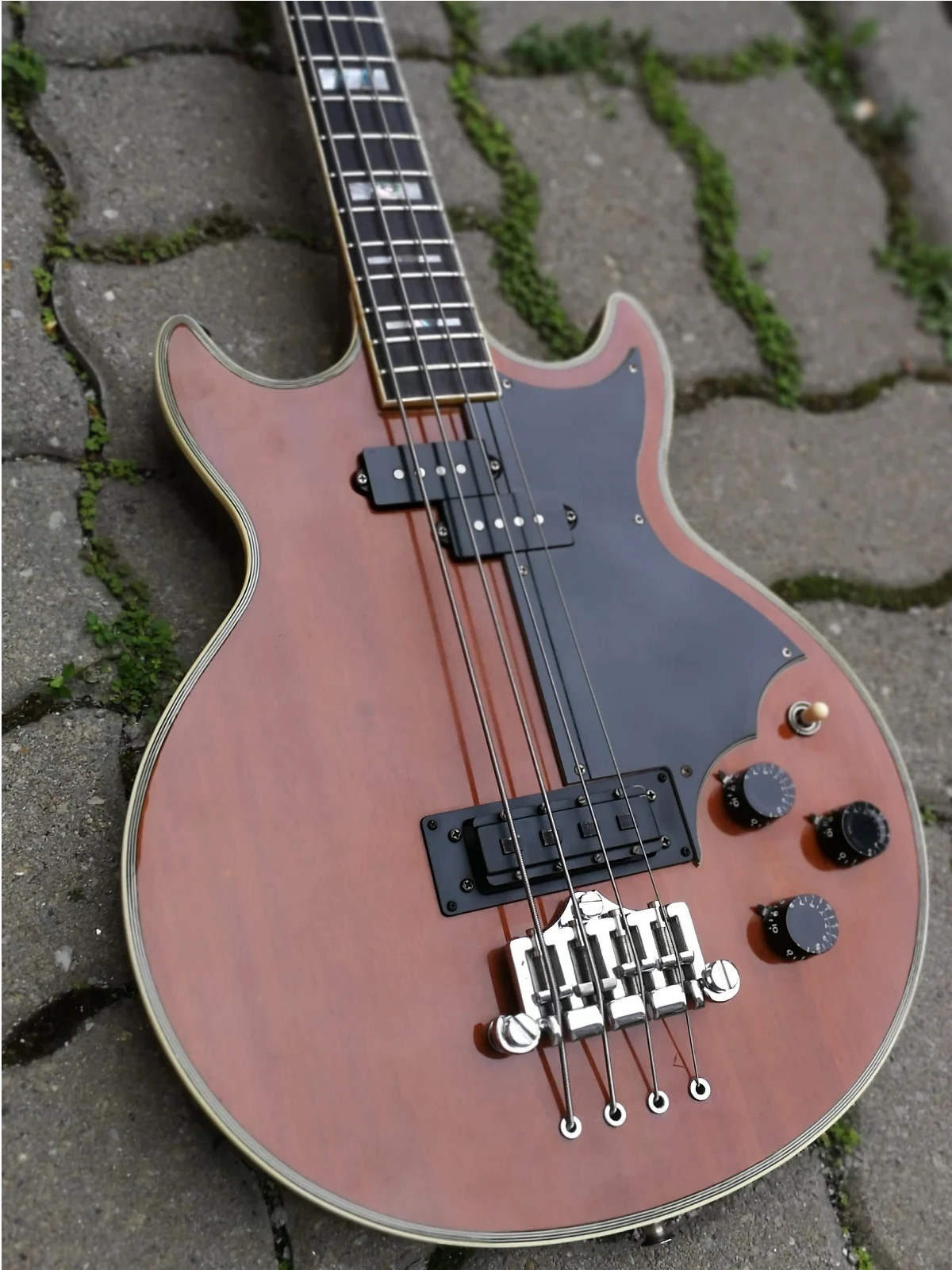

1976 Artist 2625B-MH front
Front of body
