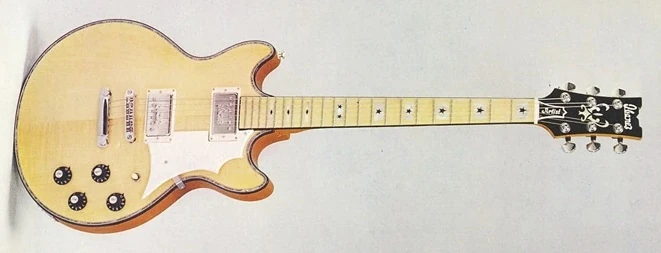

1976 Artist 2613-NT
2613 Natural (more images) Red copyright sprite

The 2613 is an Artist series solid body electric guitar model introduced by Ibanez for 1973. It was made in Japan.

The 2613 features an arched maple top with pearloid binding on a double-cutaway mahogany body bolted to a hard maple neck with a 22-fret maple fingerboard with binding and fancy pearloid block with stars position markers and black side dots. Components include a pair of Ibanez Super 70 humbucking pickups mounted in cream pickup rings with individual volume and tone controls, a Tune-O-Matic style fixed bridge with stop bar, white pickguard, top hat knobs with pointers and chrome plated Smooth Tuner machine heads.

The 2611 is a similar model with arched birch top and vibrato with gold hardware. The 2612 is a related model with arched birch top and gold hardware. The 2614 is a related model with arched mahogany top.

The 2613 was discontinued after 1976.

Specifications[]

Related content: Artist series | Models-icon
Specifications for 2613
Model name: 2613
Year(s) offered: 1973–1976
Sold in: Europe / USA
Made in: Japan
Price: MSRP: DM 595 "1974" / DM 740 "1976"
Finish(es): Natural (NT)
Body
Body type:
Solid body
Body material:
Mahogany w/ arched maple top w/ pearloid binding
Body dimensions:
  Length: 16¼" / 413mm
  Width: 13¾" / 349mm
  Depth: 2" / 51mm
Neck joint:
Bolt-on
Bridge:
Tune-O-Matic
Tailpiece:
Stop bar
Pickguard:
white
Knob style:
Top hat (black w/ chrome top)
Hardware color:
Chrome
Neck
Neck type:
AR
Neck material:
3-piece maple hard
Scale length:
628mm/ 24¾"
Fingerboard material:
Maple w/ binding
Fingerboard inlays:
Fancy pearloid blocks w/ stars w/ black side dots
Frets:
22 / VelveTouch
Nut:
plastic
Machine heads:
chrome plated Smooth Tuner
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 70 (H) chrome cover
Neck pickup:
Ibanez Super 70 (H) chrome cover
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (top mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

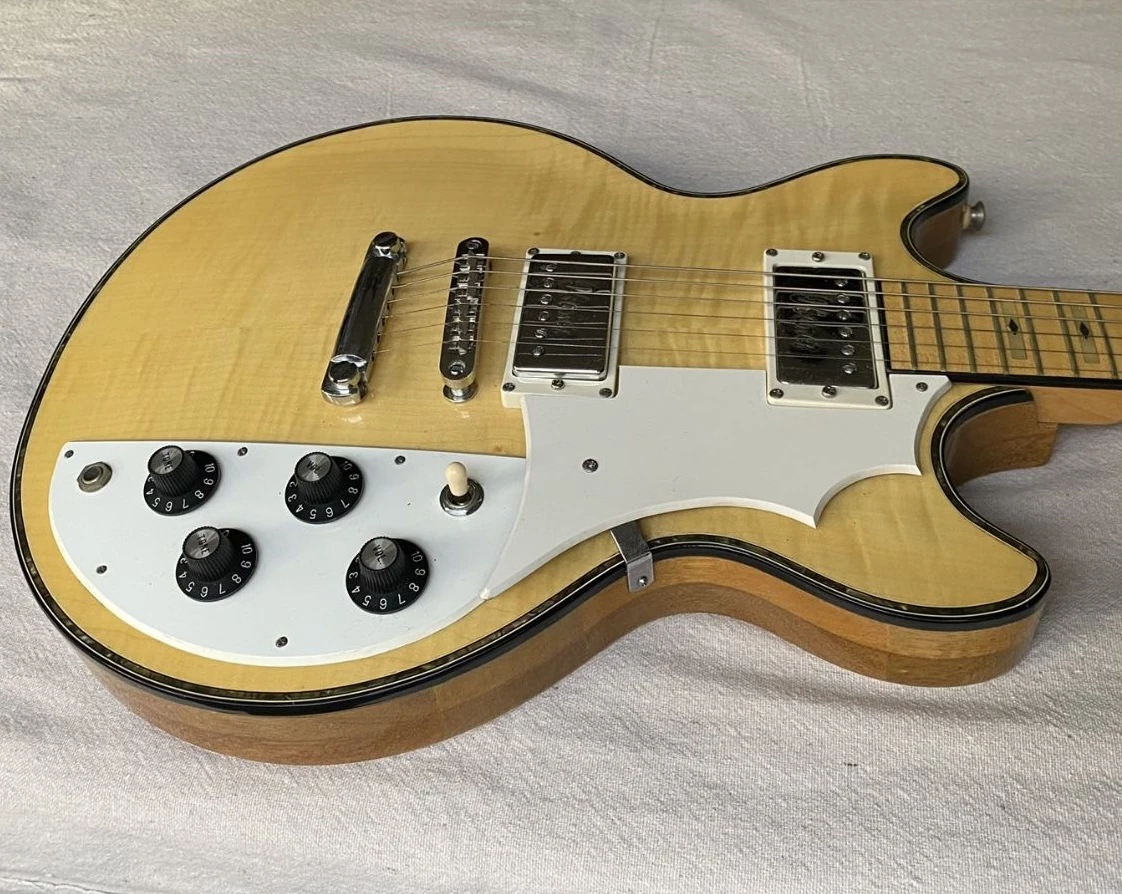

Artist 2613-NT front
Body (front)
