2612 Black

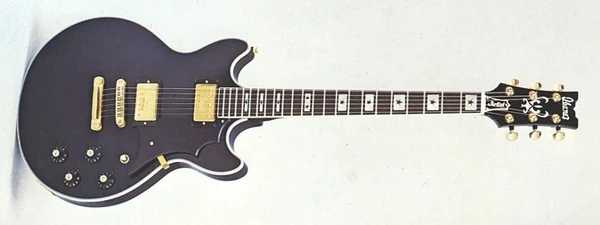

The 2612 is an Artist series solid body electric guitar model introduced by Ibanez for 1973. It was made in Japan.

The 2612 features an arched birch top with black and white binding on a double-cutaway mahogany body bolted to a laminated birch neck with a 22-fret rosewood fingerboard with binding and fancy pearloid block with stars position markers and black side dots. Components include a pair of Super 70 humbucking pickups mounted in black pickup rings with individual volume and tone controls, a Tune-O-Matic style fixed bridge with stop bar, black pickguard top hat knobs with pointers and gold plated Deluxe Smooth Tuner machine heads.

The 2611 is a similar model with vibrato. The 2613 is a related model with arched maple top, maple fingerboard and chrome hardware. The 2614 is a related model with arched mahogany top and chrome hardware.

The 2612 was discontinued after 1976.

Specifications[]

Related content: Artist series |
Specifications for 2612
Model name: 2612
Year(s) offered: 1973–1976
Sold in: Europe / USA
Made in: Japan
Price: MSRP: DM 595 "1974" / DM 777 "1976"
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany w/ arched birch top w/ binding
Body dimensions:
  Length: 16¼" / 413mm
  Width: 13¾" / 349mm
  Depth: 2" / 51mm
Neck joint:
Bolt-on
Bridge:
Tune-O-Matic
Tailpiece:
Stop bar
Pickguard:
black
Knob style:
Top hat (black w/ chrome top)
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
hard laminated birch
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Fancy pearloid blocks w/ stars w/ black side dots
Frets:
22 / VelveTouch
Nut:
Bone
Machine heads:
Gold plated Smooth Tuner Deluxe
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
Super 70 (H) gold cover
Neck pickup:
Super 70 (H) gold cover
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (top mounted)
