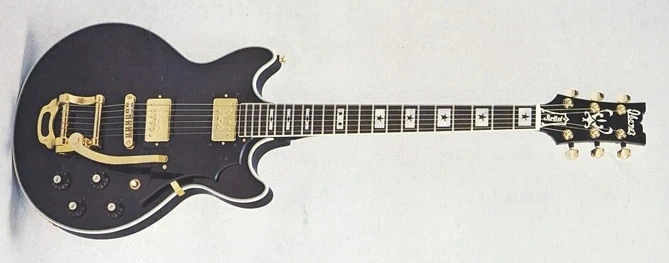

1976 Artist 2611-BK
2611 Black (more images) Red copyright sprite

The 2611 is an Artist series solid body electric guitar model introduced by Ibanez for 1973. It was made in Japan.

The 2611 features an arched birch top with black and white binding on a double-cutaway mahogany body bolted to a laminated birch neck with a 22-fret rosewood fingerboard with binding and fancy pearloid block with stars position markers and black side dots. Components include a pair of Super 70 humbucking pickups mounted in black pickup rings with individual volume and tone controls, a Tune-O-Matic style bridge and gold plated vibrato tailpiece, black pickguard top hat knobs with pointers and gold plated Deluxe Smooth Tuner machine heads.

The 2612 is a similar model without vibrato. The 2613 is a related model without vibrato an arched maple top, maple fingerboard and chrome hardware. The 2614 is a related model without vibrato an arched mahogany top and chrome hardware.

The 2611 was discontinued after 1976.

Specifications[]

Related content: Artist series | Models-icon
Specifications for 2611
Model name: 2611
Year(s) offered: 1973–1976
Sold in: Europe / USA
Made in: Japan
Price: MSRP: DM 635 "1974" / DM 820 "1976"
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany w/ arched birch top w/ binding
Body dimensions:
  Length: 16¼" / 413mm
  Width: 13¾" / 349mm
  Depth: 2" / 51mm
Neck joint:
Bolt-on
Bridge:
Tune-O-Matic
Tailpiece:
Vibrato
Pickguard:
black
Knob style:
Top hat (black w/ chrome top)
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
hard laminated birch
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Fancy pearloid blocks w/ stars w/ black side dots
Frets:
22 / VelveTouch
Nut:
Bone
Machine heads:
Gold plated Smooth Tuner Deluxe
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Super 70 (H) gold cover
Neck pickup:
Super 70 (H) gold cover
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (top mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

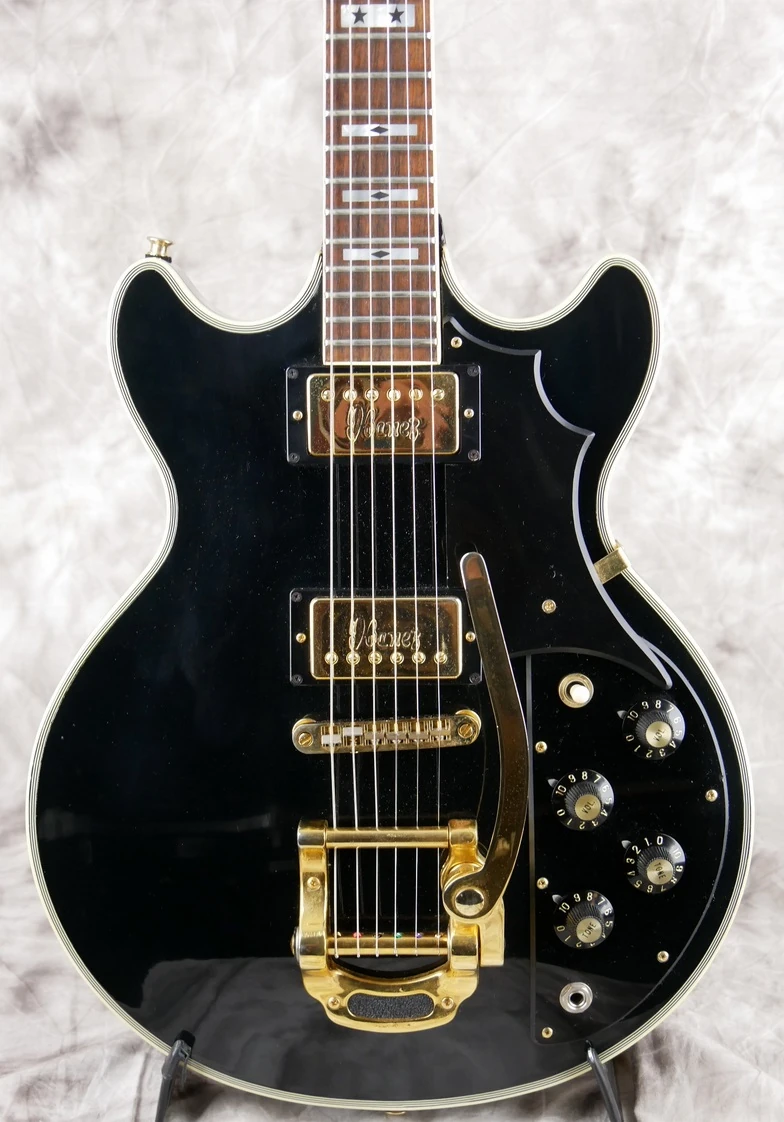

Ibanez 2611-BK front
Body (front)
