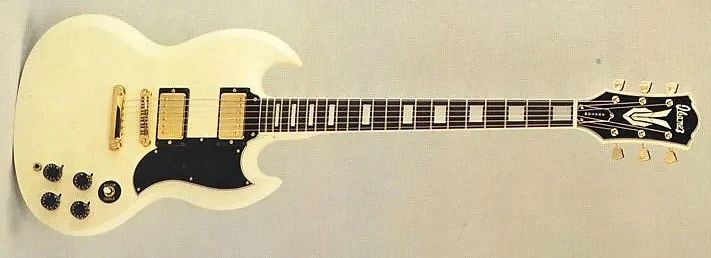

1976 Ibanez 2441-WH
2441 White Red copyright sprite

The 2441 is a solid body electric guitar model introduced by Ibanez for 1976. It was crafted in Japan. It's visually similar to Gibson's SG model.

The 2441 features a double cutaway solid mahogany body with selected birch top bolted to a hard laminated birch neck with a medium C profile and a 22-fret ebonized rosewood fingerboard with mother of pearloid block position markers, white side dots and an black headstock with the Ibanez logo. Components include a set of "Maxon" Super 70 humbucker pickup's, individual volume and tone controls and a three-way toggle selector, a Tune-o-matic bridge with stop-bar tailpiece, and gold plated Smooth tuner machine heads.

The 2440 is a related model with chrome hardware and walnut finish. The 2654 is an almost similar model with chrome plated hardware and Set-in neck.

The 2441 was discontinued after 1977.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2441
Model name: 2441
Year(s) offered: 1976–1977
Sold in: Europe / USA
Made in: Japan
Finish(es): White (WH)
Body
Body type:
Solid body
Body material:
Mahogany w/ birch top
Body dimensions:
  Length: 16"
  Width: 12¾"
  Depth: 1⅜"
Neck joint:
Bolt-on
Bridge:
Tune-o-matic w/ stop-bar
Pickguard:
black
Knob style:
Speed (black)
Hardware color:
Gold
Neck
Neck type:
Medium C profile
Neck material:
Hard laminated birch
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebonized rosewood
Fingerboard inlays:
Pearloid blocks w/ white side dots
Frets:
22 / medium
Nut:
plastic (42mm)
Machine heads:
Smooth tuner
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
"Maxon" Super 70 gold plated (H)
Neck pickup:
"Maxon" Super 70 gold plated (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (top-mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
