2405 Sunburst (more images)

The 2405 is an Artist series solid body electric guitar model introduced by Ibanez for 1974. It was made in Japan by FujiGen. It is also know as Custom Agent and was part of Ibanez's response to the Gibson "lawsuit".

The "2405" features an arched birch top on a single cutaway mahogany body mated to a set-in laminated birch neck with an ebonized rosewood fingerboard with banjo-style ornate inlays and 22 medium frets. It has a classic F5 mandolin scroll-style headstock, a black pickguard, and a faux Mother of pearl inlay behind the tailpiece. Components include a pair of Ibanez Super 70 humbucking pickups, Deluxe gold plated Smooth Tuner (sealed )machine heads, and gold hardware.

The Custom Agent 2405 was one of the top of the line guitars for the company. It was discontinued after 1977.

Specifications

Related content: Professional series | Artist series |
Specifications for 2405 / Custom Agent 2405
Model name: 2405 / Custom Agent 2405
Year(s) offered: 1974–1977
Sold in: Japan
Made in: Japan
Finish(es): Sunburst (SB)
Body
Body type:
Solid body
Body material:
Mahogany with an arched Birch top
Neck joint:
Set-in
Bridge:
Tune-O-Matic with tailpiece (10.8mm string spacing)
Pickguard:
Black
Knob style:
Witch hat (black plastic) (black & white)
Hardware color:
Gold plated
Neck
Neck type:
Slim C- profile
Neck material:
Laminated Birch
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebonised rosewood w/ binding
Fingerboard inlays:
F5 ornate
Frets:
22 / medium nickel silver
Nut:
Bone (43.8mm)
Machine heads:
Gold-plated Smooth Tuner machine heads with a "Star" on the back (sealed)
String gauge (factory):
.010"-.046" roundwound steel strings
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 70 (H) gold covered
Neck pickup:
Ibanez Super 70 (H) gold covered
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side-mounted w/ brass plate)

Images

Custom Agent 2405 (1974)

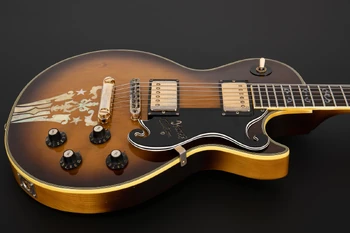

Front of body

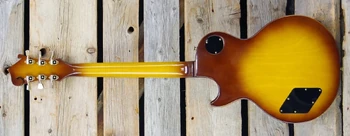

Rear of body
Additional details
Body front

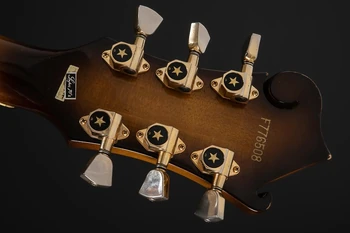

Deluxe Smooth Tuner machine heads

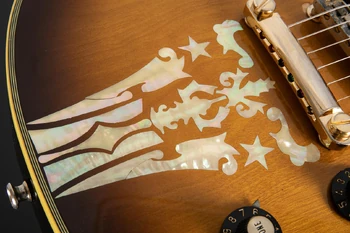

Faux Mother of pearl inlay

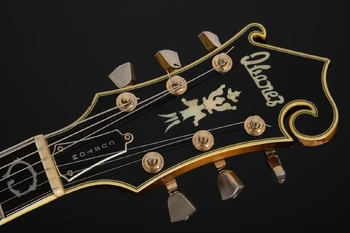

Headstock

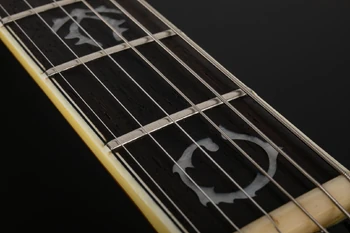

Ornate inlays (Banjo-style)

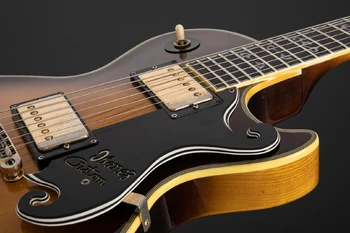

Pickguard

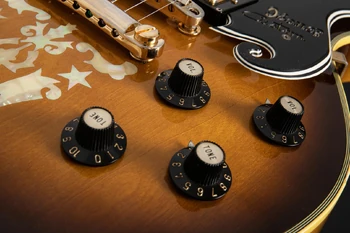

Controls
