The 2402 is a solid double neck electric guitar model introduced by Ibanez for 1974. It was made in Japan by FujiGen. It's visually similar to Gibson's EDS-1275 double neck model.

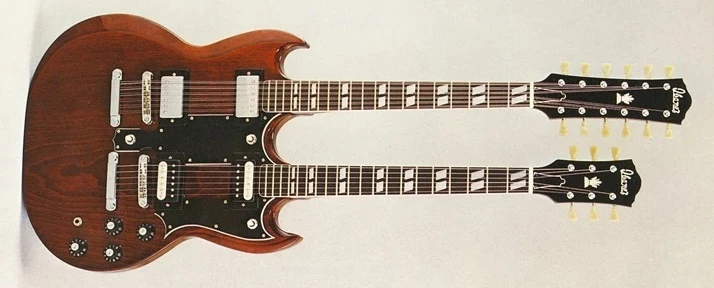

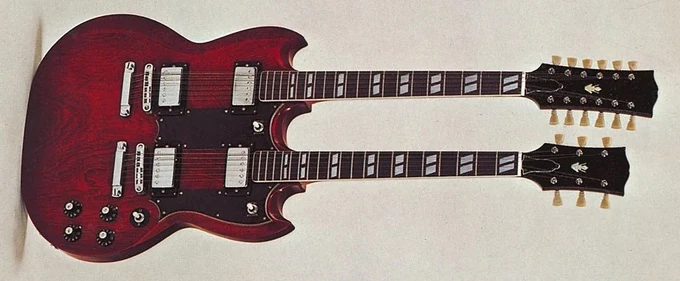

The 2402 features a twelve string guitar neck and a six string guitar neck on mahogany body with figured birch top bolted to a pair of laminated birch necks with 20-fret rosewood fingerboards with pearloid parallelogram position markers and open-book headstocks. Both guitar necks have a pair of Ibanez Super 70 humbucking pickups, Tune-O-Matic style bridge and stop-bare tailpiece. Other components consist of witch hat control knobs, black pickguards and chrome plated machine heads with pearloid buttons.
For 1976 the heasdstock was changed to a revised Ibanez version and the pickups of the six-string neck was uncovered.
The 2402DX is a similar Deluxe model with gold hardware and white finish.

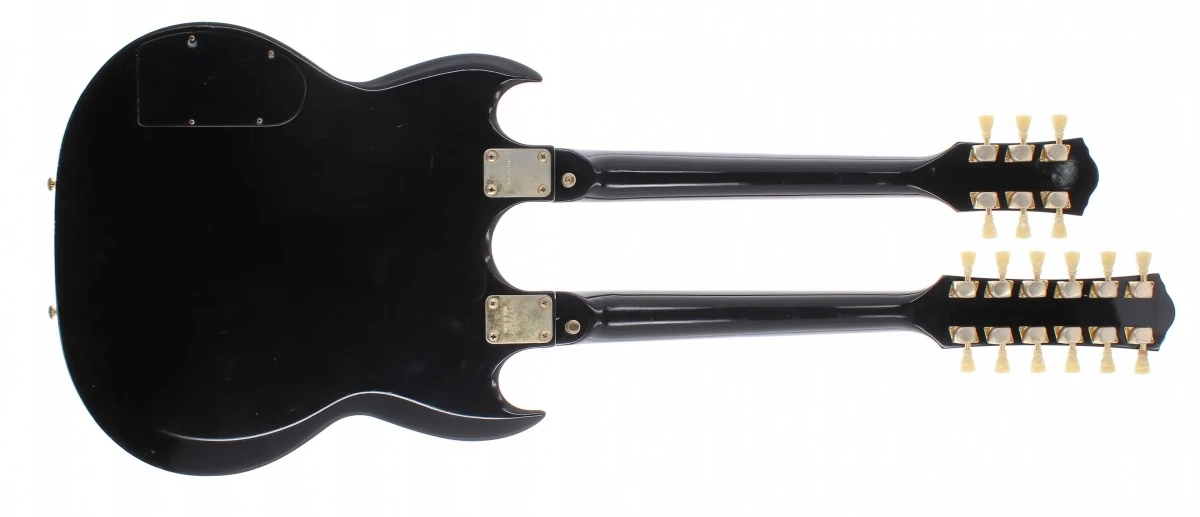

1975 Ibanez 2402 ( Rear: Mahogany body bolted to a laminated birch double neck with twelve string guitar and a six string guitar with chrome plated tuners with pearloid buttons )
