Ibanez 2383-WN

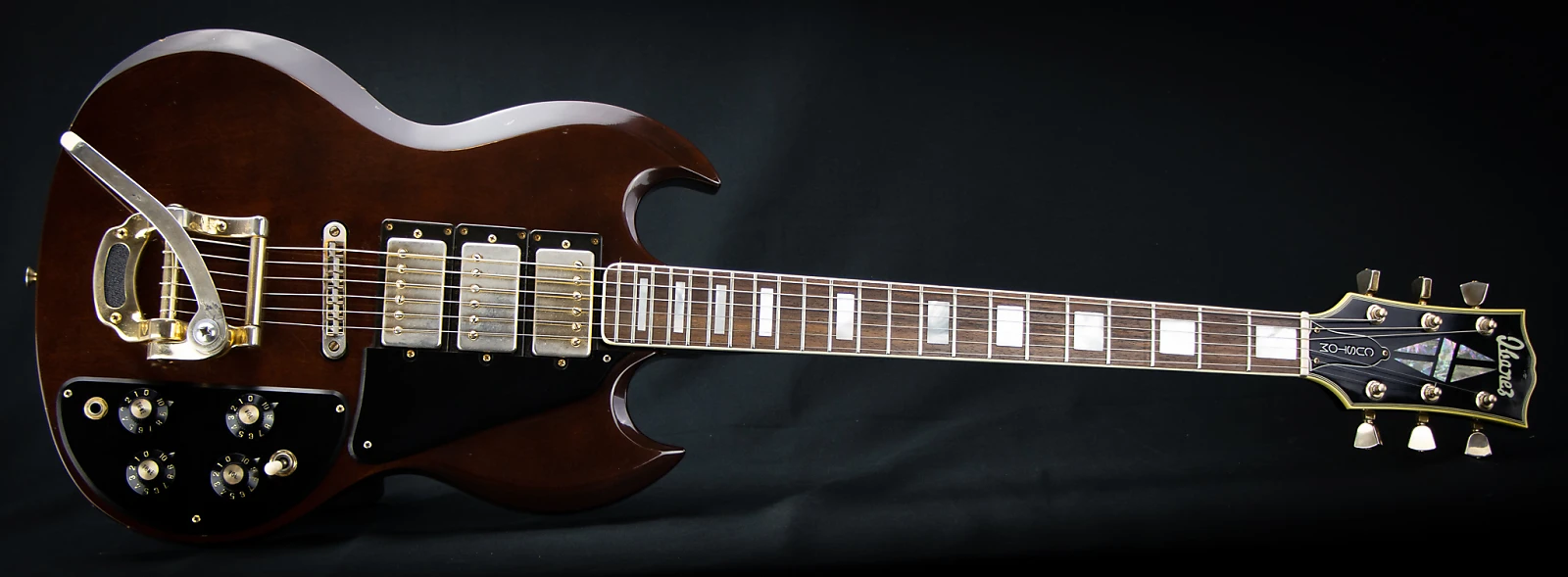

2383 Walnut (more images) Red copyright sprite

The 2383 is a SG Standard style guitar model introduced by Ibanez in 1971. It was crafted in Japan.

The 2383 features a double cut Gibson SG style mahogany solid body with selected birch top in high gloss finish bolted to a mahogany medium C profile neck, a 22-fret ebonized rosewood fingerboard with pearl block position markers. Components include three gold plated Maxon Super 70 Humbucking pickups with (2x) volume, (2x) tone controls and a three-way toggle selector, a Bigsby-style vibrato bridge, and Gotoh star tuning machines.

The 2382 is a similar model with two humbuckers and chrome hardware.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2383
Model name: 2383
Year(s) offered: 1971-1976
Sold in: Europe / USA
Made in: Japan
Finish(es): Mahogany (MH) 1971-1972 / Walnut (WN) 1973-1976 / White (W), (WH) 1973-1976
Body
Body type:
Solid body
Dimensions:
  Length: 17"
  Width: 13¼"
  Depth: 1½"
Top:
  Material: Mahogany
  Binding: Black and white purfling
Back/sides:
  Material: Mahogany
Neck joint:
Bolt-on
Bridge:
Standard Tune-o-matic w/ Deluxe Bigsby style tremolo (10.4mm string spacing)
Pickguard:
Black (4-ply)
Knob style:
Top Hat (gold)
Hardware color:
Gold
Neck
Neck type:
medium C profile
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ white binding
Fingerboard inlays:
Pearl blocks
Frets:
22 / medium nickel silver
Nut:
Bone (42mm)
Machine heads:
Gotoh Star (gold)
Electronics/ Strings
Pickup configuration:
HHH
Bridge pickup:
Maxon Super 70 (H) bridge
Middle pickup:
Maxon Super 70 (H) middle
Neck pickup:
Maxon Super 70 (H) neck
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (top-mounted)
String gauge (factory):
.010-.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Available finishes

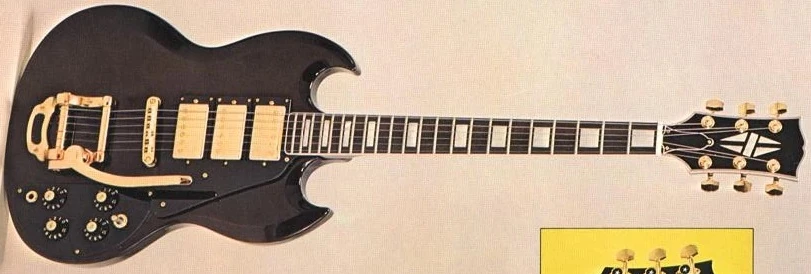

1971 Ibanez 2383-MH
Mahogany

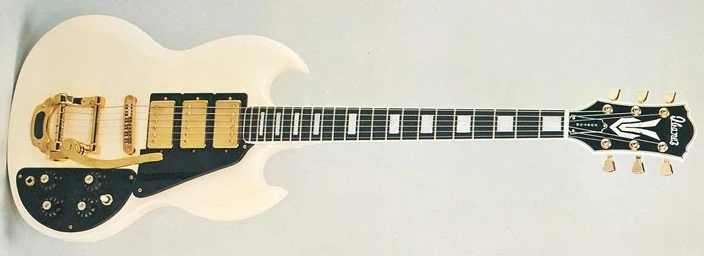

1976 2383-WH
White
Additional details

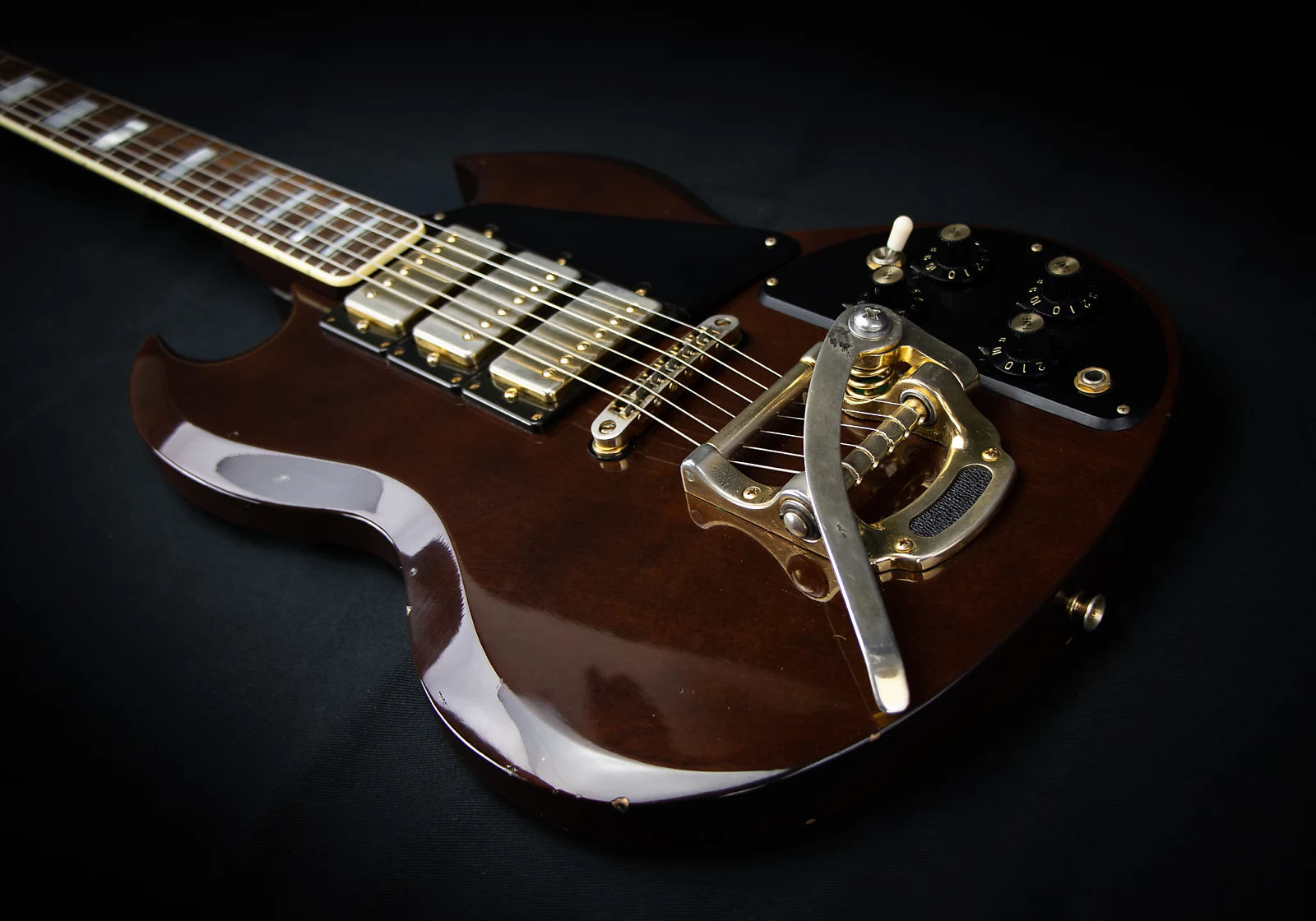

2383 vibrato
Bigsby vibrato
Ibanez 2383 tuners
Gotoh Star tuners

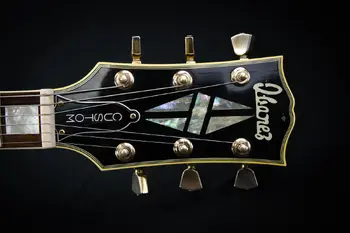

Ibanez 2383 headstock
Headstock
