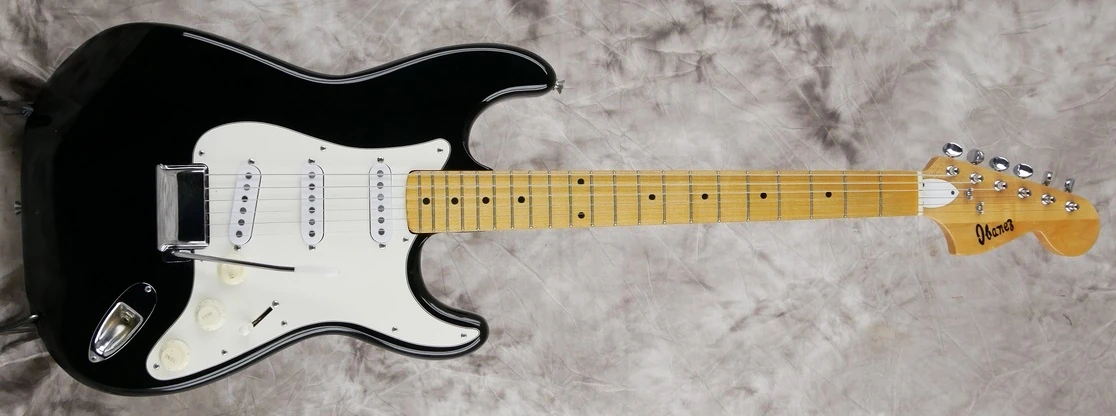

2375 BK (1976)
2375 Black (more images) Red copyright sprite

The 2375 is a solid body electric guitar model introduced by Ibanez for 1973. It was produced in Japan. It's visually similar to Fender's Stratocaster model.

The 2375 features a double cutaway mahogany body with a selected birch top bolted to a laminated maple neck with a 21-fret maple fingerboard with black dots position markers. Components include a set of Ibanez™ SC-Sound Single coil pickups in the neck, middle and bridge positions, an ABM 5050 vintage style tremolo bridge with ashtray cover. Chrome hardware, a white or pearloid pickguard and chrome covered tuning machines.

The "Sunburst" was the only finish with rosewood fingerboard and pearloid dot position markers.

The 2375ASH is a related model with an ash body. The 2375L is a left-handed model. The 2334 is a similar model.

The 2375 was discontinued after 1977.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2375
Model name: 2375
Year(s) offered: 1973–1977
Sold in: USA
Made in: Japan
Finish(es): Black (BK) "1976-1977" / Black Cherry Sunburst (BCS) 1975–1976 / Natural (N),(NT) / Sunburst (SB)1973–1975 / White (W),(WH)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Bolt-on
Bridge:
ABM 5050 Vintage style tremolo w/ Ashtray cover
Pickguard:
White / Pearloid
Knob style:
Plastic top hat (white)
Hardware color:
Chrome
Neck
Neck material:
3-piece maple (laminated)
"1973-1975": Rosewood (Sunburst finish)
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dots
Pearloid dots (Sunburst finish)
Frets:
21 / Medium Stainless steel
Nut:
Bone (41mm)
Machine heads:
Chrome (covered)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
SSS
Bridge pickup:
Ibanez SC-Sound (S)
Middle pickup:
Ibanez SC-Sound (S)
Neck pickup:
Ibanez SC-Sound (S)
Controls:
Master volume / 2 tone / 5-way lever pickup selector
Output jack:
¼" mono (angled face mount)

Images[]

Other available finishes
1976 Ibanez 2375 BCS
Black Cherry Sunburst

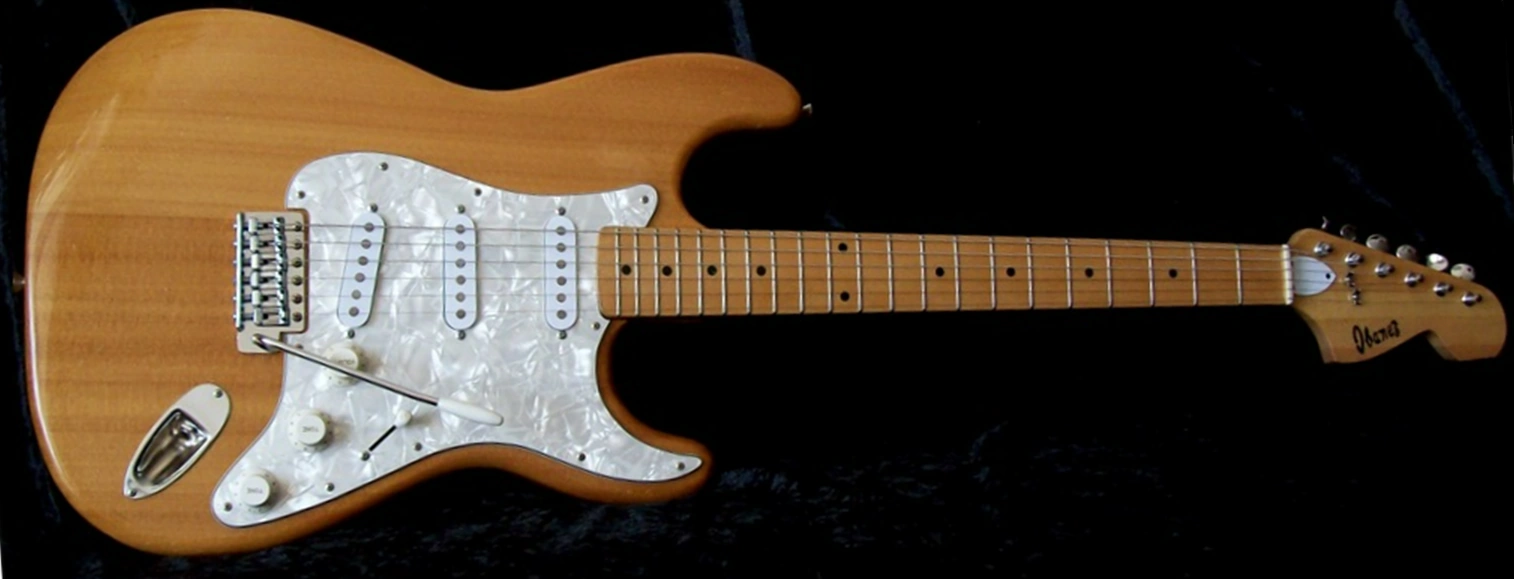

1975 Ibanez model 2375 NT
Natural

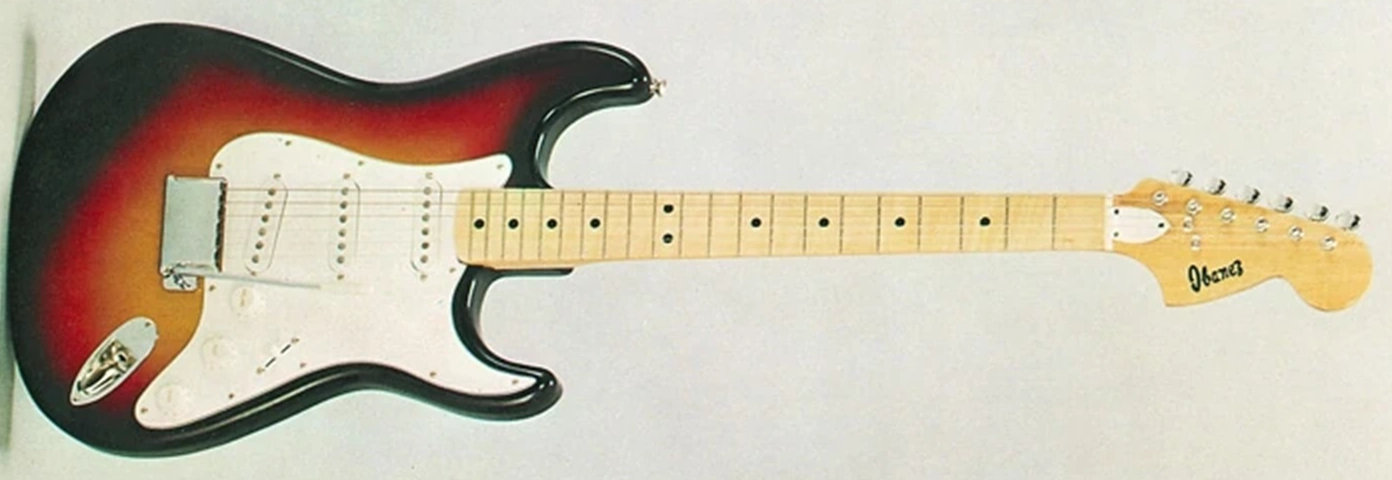

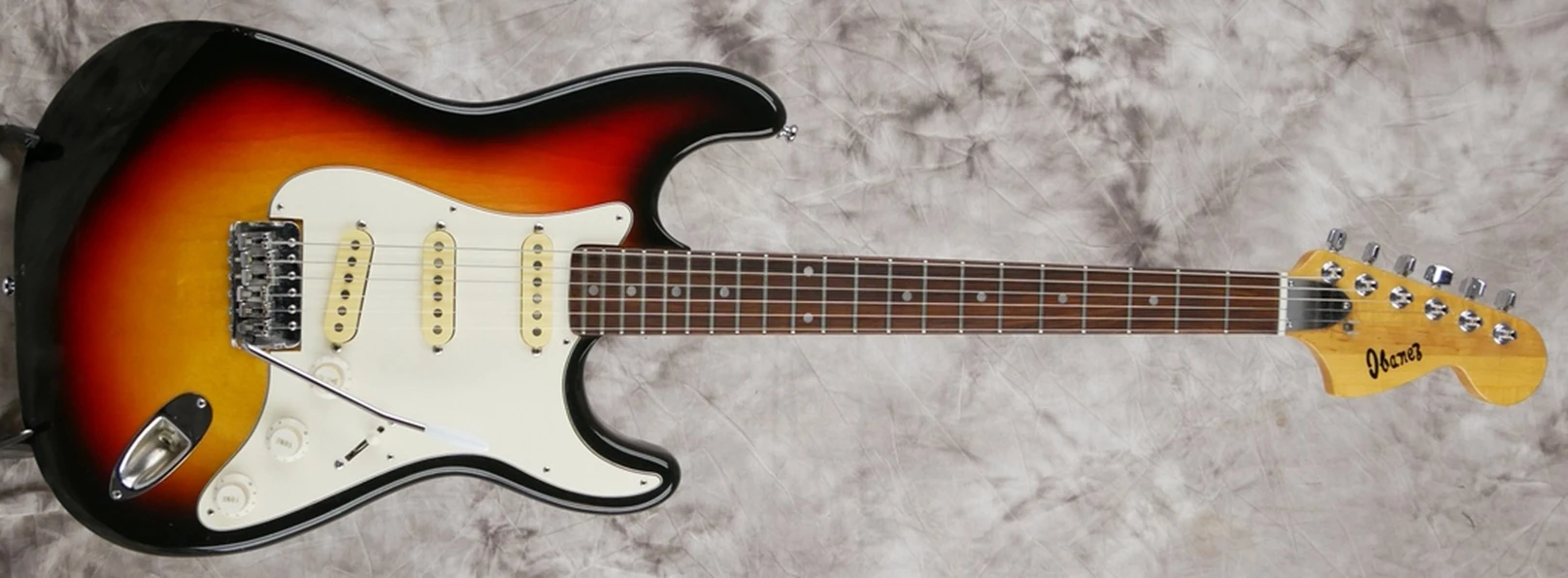

Ibanez 2375 sunburst rosewood fretboard
Sunburst (rosewood fretboard)

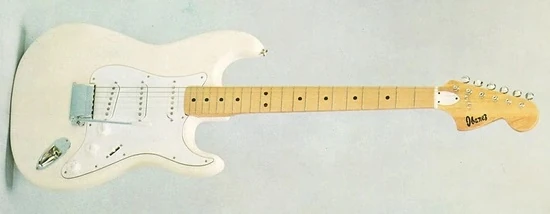

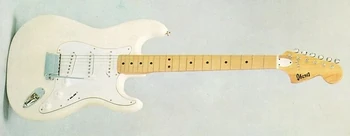

1976 2375W
White
Additional details

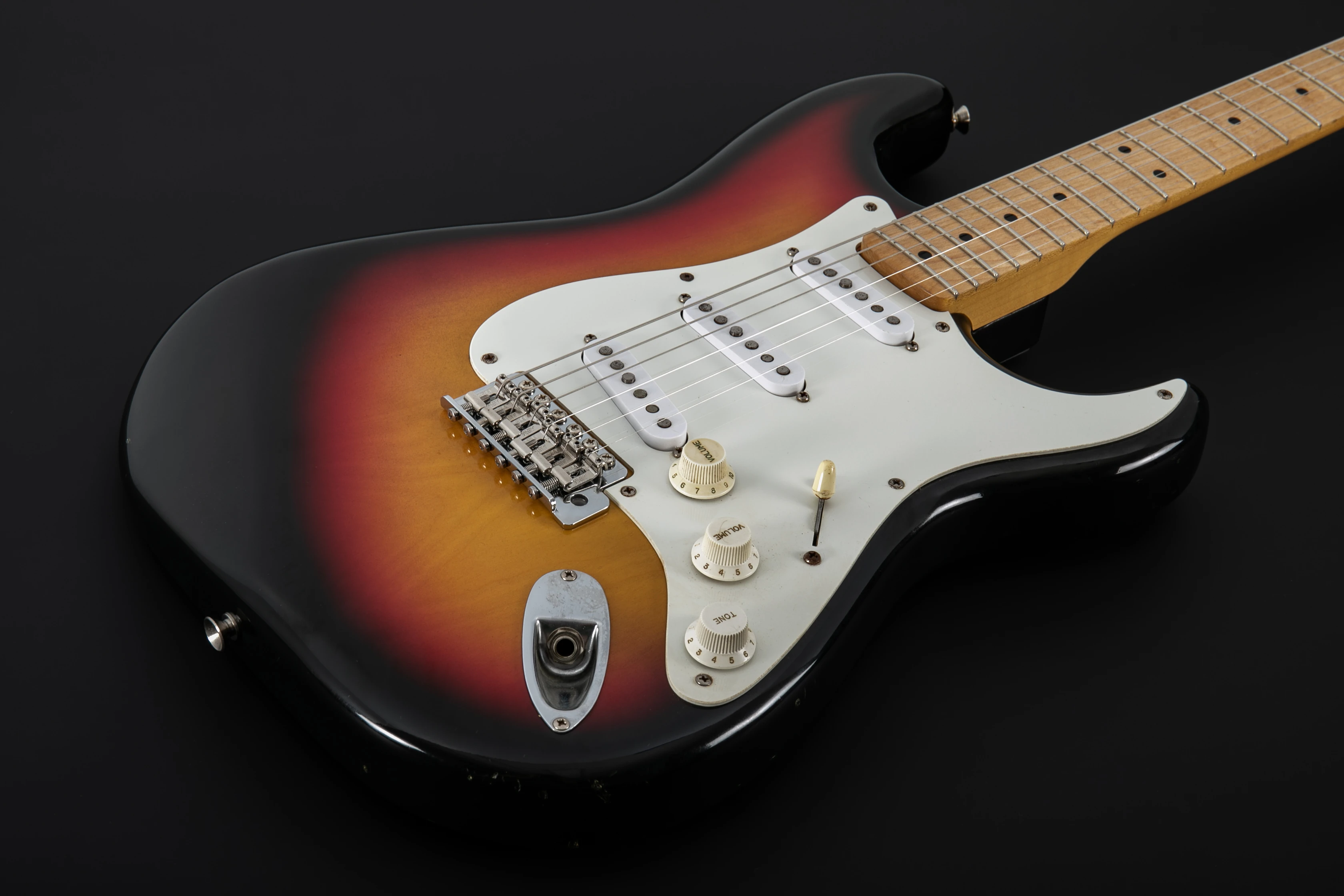

2375 Body
Body front (BCS finish)

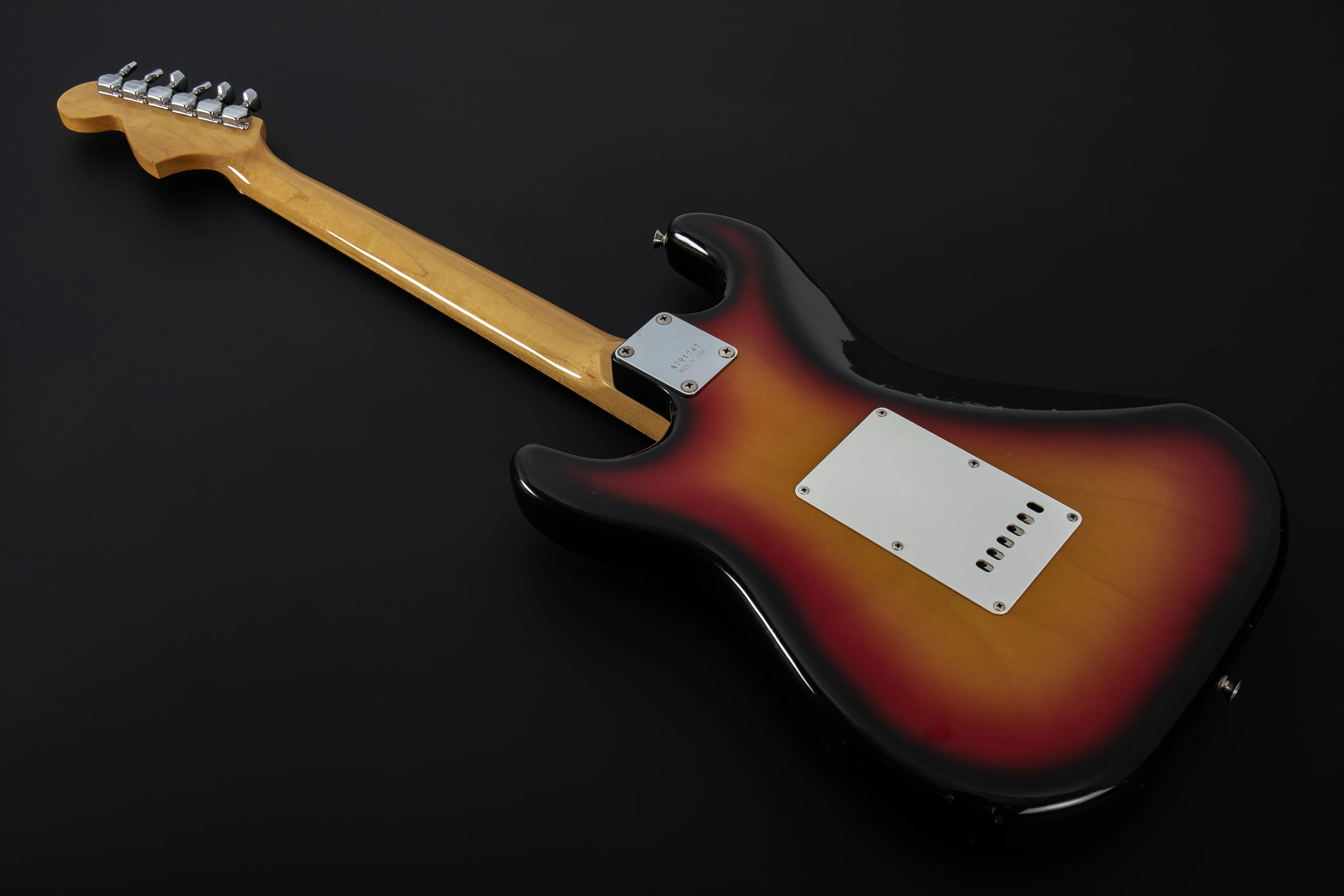

2375 Rear
Body rear (BCS finish)

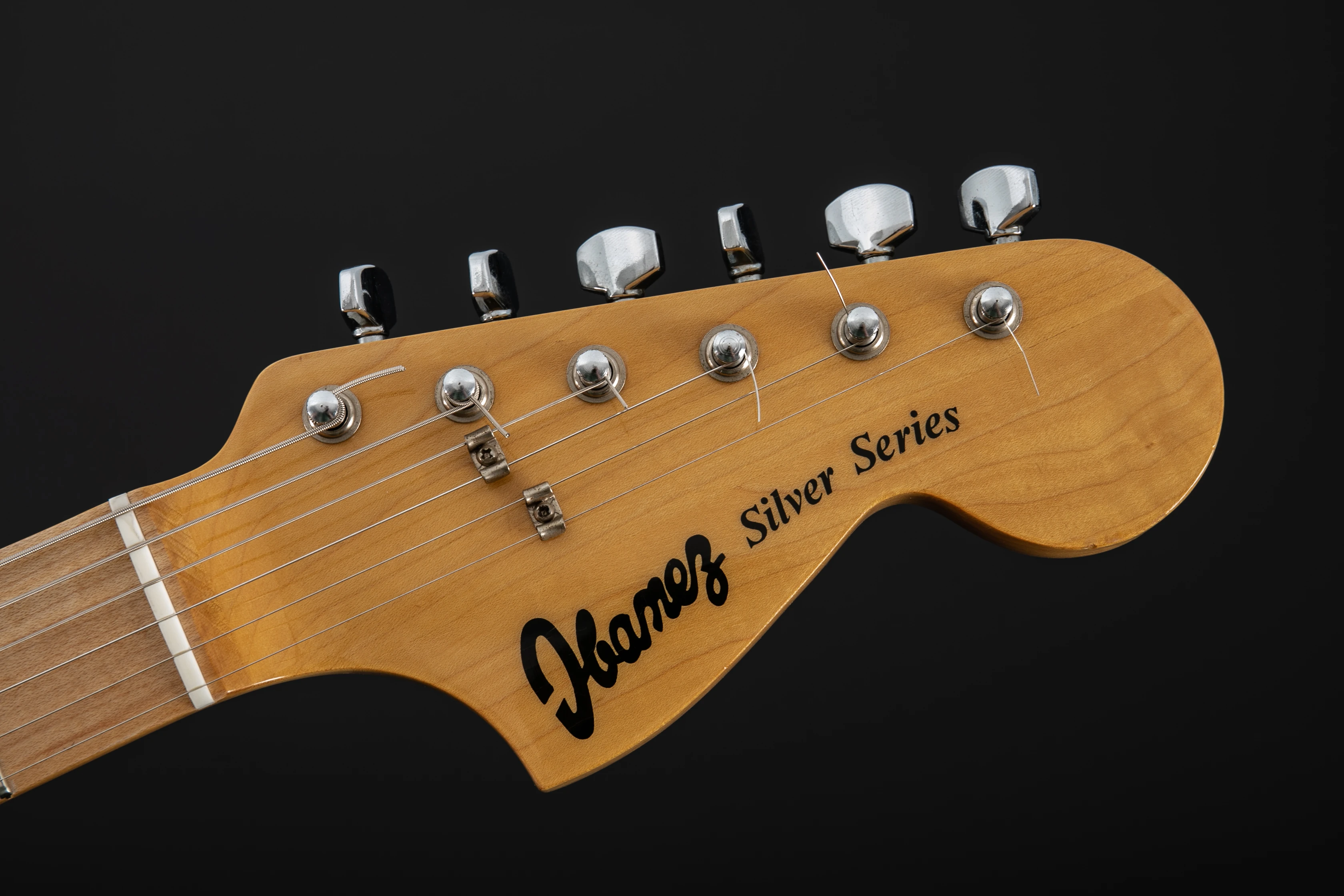

2375 Headstock
Headstock

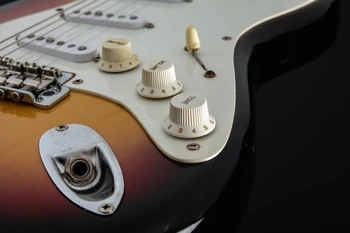

2375 Controls
Controls

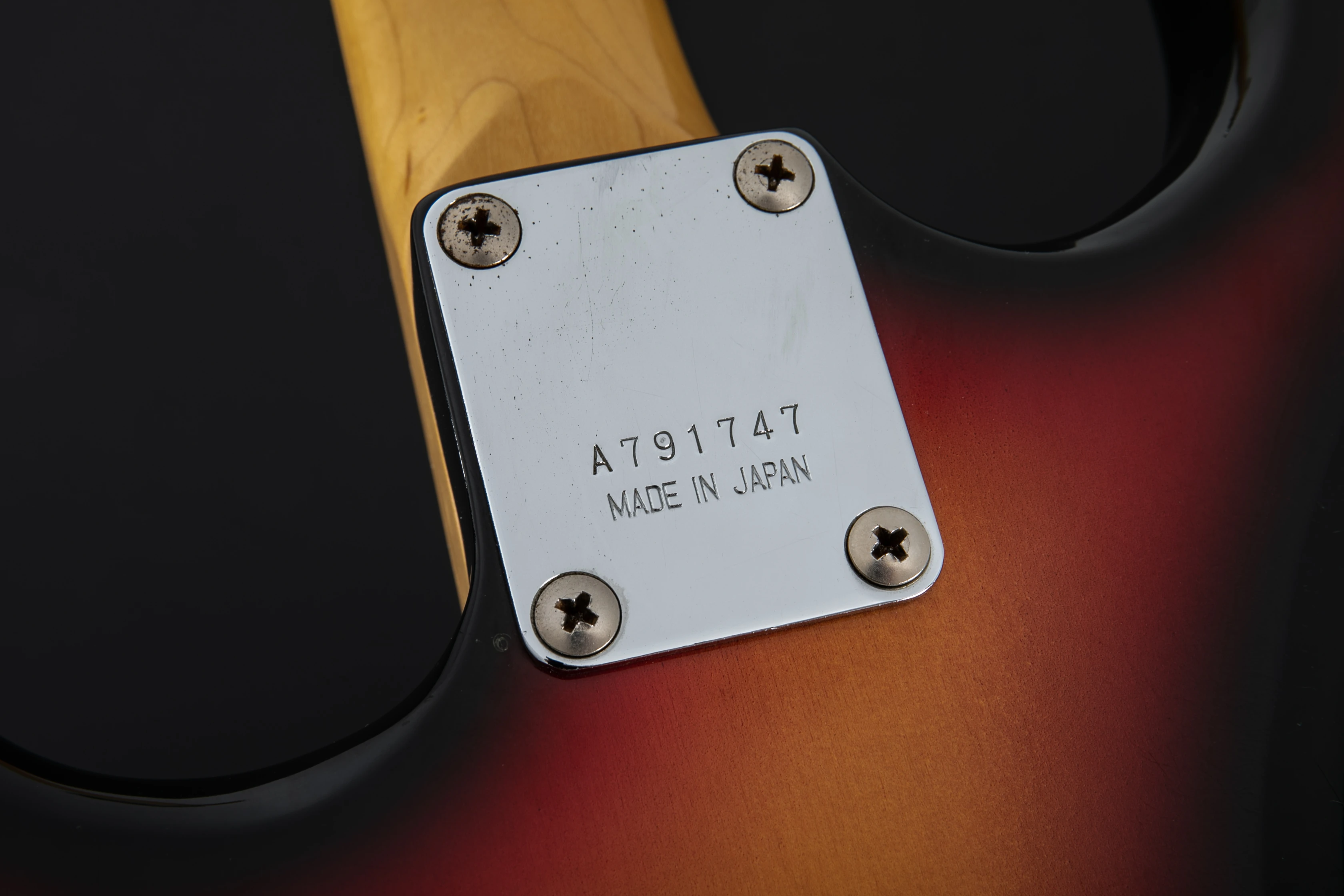

2375 Serial Number
Serial number
