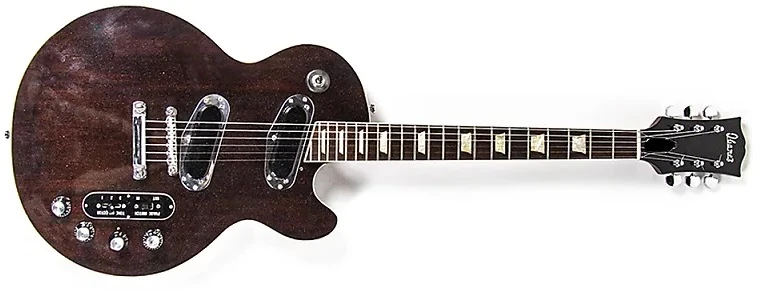

1971 Ibanez 2372-MH
2372 Mahogany Red copyright sprite

The 2372 is a Gibson Les Paul style guitar model introduced by Ibanez in 1971. It was crafted in Japan by FujiGen.

The 2372 features a single cutaway solid body with contoured top with natural mahogany finish bolted to a mahogany detachable neck with a 22-frets rosewood fingerboard with fancy pearloid position markers, white bound edges and a black side dots. Components includes a Tune-o-matic style fixed bridge with a stop tailpiece, a pair of King Tone low impedance singel coil pick ups, a white pickguard, individual chrome plated machine heads.

The 2372DX is a similar model with gold hardware.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2372
Model name: 2372
Year(s) offered: 1971-1974
Sold in: Europe / USA
Made in: Japan
Finish(es): Mahogany (MH)
Body
Body type:
Solid body
Body material:
Mahogany
Body dimensions:
  Length: 18¾"
  Width: 14"
  Depth: 2"
Neck joint:
Bolt-on
Bridge:
Tune-o-matic (fixed) w/ stop tailpiece
Knob style:
Top Hat (black w/ white top)
Hardware color:
Chrome
Neck
Neck type:
C profile
Neck material:
1-piece mahogany
Scale length:
628mm / 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Fancy pearloid
Frets:
22
Nut:
Bone (43mm)
Machine heads:
Smooth Tuner (chrome)
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
King Tone (S) low impedance
Neck pickup:
King Tone (S) low impedance
Controls:
Volume / Tone / Treble / Bass / 3-way toggle switch / Phase Switch / 3-way tone selector
Output jack:
¼" mono
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
