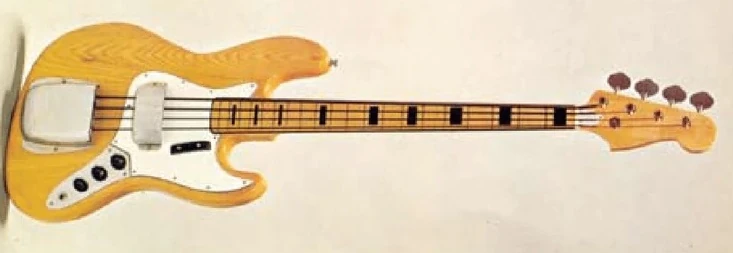

1974 Ibanez 2365B-ASH
2365B-ASH Natural (more images) Red copyright sprite

The 2365B-ASH is a solid body electric bass model introduced by Ibanez for 1972. It was produced in Japan. It's visually similar to Fender's Jazz bass model.

The 2365B-ASH features double cutaway figured solid ash body bolted to a hard laminated maple neck with a 20-fret maple fingerboard with black block position markers and a matching headstock. Components include a pair of Ibanez™ JB-Sound pickup's in the neck and bridge positions, a fixed bridge with a cover plate, a white pickguard with a black plastic tug bar, a plastic nut and chrome plated individual tuning machines.

For 1976 the name was changed to 2365B-AS and the bridge cover plate was removed.

The 2365B is a similar model with mahogany body and rosewood fingerboard with pearloid inlays. The 2365BN is a similar model with a natural maple finish.

The 2365B-ASH was discontinued after 1976.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2365B-ASH, 2365B/ASH, 2365B-AS
Model name: 2365B-ASH, 2365B/ASH, 2365B-AS
Year(s) offered: 1972-1976
Sold in: Europe / USA
Made in: Japan
Finish(es): Natural (NT)
Body
Body type:
Solid body
Body material:
Figured solid ash
Body dimensions:
  Length: 510mm/ 20"
  Width: 356mm/ 14"
Neck joint:
Bolt-on
Bridge:
fixed w/ cover plate (19mm string spacing)
Pickguard:
white w/ black plastic tug bar
Knob style:
3 plastic (black)
Hardware color:
Chrome plated
Neck
Neck material:
3-piece maple
Scale length:
851mm/ 33.5"
Fingerboard material:
Maple
Fingerboard inlays:
Black blocks
Frets:
20 / medium
Nut:
plastic (41mm)
Machine heads:
chrome plated
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Pickup configuration:
JJ
Bridge pickup:
Ibanez JB-Sound (J)
Neck pickup:
Ibanez JB-Sound (J)
Controls:
2 Master volume / Master tone
Output jack:
¼" mono (top-mounted)

Images[]

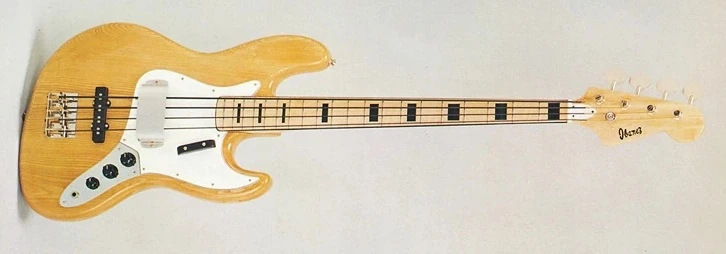

1976 2365B-AS
1976 Ibanez 2365B-AS ( with the bridge cover plate removed ) Red copyright sprite
