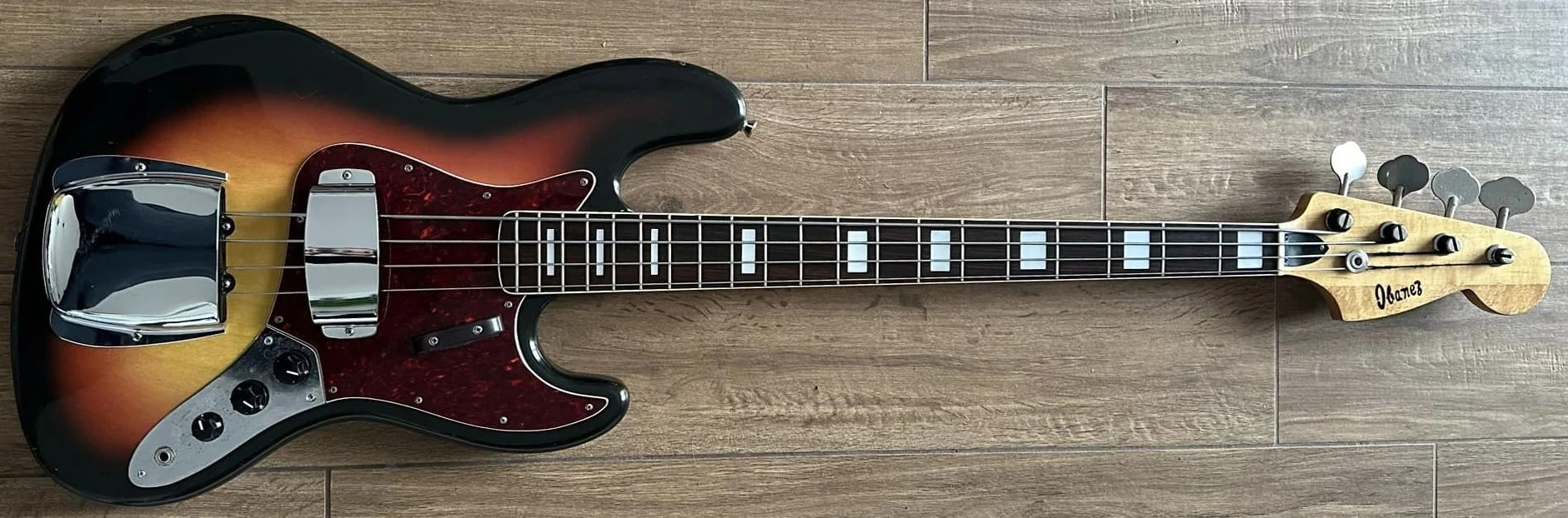

1975 Ibanez 2365B-SB
2365B Sunburst "1975" (more images) Red copyright sprite

The 2365B is a solid body electric bass model introduced by Ibanez for 1971. It was produced in Japan. It's visually similar to Fender's Jazz bass model.

The 2365B features a solid mahogany body with selected birch top bolted to a laminated maple neck with a 20-fret rosewood fingerboard with pearloid block position markers and a maple headstock with a truss rod cover. Components include a pair of JB-Sound pickup's, a fancy laminated pickguard with a wooden finger rest, a bone nut, a standard bridge with chrome plated tailpiece and cover, chrome plated individual machines heads with plastic buttons.

For 1974 a new white finish was added. For 1976 the fingerboard was changed to maple and the fingerboard inlays changed to black blocks. For 1977 a new black finish was added.

The 2365B-ASH is a related model with an ash body. The 2365BN is a related model with a maple body. The 2365BL is a left-handed model.

The 2365B was discontinued after 1977.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2365B
Model name: 2365B
Year(s) offered: 1971-1977
Sold in: Europe / USA
Made in: Japan
Finish(es): Black (BK) 1977 only / Sunburst (SB) / White (WH) 1974 only
Body
Body type:
Solid body
Body material:
Mahogany w/ selected birch top
Body dimensions:
  Length: 20"
  Width: 14½"
  Depth: 1¾"
Neck joint:
Bolt-on
Bridge:
standard w/ tailpiece and cover (19mm string spacing)
Pickguard:
color laminated
Knob style:
3 plastic (black)
Hardware color:
Chrome
Neck
Neck material:
3-piece maple
Scale length:
851mm/ 33.5"
Fingerboard material:
"1971-1975": Rosewood
"1976-1977": Maple
"1977": Rosewood (BK finish)
Fingerboard inlays:
"1971-1975": Pearloid blocks
"1976-1977": Black blocks
"1977": Pearloid blocks (BK finish)
Frets:
20 / medium
Nut:
bone
Machine heads:
"1971-1973": chrome plated w/ plastic buttons
"1974-1977": chrome plated
Electronics/ Strings
Pickup configuration:
JJ
Bridge pickup:
JB-Sound (J) bridge
Neck pickup:
JB-Sound (J) neck
Controls:
2 Volume / Master tone
Output jack:
¼" mono (top mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Available finishes

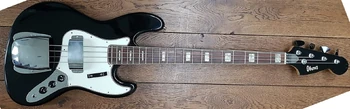

1977 Ibanez 2365B-Black
Black (1977)

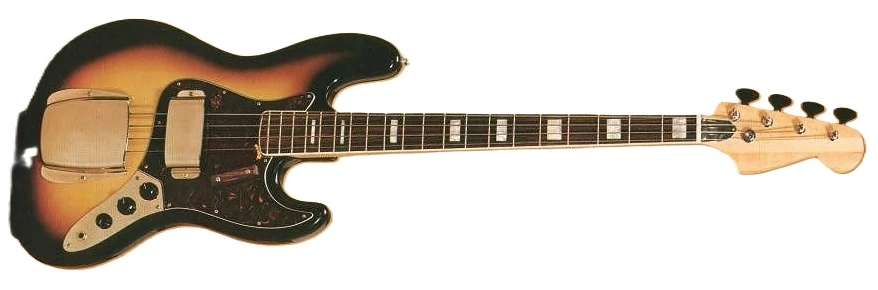

1972 Ibanez 2365B-SB
Sunburst (1971-1972)

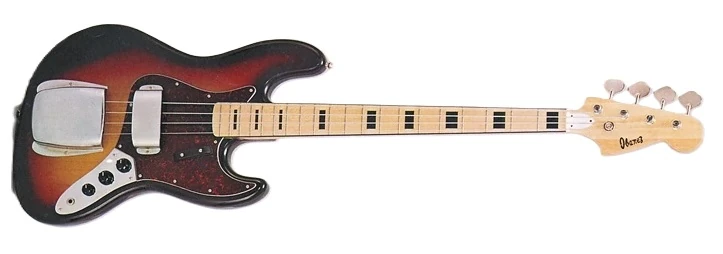

1976 Ibanez 2365B-SB
Sunburst (1976)

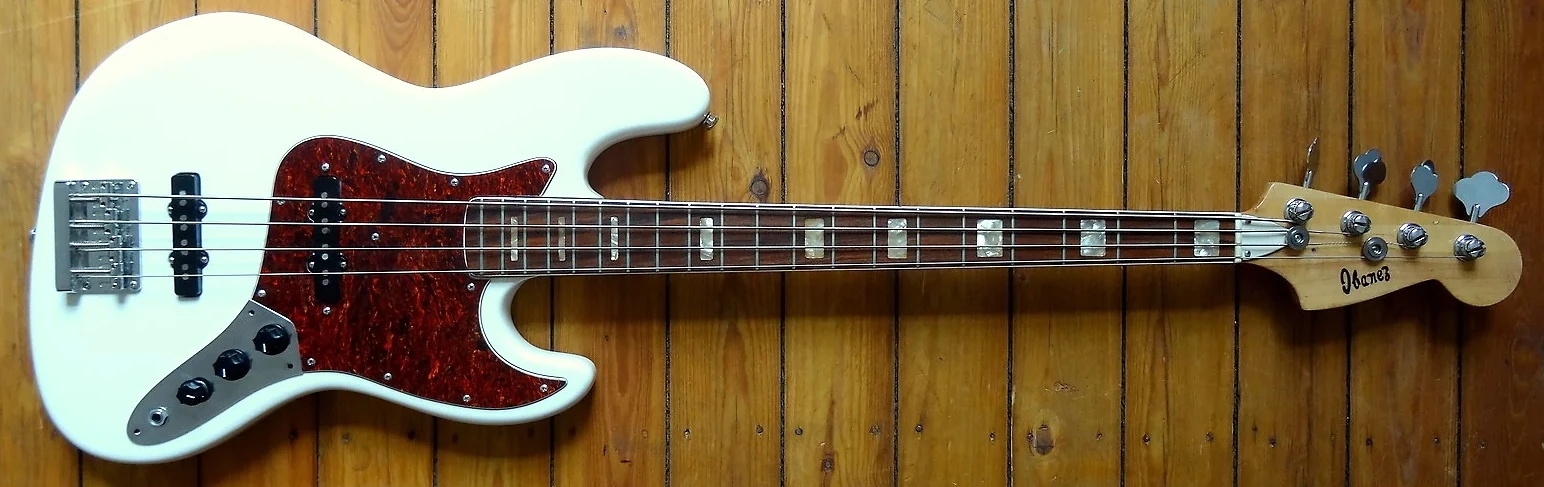

1974 Ibanez 2365B-White
White (1974)
