1971 Ibanez 2365-BS

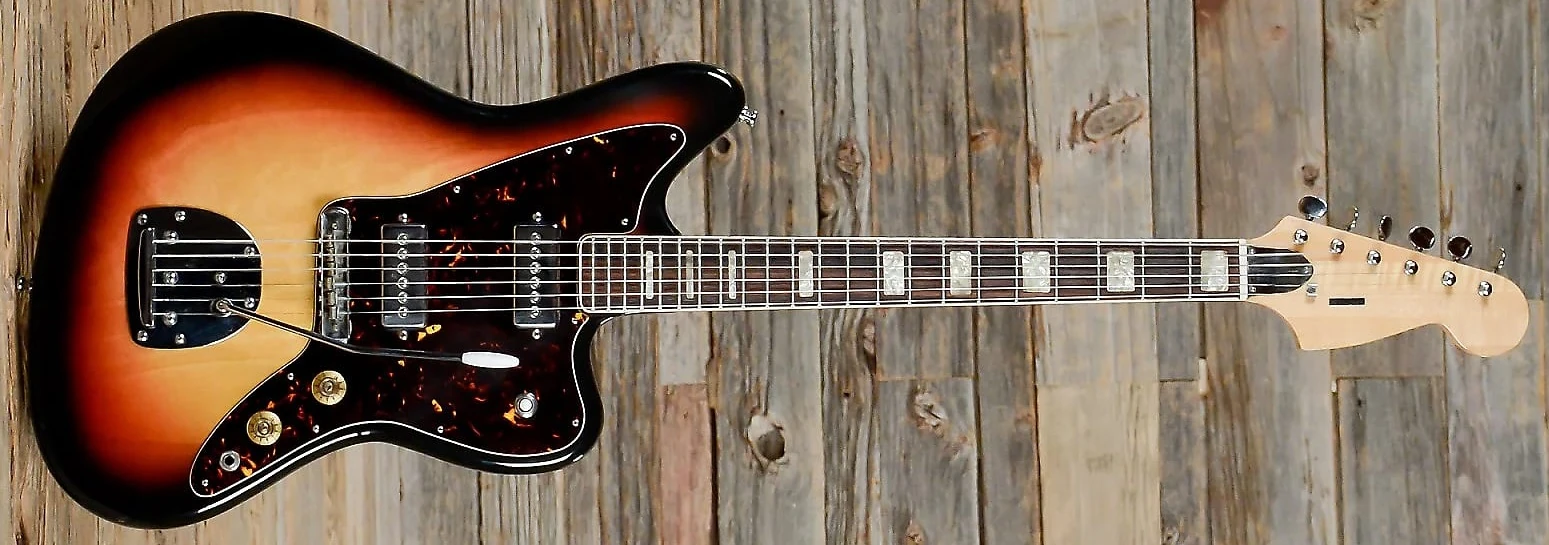

2365 Sunburst (more images) Red copyright sprite

The 2365 is a solid body electric guitar model made by Ibanez for 1971. It was crafted in Japan. It's visually similar to Fender's Jazzmaster model.

The 2365 features double cutaway selected hardwood body with a sunburst finish bolted to a laminated maple neck with a 22-fret rosewood fingerboard with binding, pearloid block position markers and black side dots. Components include a pair of Maxon™ powerfull pickup's in the neck and bridge positions, a jazzmaster tremolo bridge, a fancy laminated pickguard and chrome plated individual tuning machines.

The 2365B is the bass version of this model.

The 2365 was discontinued after 1972.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2365
Model name: 2365
Year(s) offered: 1971-1972
Sold in: Europe / USA
Made in: Japan
Finish(es): Sunburst (SB)
Body
Body type:
Solid body
Body material:
Selected hardwood
Body dimensions:
  Length: 19"
  Width: 14"
  Depth: 1¾"
Neck joint:
Bolt-on
Bridge:
Jazzmaster tremolo
Pickguard:
Fancy (laminated)
Knob style:
Top hat (gold)
Hardware color:
Chrome
Neck
Neck type:
3-piece maple
Neck material:
Maple (laminated)
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearloid block w/ black side dots
Frets:
22 / medium
Nut:
Bone (41mm)
Machine heads:
Ibanez chrome plated
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
Maxon (S)
Neck pickup:
Maxon (S)
Controls:
Master volume / Master tone / 3-way toggle switch
Output jack:
¼" mono (top mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

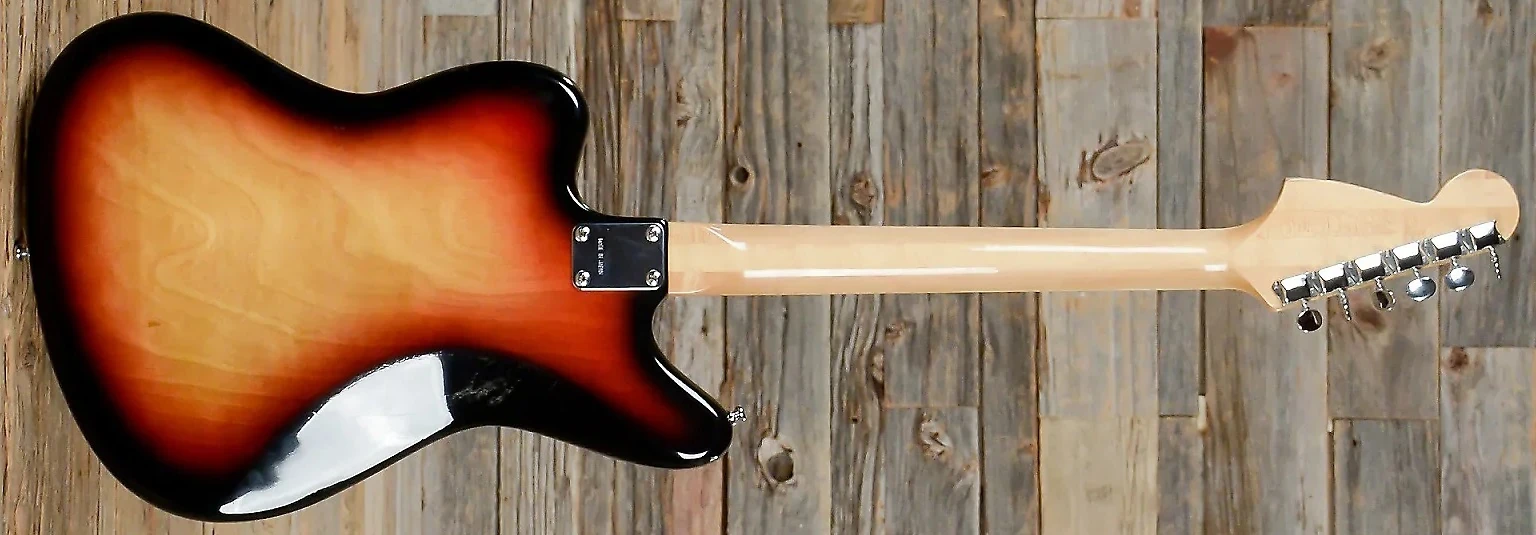

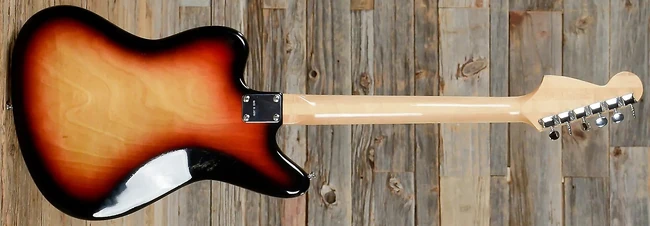

1971 Ibanez 2365-BS rear
1971 Ibanez 2365-SB ( Rear: Selected Hardwood body bolted to a laminated maple neck and chrome plated machine heads ) Red copyright sprite
