1972 Ibanez 2364B

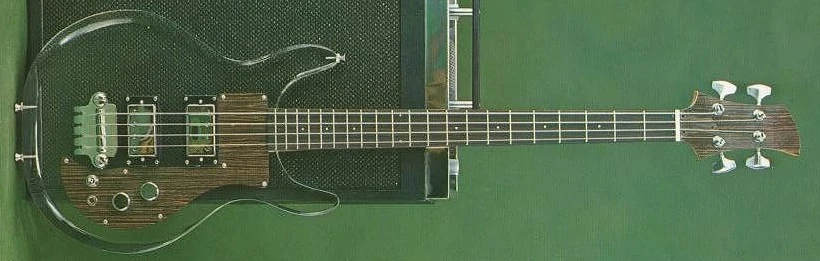

2364B Transparent Red copyright sprite

The 2364B is a solid body electric bass model introduced by Ibanez for 1971. It was produced in Japan. It's visually similar to Dan Armstrong's acrylic bass model.

The 2364B features double cutaway transparent plastic body bolted to a maple neck with a mahagony center with a 21-fret rosewood fingerboard with pearl dot position markers and a matching headstock. Components include a pair of Ibanez™ powerfull humbucker pickup's in the neck and bridge positions, a chrome 2-point fixed bridge with stop tailpiece, a rosewood grain pickguard, a plastic nut and chrome plated individual tuning machines.

Like the guitar models these basses were made at the Fujigen Gakki plant in Japan and were distributed in the US. by Harry Rosenbloom, in Ardmore, Pennsylvania.

The 2364 is the guitar version of this model.

The 2364B was discontinued after 1972.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2364B
Model name: 2364B
Year(s) offered: 1971-1972
Sold in: Europe / USA
Made in: Japan
Finish(es): Transparent
Body
Body type:
Solid body
Body material:
Transparent acrylic
Body dimensions:
  Length: 17"
  Width: 13½"
  Depth: 1¼"
Neck joint:
Bolt-on
Bridge:
2-point fixed (19mm string spacing)
Pickguard:
Rosewood grain
Knob style:
2 chrome
Hardware color:
Chrome plated
Neck
Neck material:
3-piece maple/ mahogany
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dots
Frets:
21 / medium
Nut:
plastic (41mm)
Machine heads:
chrome plated
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Powerfull (H)
Neck pickup:
Ibanez Powerfull (H)
Controls:
Master volume / Master tone / 3-way toggle switch
Output jack:
¼" mono (top-mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
