2354LB WN

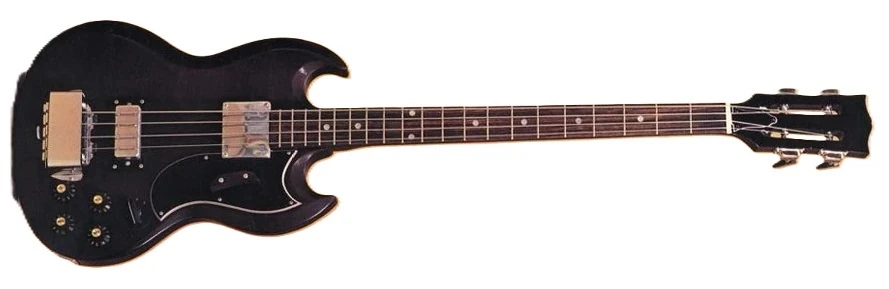

2354LB Walnut (more images) Red copyright sprite

The 2354LB is a solid electric bass guitar model introduced by Ibanez in 1971. It was producedin Japan. It's visually similar to Gibson's EB-0 model.

The 2354LB features a double cut mahogany body with selected bich top bolted to a three-piece maple neck with a medium C profile and a 20-fret ebonized rosewood fingerboard with pearloid dots position markers and an open book headstock. Components include a EB bridge mini-humbucker style at the bridge and a Gibson madbucker style Humbucking pickup on the neck position with individual volume and tone controls and a three-way toggle baritone selector, a Two-point tune-o-matic fixed bridge w/ chrome cover, a small black pickguard with a tug bar, Ibanez tuning machines and chrome hardware

The 2354SB is a similar short scale bass model.

The 2354LB was discontinued after 1977.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2354LB
Model name: 2354LB
Year(s) offered: 1971-1977
Sold in: Europe / USA
Made in: Japan
Price: MSRP: DM 550 (1974) [1] / DM 680 (1976)[2] / US$ 245 (1976) [3] / US$ 269 (1976) [4]
Finish(es): Dark Mahogany (MH) 1971-1972 / Natural (NT) 1975 / Walnut (WN) 1974-1977
Body
Body type:
Solid body
Body material:
Mahogany
Body dimensions:
  Length: 432mm/ 17
  Width: 343mm/ 13½"
  Depth: 44mm/ 1¾"
Neck joint:
Bolt-on
Bridge:
Two-point tune-o-matic bridge w/ chrome cover
Pickguard:
Black w/ tug bar
Knob style:
1 Chickenhead (plastic black) / 4 Witch hat (black w/ silver top)
Hardware color:
Chrome
Neck
Neck type:
Medium C profile
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood (ebonized)
Fingerboard inlays:
Pearloid dot
Frets:
20
Nut:
plastic
Machine heads:
Ibanez
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Pickup configuration:
HH
Bridge pickup:
EB bridge mini-humbucker style (H)
Neck pickup:
Bass-Master (Gibson Mudbucker style) (H)
Controls:
2 Volume / 2 Tone / 3-position baritone selector
Output jack:
¼" mono (side mounted)

Images[]

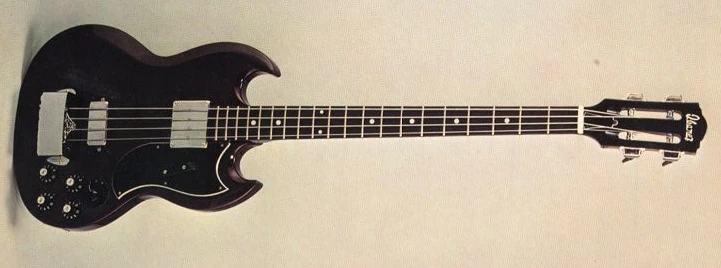

2354LB Dark Mahogany (1971 AD)
1971 Ibanez 2354LB Dark mahogany Red copyright sprite
Additional details

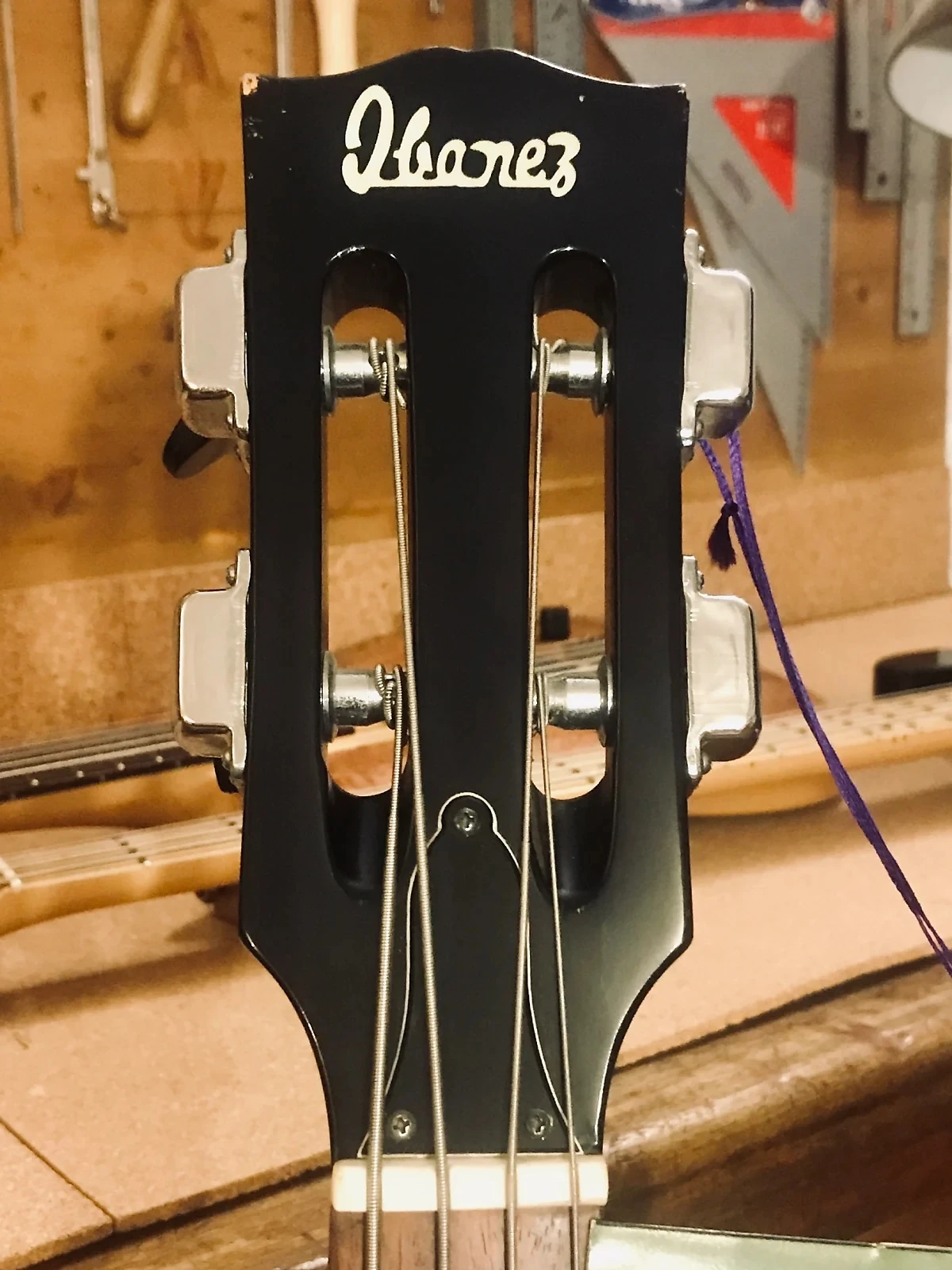

2354LB Headstock
Open book headstock

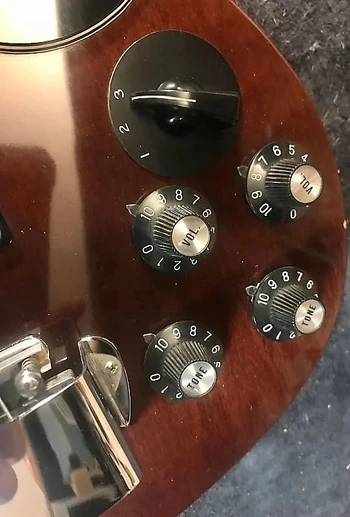

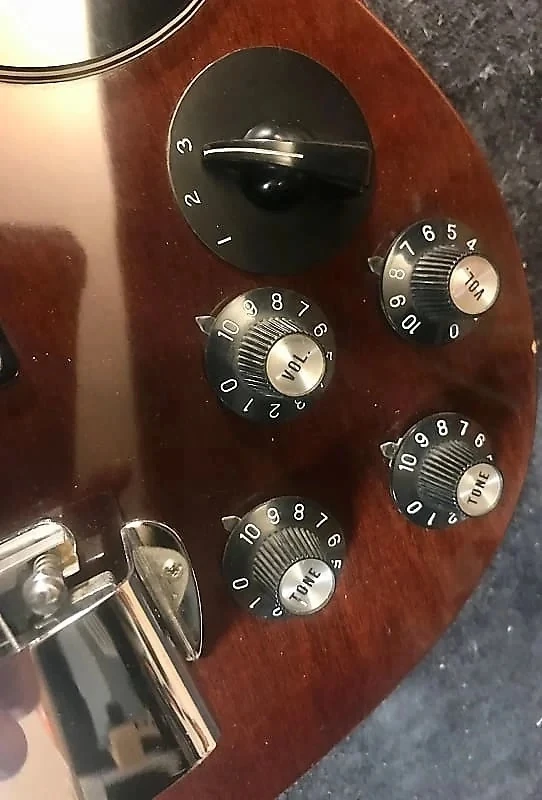

2354LB controls
Controls

Sources[]

  1. 1974 Electrics (p. 3)
  2. 1976 Electric guitar catalog - German (p. 221)
  3. 1976 Chesbro-Ibanez price list (p. 8)
  4. 1976 Ibanez-TAMA Guitar-accessory pricelist (p. 8)
