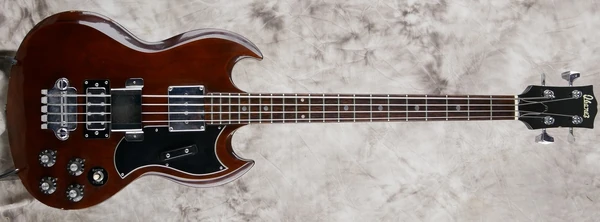

1975 Ibanez 2354B
2354B Walnut (more images) Red copyright sprite

The 2354B is a solid body short scale electric bass model introduced by Ibanez for 1971. It was produced in Japan. It's visually similar to Gibson's EB-0/EB-3 bass model.

The 2354B features a solid mahogany body with selected birch top in dark mahogany finish bolted to a hard laminated birch neck with a 20-fret ebonized rosewood fingerboard with pearloid dot position markers and a black open book headstock with a truss rod cover. Components include a pair of Bass-Master humbucker pickup's with separate polepieces and chrome plated cover, a black pickguard with a plast tug bar, a 2-point Vintage style tailpiece bridge, a plastic nut and chrome plated individual machines heads.

The 2354SB is a related 42½" full length model. 2354LB is a related 45½" full lenght model. The 2354 is the guitar version of this model.

The 2354B was discontinued after 1976.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2354B
Model name: 2354B
Year(s) offered: 1971-1976
Sold in: Europe / USA
Made in: Japan
Finish(es): Dark Mahogany (MH) 1971-1973 / Walnut (WN) 1974-1976
Body
Body type:
Solid body
Body material:
Mahogany w/ selected birch top
Body dimensions:
  Length: 432mm/ 17
  Width: 343mm/ 13½"
  Depth: 44mm/ 1¾"
Neck joint:
Bolt-on
Bridge:
2-point Vintage style tailpiece (19mm string spacing)
Pickguard:
Black w/ plastic tug bar
Knob style:
4 top hat (black w/ white top)
Hardware color:
Chrome
Neck
Neck material:
Hard laminated birch
Scale length:
762mm / 30"
Fingerboard material:
Ebonized rosewood
Fingerboard inlays:
Pearloid dots
Frets:
20 / medium
Nut:
plastic
Machine heads:
chrome plated
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Pickup configuration:
HH
Bridge pickup:
Bass-Master (H) bridge
Neck pickup:
Bass-Master (H) neck
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side-mounted)

Images[]

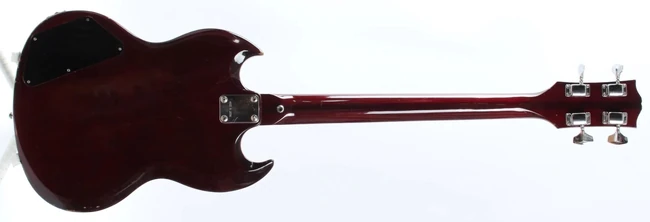

1971 Ibanez 2354B rear
Ibanez 2354B ( Rear: Mahogany body bolted to a hard laminated birch neck with chrome plated machine heads ) Red copyright sprite
Additional details

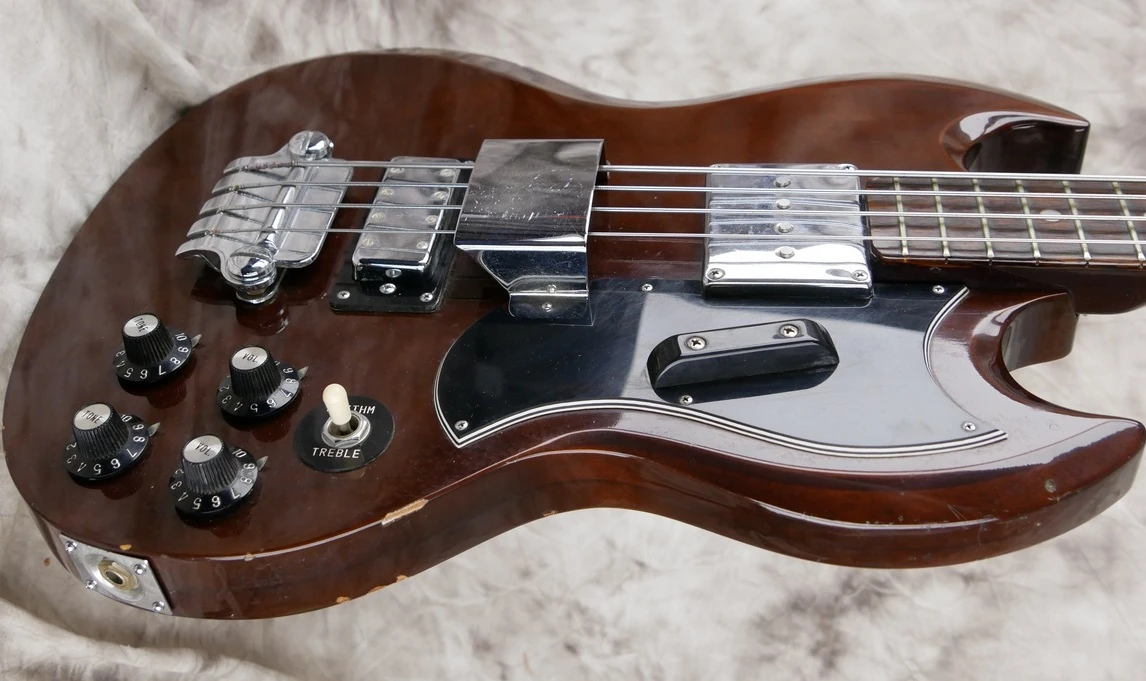

Ibanez 2354B top
Top of body
