Ibanez 2354

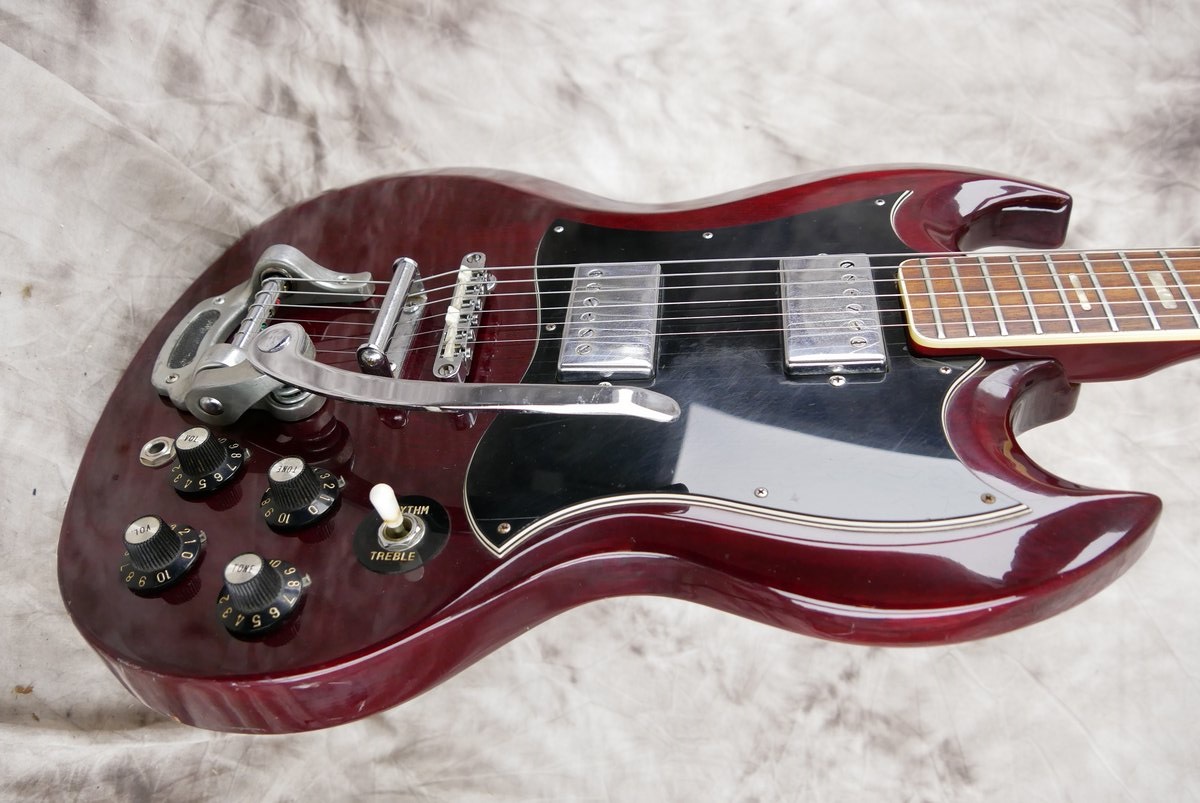

2354 Cherry "1972" (more images) Red copyright sprite

The 2354 is a SG Standard style guitar model introduced by Ibanez in 1971. It was crafted in Japan.

The 2354 features a double cut Gibson SG style mahogany body bolted to a three-piece maple neck with a medium C profile and a 22-fret rosewood fingerboard with peraloid block position markers. Components include a pair of Super 70 Humbucking pickups with individual volume and tone controls and a three-way toggle selector, a Bigsby-style vibrato bridge, and Ibanez tuning machines.

For 1973 the fretboard was changed from having the rounded end (as shown in the image at top) to having a squared end.

The 2354S is a similar model with a fixed bridge.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2354
Model name: 2354
Year(s) offered: 1971–1977
Sold in: Europe / USA
Made in: Japan
Price: MSRP: DM 495 "1974"
Finish(es): Cherry (CH) / Walnut (WN) / Yellow (YE)
Body
Body type:
Solid body
Body material:
Mahogany
Body dimensions:
  Length: 17"
  Width: 13¼"
  Depth: 1½"
Neck joint:
Bolt-on
Bridge:
Bigsby-style vibrato
Pickguard:
Black
Knob style:
Plastic top hat (black)
Hardware color:
Chrome
Neck
Neck type:
Medium C profile
Neck material:
3-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid block
Frets:
22
Machine heads:
Ibanez
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Humbucking Super 60 (?) (H)
Neck pickup:
Humbucking Super 60 (?) (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (top-mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

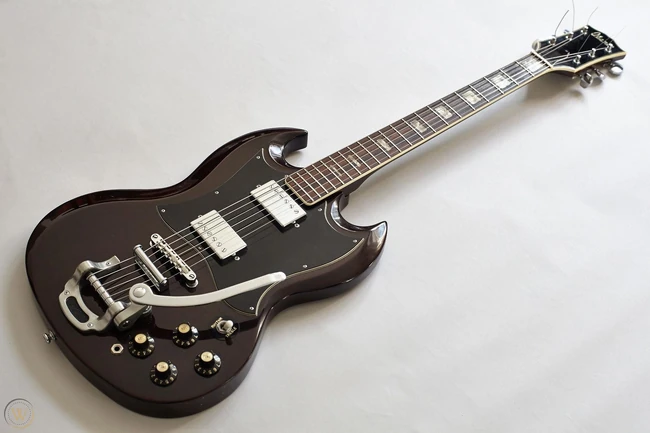

1974-2354
1974 Ibanez 2354 Walnut finish Red copyright sprite
Additional details

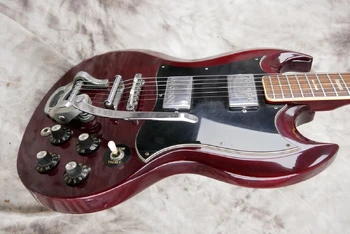

2354 front
Front of body

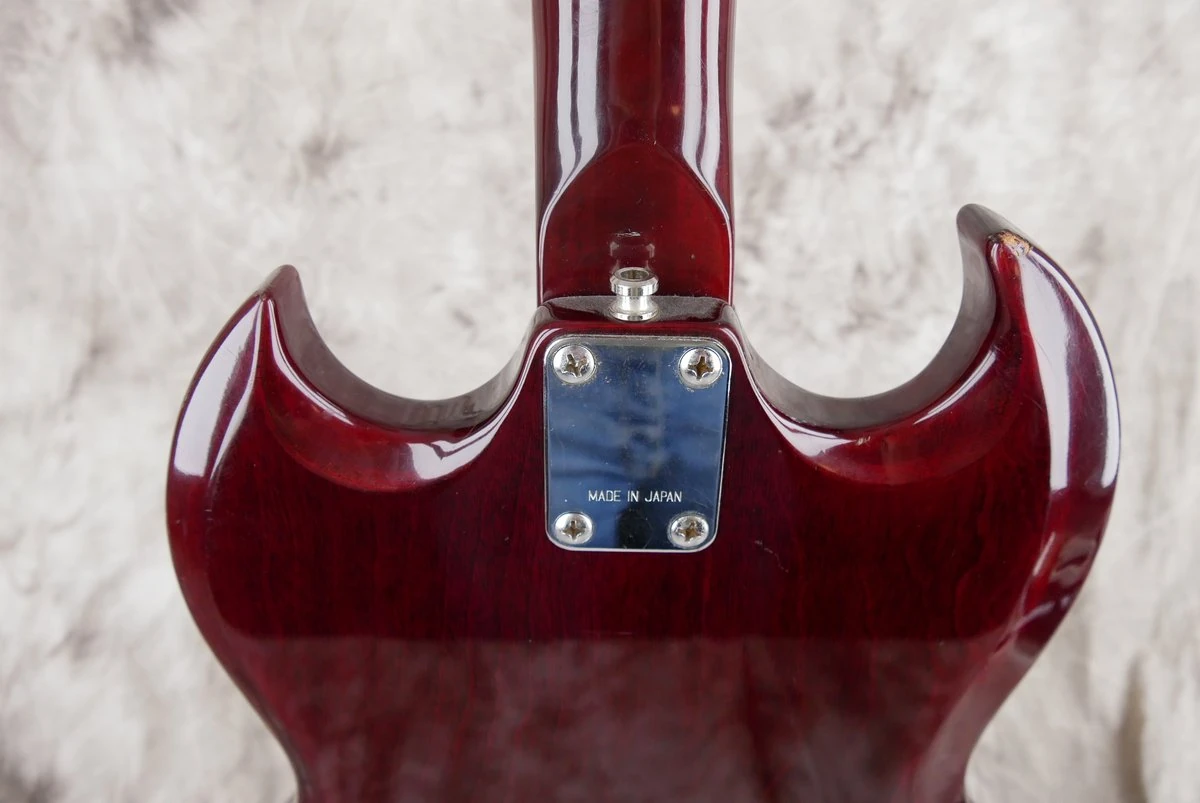

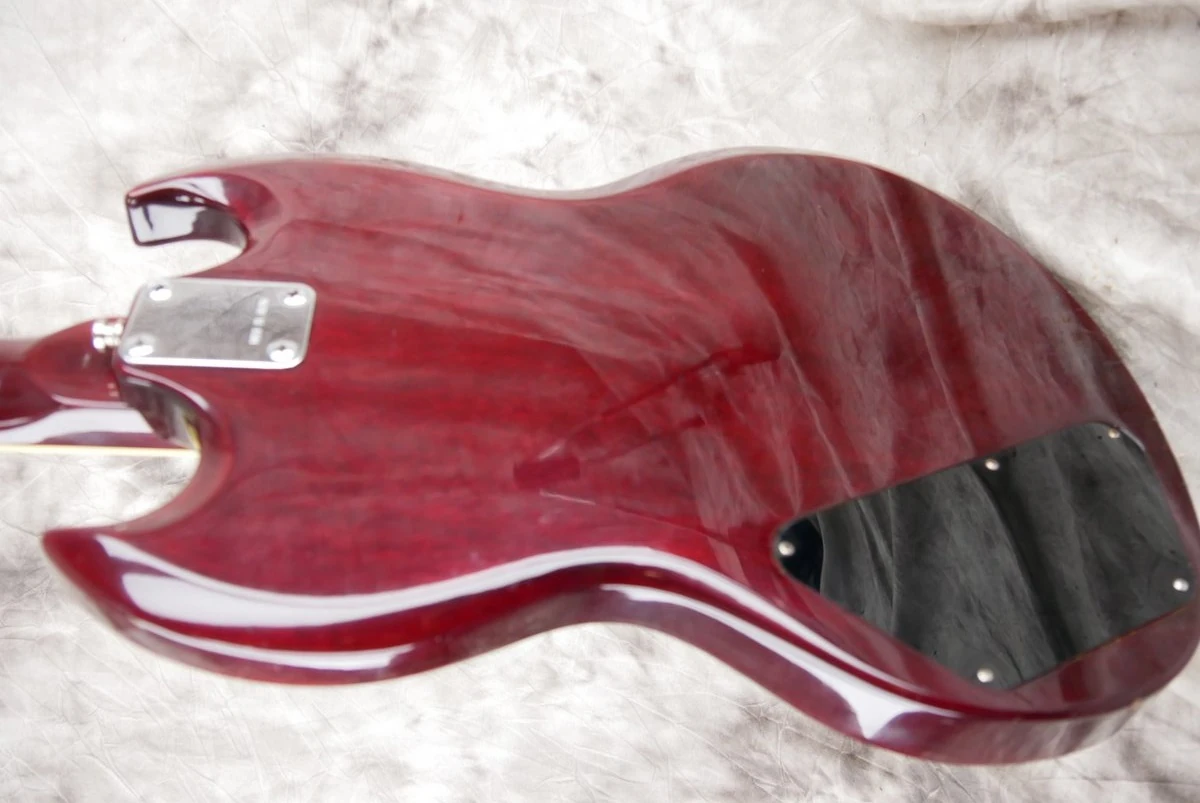

2354 rear
Rear of body

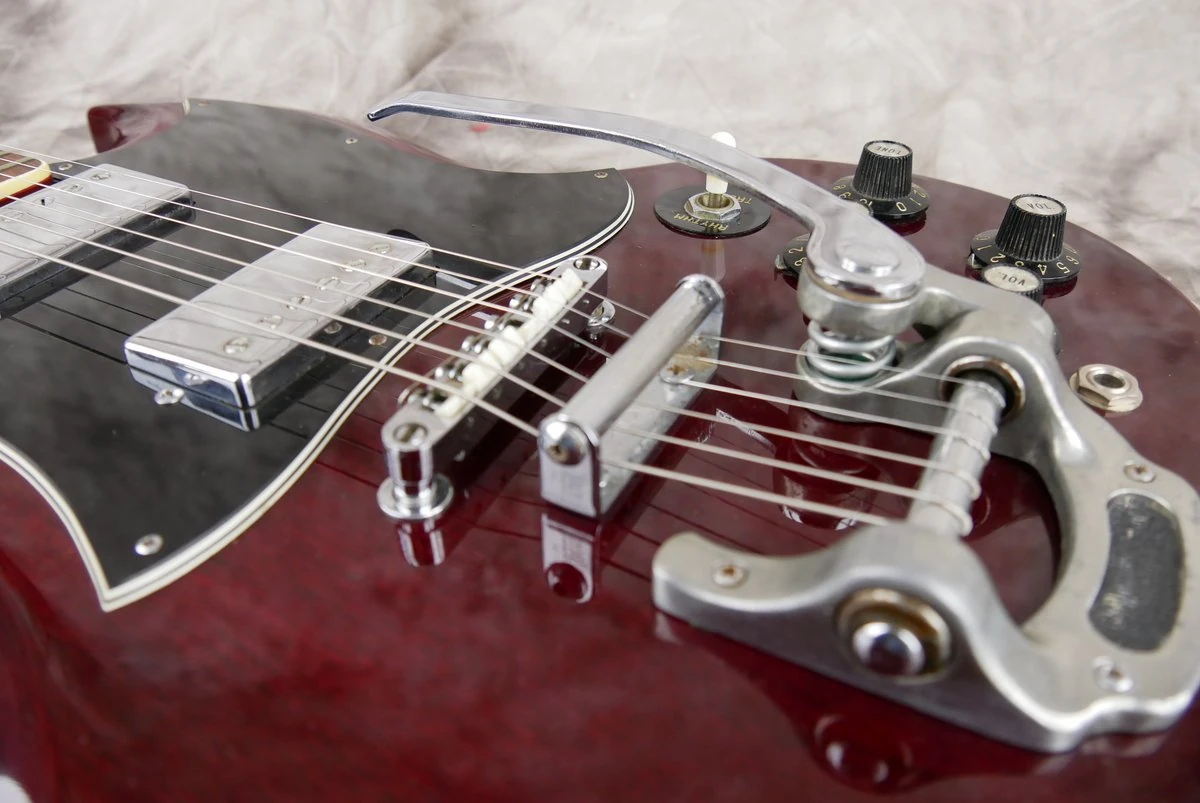

2354 Trem
Bigsby vibrato

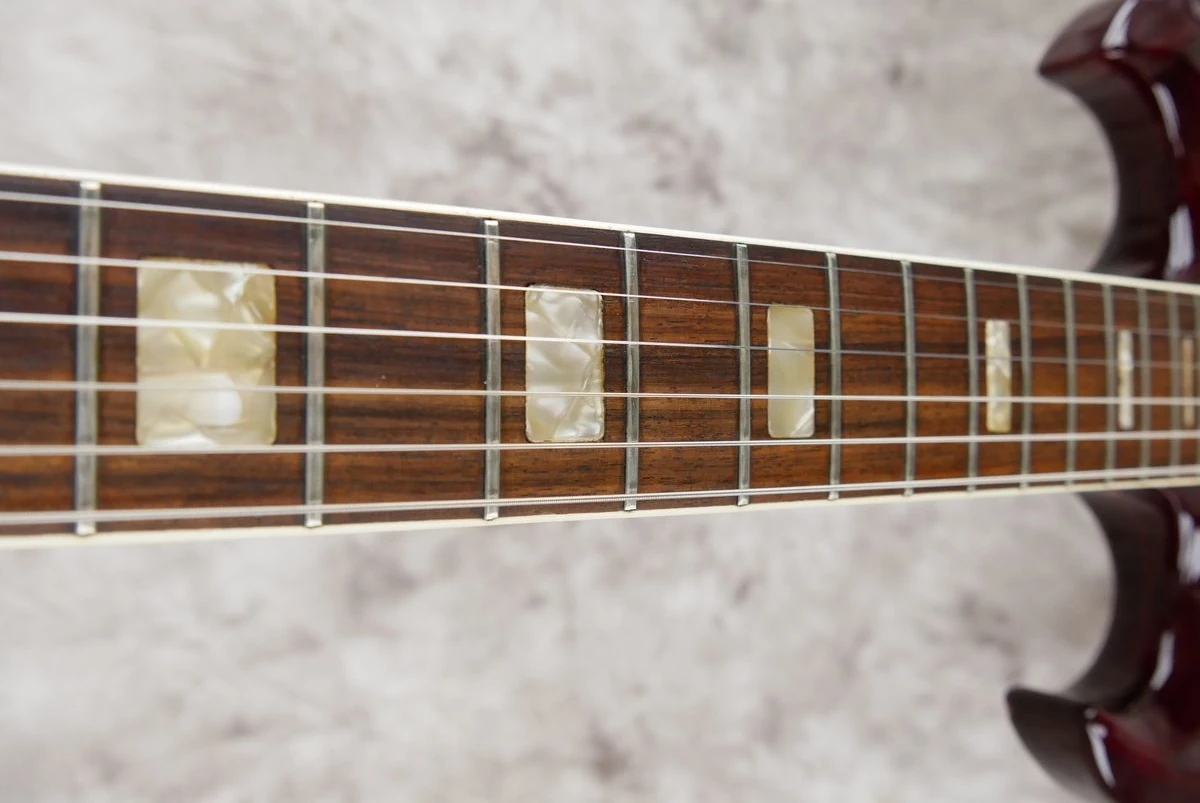

2354 Frets
Pearloids blocks

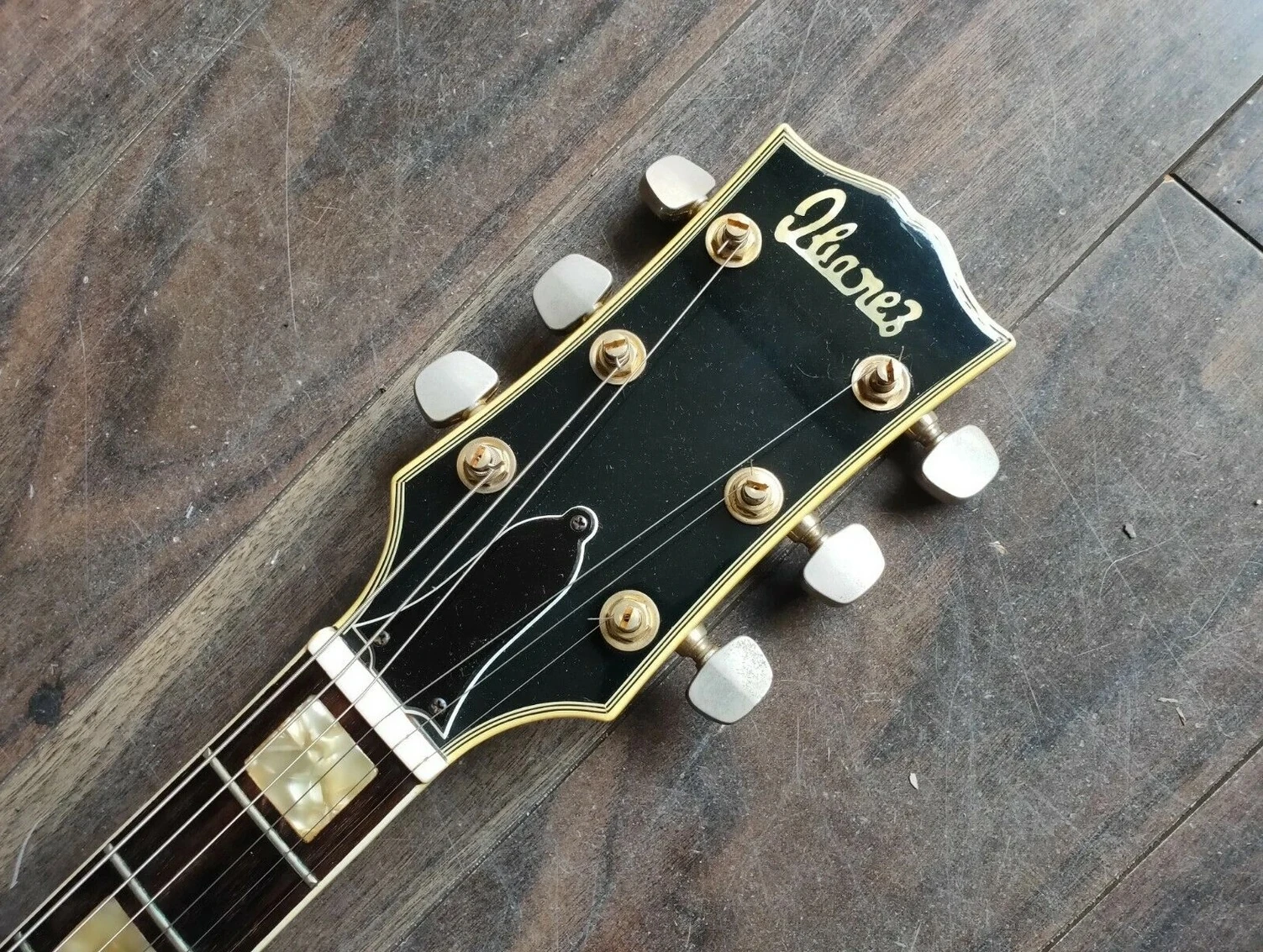

2354 Headstock
Headstock

Video[]

Ibanez SG 2354 Yellow (1975)
