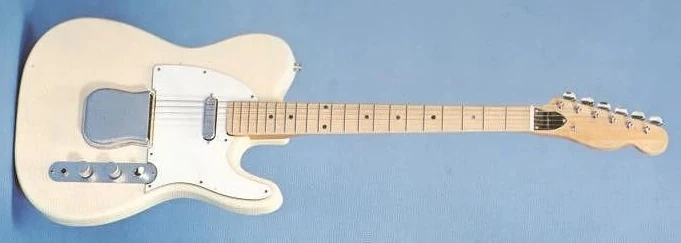

1972 Ibanez 2352-IV
2352 Ivory "1971-1975" (more images) Red copyright sprite

The 2352 is a Telecaster style guitar model introduced by Ibanez in 1971. It was crafted in Japan by FujiGen.

The 2352 features a singel cutaway Fender Telecaster style body with selected birch top on mahogany body in ivory finish bolted to a hard laminated maple neck with a 21-fret maple fingerboard with black dot position markers, black side dots and a matching headstock. Components includes a top loading "Ashtray" bridge with adjustable saddles, a pair of TC-Sound singel-coil pickups, a bone nut, fancy white pickguard and individual chrome plated machine heads.

For 1976 the output was mounted on the side of the body.

The 2368 is a related semi-hollow model with one ƒ hole on the top. The 2352CT is a related model with black pickguard and other pickups. The 2352DX is a related model with a pair of humbuckers and different headstock. The 2353L is the bass model version.

The 2352 was discontinued after 1976.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2352
Model name: 2352
Year(s) offered: 1971-1976
Sold in: Europe / USA
Made in: Japan
Finish(es): Ivory (IV)1971-1975 / Blonde 1976
Body
Body type:
Solid body
Body material:
Mahogany w/ selected birch top
Body dimensions:
  Length: 16"
  Width: 13"
  Depth: 2"
Neck joint:
Bolt-on
Bridge:
Top load w/ adjustable saddles
Pickguard:
fancy white
Knob style:
Tek Grip knob (chrome)
Hardware color:
Chrome
Neck
Neck type:
Slim C
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dots w/ black side dots
Frets:
21 / medium
Nut:
Bone (43mm)
Machine heads:
Ibanez
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
TC-Sound (S) hi-fidelity
Neck pickup:
TC-Sound (S) hi-fidelity
Controls:
Volume / Tone / 3-way tone selector
Output jack:
"1971-1975": ¼" mono (top mounted)
"1976": ¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Available finishes

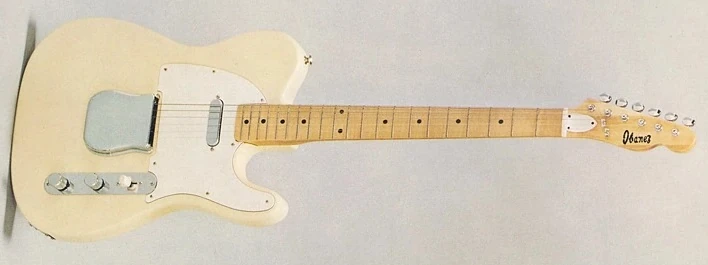

1976 Ibanez 2352-Blonde
Blode "1976"
