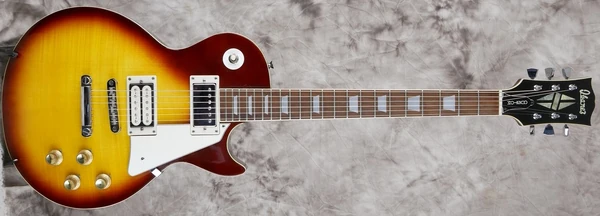

1976 Ibanez 2351M-BS
2351M Brown Sunburst "1976" (more images) Red copyright sprite

The 2351M is a solid body guitar model introduced by Ibanez in 1971. It was crafted in Japan. It's visually similar to Gibson's Les Paul model.

The 2351M features a single cutaway solid mahogany body with arched contoured maple top and white binding bolted to a hard laminated maple neck with a 22-fret ebonized rosewood fingerboard with pearloid trapezoid position markers, white bound edges and a black headstock. Components includes a chrome stop-bar bridge, a pair of chrome covered Maxon Super 70 humbucking pickup's, a white pickguard and individual chrome plated machine heads with pearloid buttons.

For 1973 the bridge pickup was changed to an uncovered humbucker, the control knobs was changed to golden color and the tuners was changed to full chrome plated.

The 2351 is a related model with gold top and other finishes. The 2351DX is a Deluxe version with gold top.

The 2351M was discontinued after 1976.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2351M
Model name: 2351M
Year(s) offered: 1971-1976
Sold in: Europe / USA
Made in: Japan
Price: MSRP: DM 574 (1974-1975) / DM 770 (1976)
Finish(es): Sunburst (SB) 1971-1972 / Brown Sunburst (BS) 1973-1976
Body
Body type:
Solid body
Body material:
Solid mahogany w/ arched contoured maple top
Body dimensions:
  Length: "1971-1975": 17½" ; "1976": 17¼"
  Width: 12¾ "
  Depth: 2"
Neck joint:
Bolt-on
Bridge:
stop-bar
Pickguard:
White
Knob style:
"1971-1972": Top Hat (black)
"1973-1976": Top Hat (gold)
Hardware color:
Chrome
Neck
Neck material:
3-piece maple hard laminated
Scale length:
628mm / 24¾"
Fingerboard material:
Ebonized rosewood w/ white binding
Fingerboard inlays:
Pearloid trapezoid w/ black side dots
Frets:
22 / medium
Nut:
Bone (43.2mm)
Machine heads:
chrome plated
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
"1971-1972": Maxon Super 70 (H) chrome covered
"1973-1976": Maxon Super 70 (H) uncovered
Neck pickup:
Maxon Super 70 (H) chrome covered
Controls:
2 Volume / 2 Tone / 3 way toggle switch
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

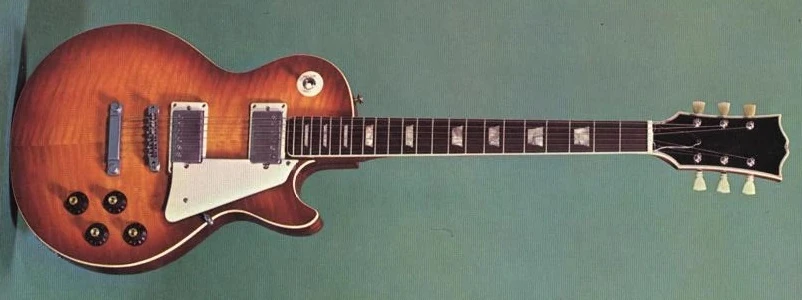

1971 Ibanez 2351M-SB
Sunburst (1971-1972)

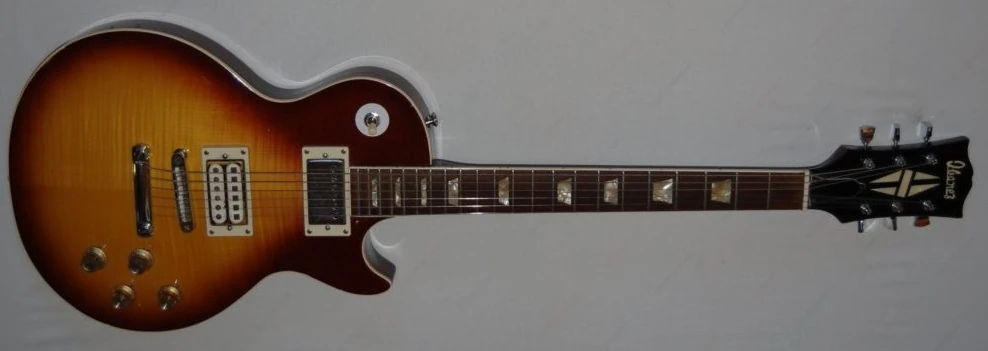

1973 Ibanez 2351M-BS
Brown Sunburst (1973-1975)
