1974 Ibanez 2350 Custom CS
2350 Custom Cherry Sunburst (more images) Red copyright sprite

The 2350 Custom is a Gibson Les Paul style guitar model introduced by Ibanez in 1973. It was crafted in Japan by FujiGen. It is also know as the 2350CS

The 2350 Custom features a Single Cut Gibson LP style Arched birch top with mahogany body bolted to a hard laminated maple detachabel neck with a 22-frets ebonized rosewood fingerboard with Pearloid block position markers and a black headstock, a black pickguard, Components includes a Tune-o-matic style fixed bridge with a stop tailpiece, a pair of "Maxon"gold plated Super 70 Humbucking pickups , gold hardware and gold machines heads.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2350 Custom / 2350CS
Model name: 2350 Custom / 2350CS
Year(s) offered: 1973-1977
Sold in: Europe / USA
Made in: Japan
Finish(es): Cherry Sunburst (CS)
Body
Body type:
Solid body
Body material:
Mahogany
Body dimensions:
  Length: 17¼"
  Width: 12¾"
Neck joint:
Bolt-on
Bridge:
Tune-o-matic (fixed)
Pickguard:
Black
Knob style:
Top Hat bell (gold)
Hardware color:
Gold plated
Neck
Neck material:
1-piece maple hard laminated
Scale length:
628mm / 24¾"
Fingerboard material:
Ebonized rosewood
Fingerboard inlays:
Pearloid blocks
Frets:
22
Nut:
Bone (43mm)
Machine heads:
Ibanez Custom
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
"Maxon" Super 70 Anti-Hum (H) gold plated
Neck pickup:
"Maxon" Super 70 Anti-Hum (H) gold plated
Controls:
2 Master volume / 2 Master tone / 3-way toggle switch

Images[]

1974 Ibanez 2350 Custom rear
Ibanez 2350CS Custom ( Rear: Mahogany body, bolted to a hard laminated 1-piece maple neck and gold plated machine heads ) Red copyright sprite
Additional details

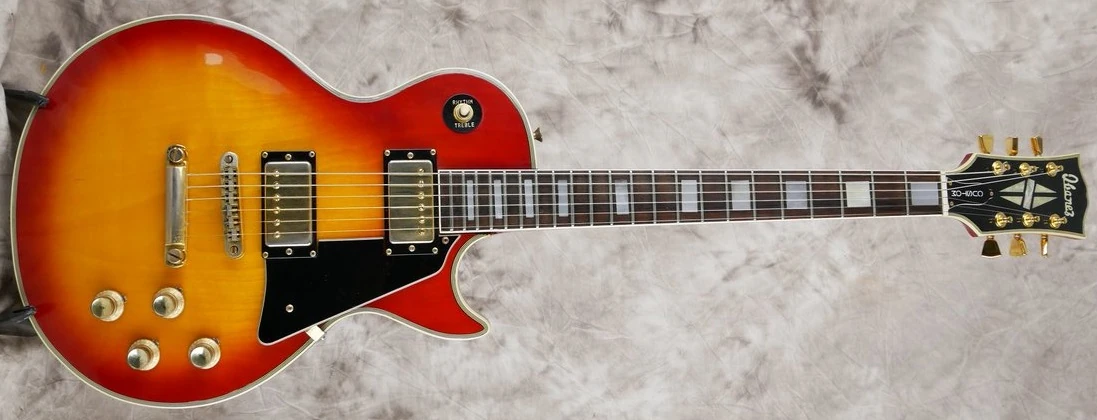

2350-CS front
Front of body
