2337DX

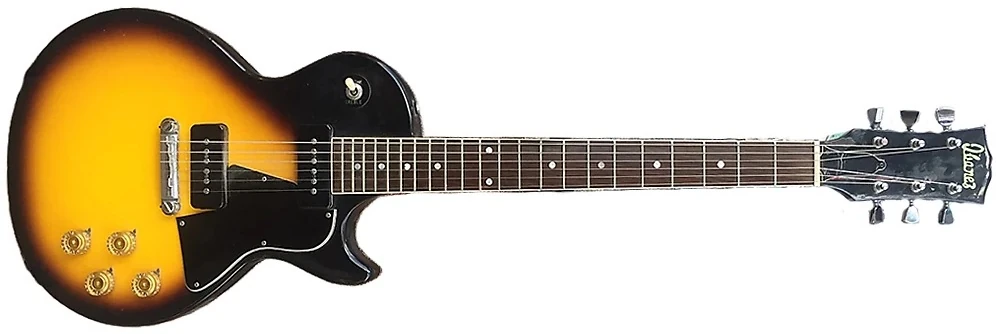

2337DX Brown Sunburst (more images)

The 2337DX is a Gibson Les Paul special style guitar model introduced by Ibanez in 1975. It was crafted in Japan.

The 2337DX features a single cutaway arched birch top body with mahogany on back and sides mated to a set-in laminated maple neck with a 22-frets roewood fingerboard with pearl dot position markers, white bound edges and black side dots. Components includes a chrome bridge with a chrome plated tailpiece, a pair of Power Wound singel-coil pickups, a black pickguard, and chrome plated machine heads.

The 2337DX was discontinued after 1976.

Specifications[]

Related content: Copy models |

Specifications for 2337DX

Model name: 2337DX

Year(s) offered: 1975-1976

Sold in: Europe / USA

Made in: Japan

Finish(es): Brown Sunburst (BS)

Body

Body type:
Solid body

Body material:
Mahogany w/ birch top

Body dimensions:
  Length: 17½"
  Width: 12½"
  Depth: 1¾"

Neck joint:
Set-in

Bridge:
chrome

Tailpiece:
chrome

Pickguard:
Black

Knob style:
Speed (gold)

Hardware color:
Chrome

Neck

Neck material:
3-piece maple laminated

Scale length:
628mm / 24¾"

Fingerboard material:
Rosewood

Fingerboard inlays:
Pearl dots w/ black side dots

Frets:
22 / medium

Nut:
Bone (43.2mm)

Electronics/ Strings

Pickup configuration:
SS

Bridge pickup:
Power Wound (S)

Neck pickup:
Power Wound (S)

Controls:
2 Volume / 2 Tone / 3 way toggle switch

Output jack:
¼" mono (side mounted)

String gauge (factory):
.010/.013/.017/.026/.036/.046

Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

About this table

Images[]

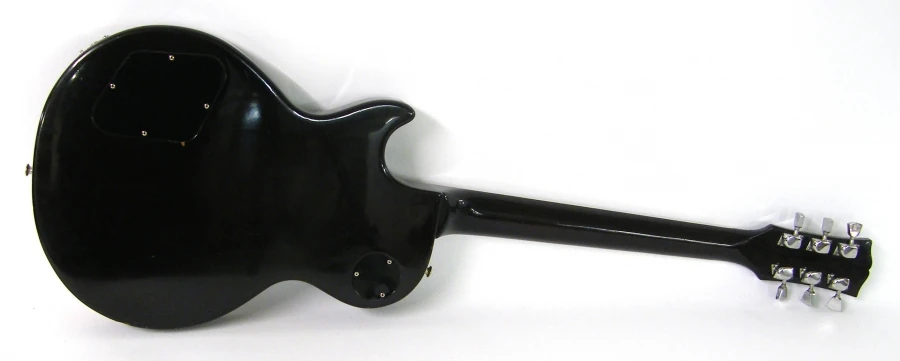

Ibanez 2337DX-BS ( Rear: Mahogany body mated to a Set-in laminated maple neck and chrome plated machine heads )

Sources[]

1975 catalogs (p. 4)
1976 catalogs (p. 8)
