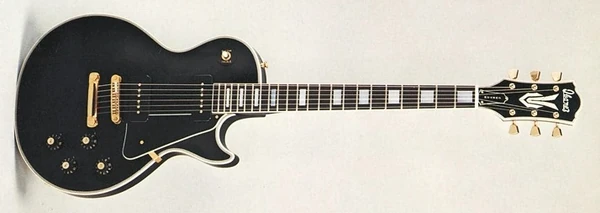

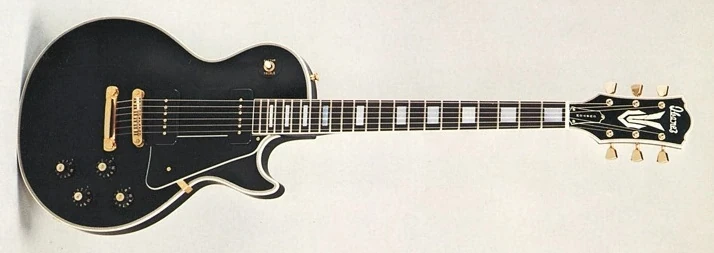

1976 Ibanez 2335-BK
2335 Black Red copyright sprite

The 2335 is a solid body guitar model introduced by Ibanez for 1976. It was made in Japan. It's visually similar to Gibson's Les Paul model.

The 2335 features a single cutaway design mahogany body with arched birch top and jet black finish bolted to a hard laminated maple neck with adjustable truss rod, a 22-fret rosewood fingerboard with mother of pearl block inlays and a black headstock with the Ibanez logo. Components includes a pair of Ibanez Power Wound single-coil pickup's, Tune-O-Matic bridge with gold plated stop-bar tail-piece, individual controls and Smooth tuner gold plated machine heads.

The 2335 was offered only in 1976.

Specifications[]

Related content: Copy models | Models-icon
Specifications for 2335
Model name: 2335
Year(s) offered: 1976
Sold in: Europe / USA
Made in: Japan
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany w/ arched birch top
Body dimensions:
  Length: 17½"
  Width: 12½"
  Depth: 2
Neck joint:
Bolt-on
Bridge:
Tune-O-Matic
Tailpiece:
stop-bar
Pickguard:
black
Knob style:
Witch hat (black w/ gold top)
Hardware color:
Gold
Neck
Neck material:
3-piece maple hard laminated
Scale length:
628mm / 24¾"
Fingerboard material:
Rosewood w/ white binding
Fingerboard inlays:
Mother of pearl blocks w/ black side dots
Frets:
22 / medium
Nut:
Bone (43.2mm)
Machine heads:
Smooth tuner
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
Ibanez Power Wound (S)
Neck pickup:
Ibanez Power Wound (S)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
